Compass Calibration

COMPASS CALIBRATION

One Turn Magnetic Compensation
The compass is self-calibrating under normal driving conditions. It is not necessary to manually calibrate the compass. If manual calibration is desired, follow these instructions.




1. Engine started.
2. Display the compass on the multi-center display.

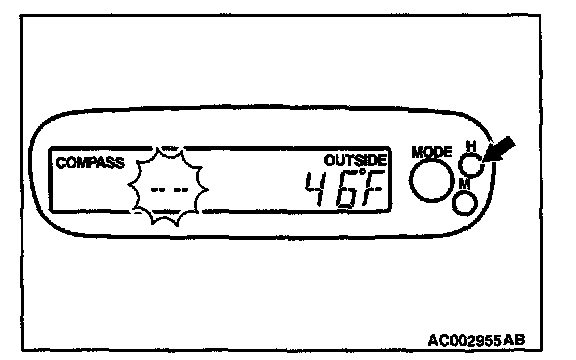

3. Press and hold the "H" switch until "--" appears in the display.
4. Release the switch to enter the calibration mode.

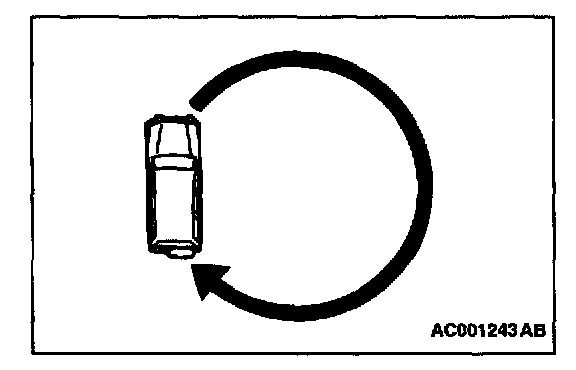

5. Drive very slowly in a circle until "--" disappears.

Deflection Angle Compensation




COMPASS CALIBRATION

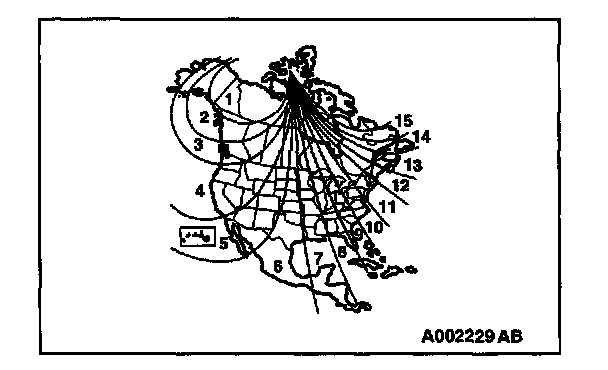

Under certain circumstances, as during a long distance cross country trip, it will be necessary to adjust for compass variance.
Compass variance is the difference between earth's magnetic north and true geographic north.
If not adjusted to account for compass variance, compass could give false readings.
