Evaporator Assembly

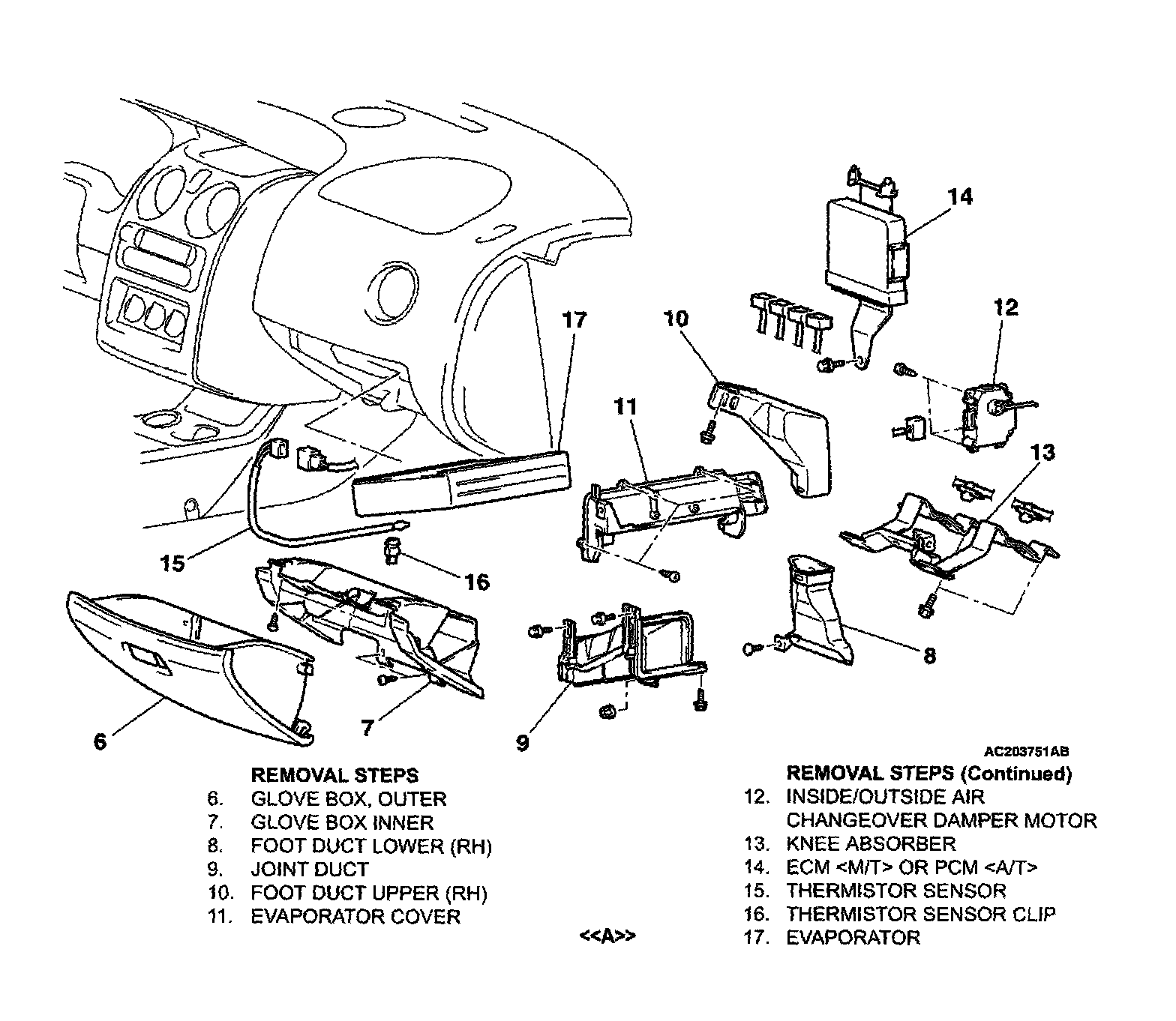

Evaporator Assembly Part 1:

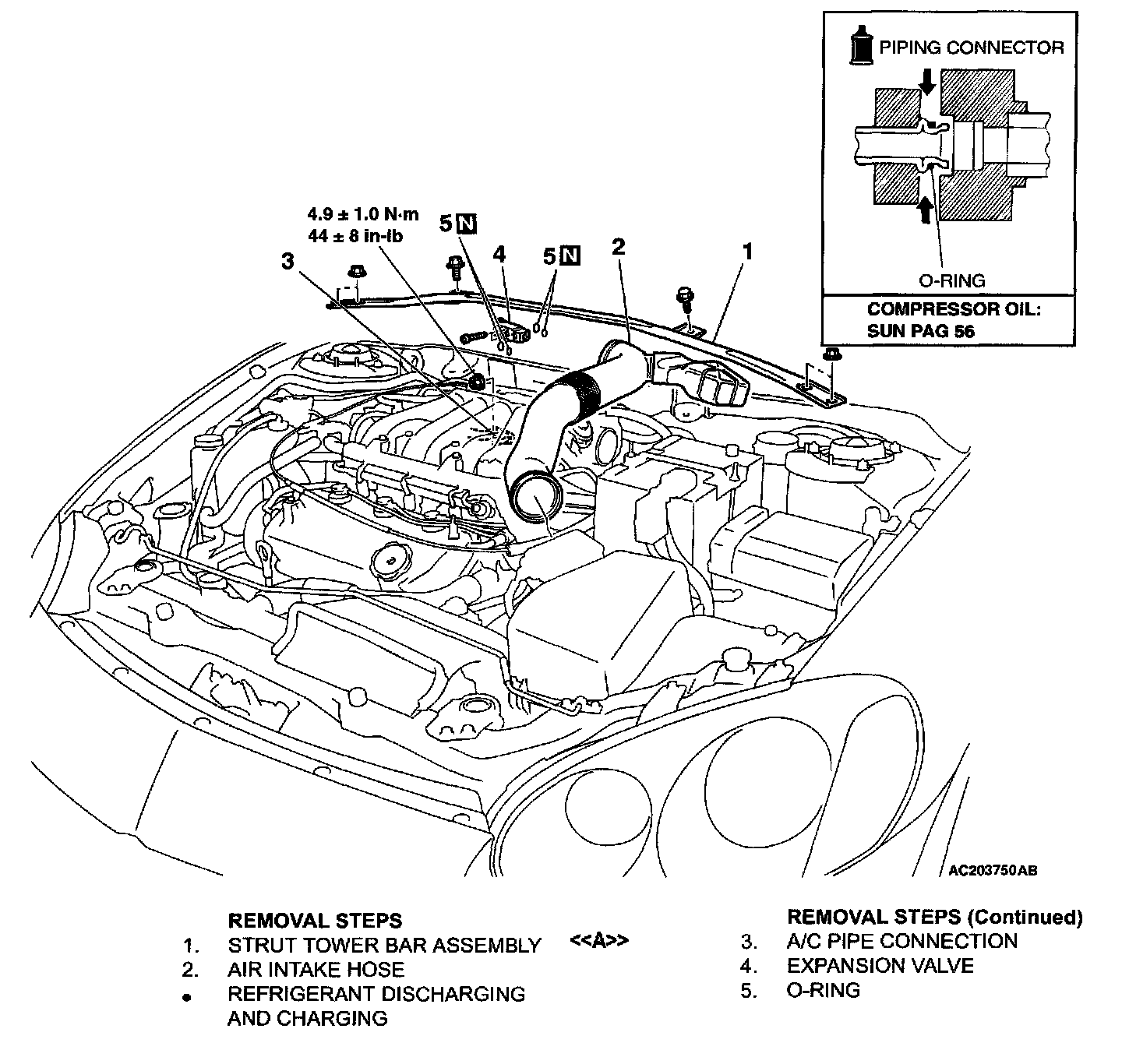

Evaporator Assembly Part 2:

REMOVAL SERVICE POINT

<> FLEXIBLE SUCTION HOSE, LIQUID PIPE B, AND THE EXPANSION DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to hose and nipples.
To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.
