Generator and Ignition System

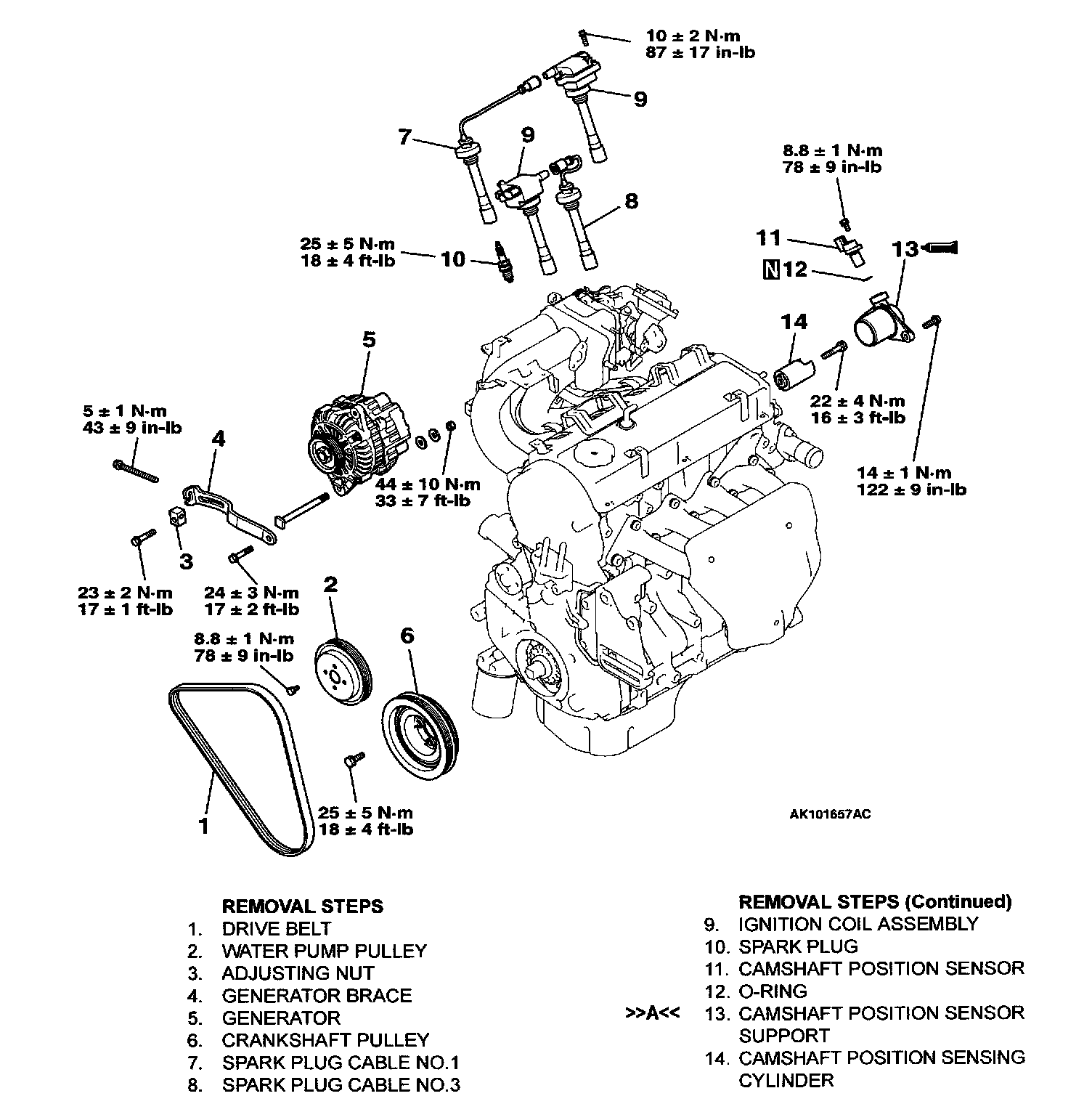

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

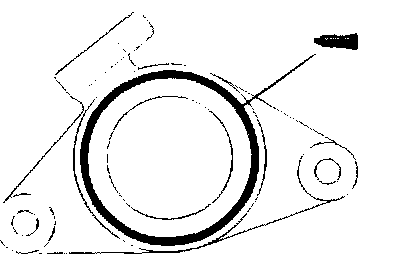

]]A[[ CAMSHAFT POSITION SENSOR SUPPORT INSTALLATION





Apply a 3 mm (0.12 inch) bead of sealant (MITSUBISHI Genuine Part number MD970389) in the groove shown.
