Engine Control Module

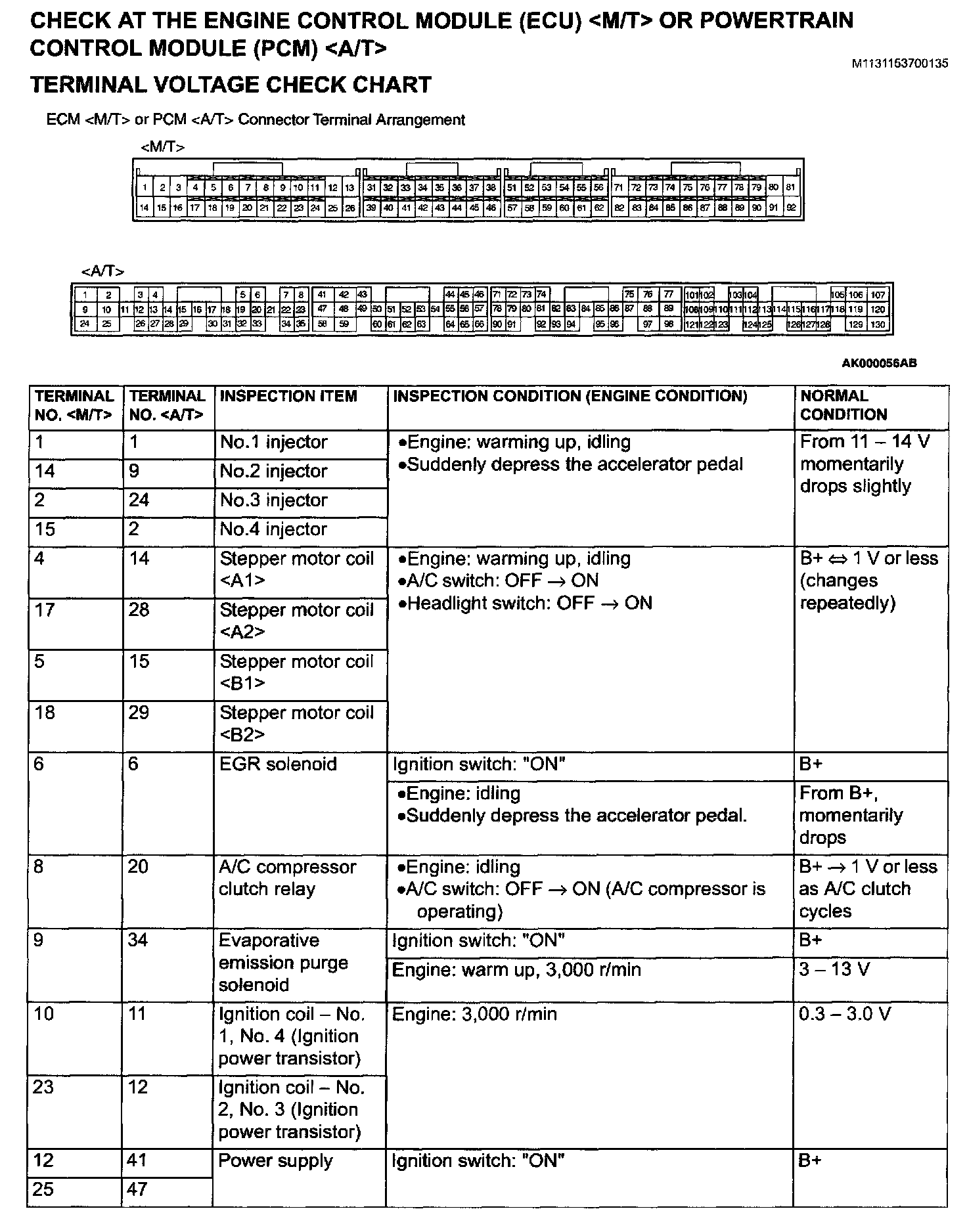

ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 1:

ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 2:

ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 3:

ECM <M/T> Or PCM <A/T> Connector Terminal Arrangement Part 4:

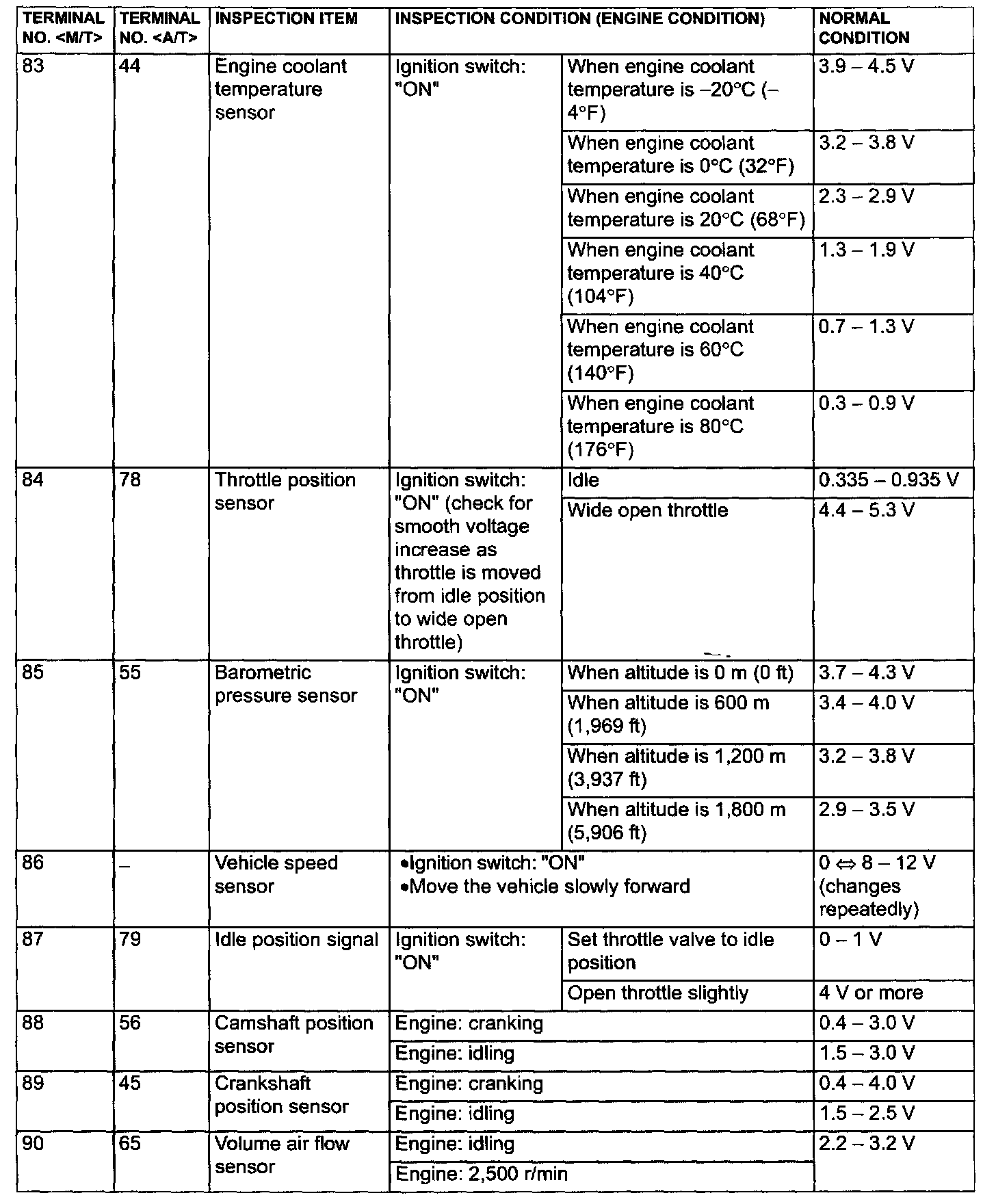

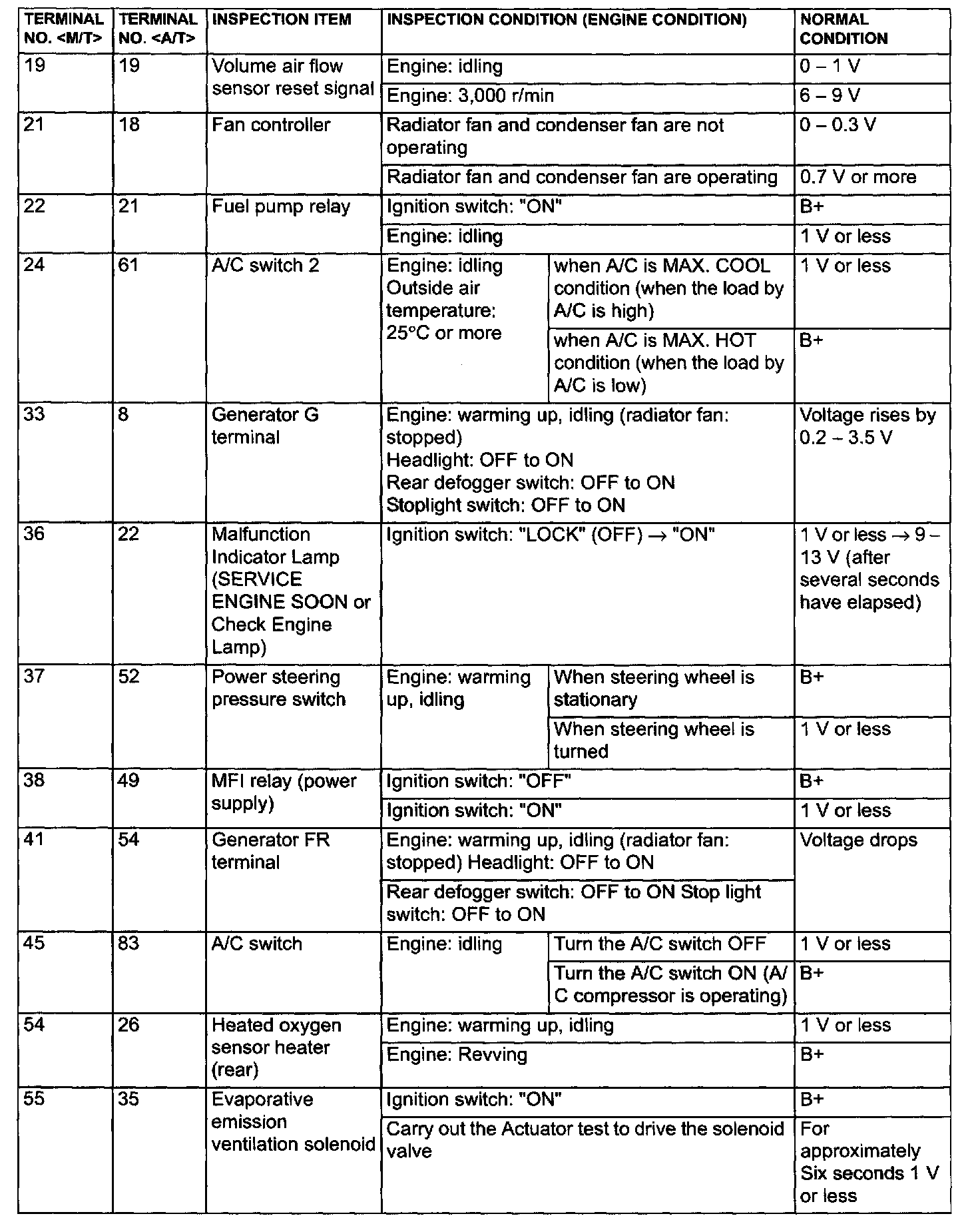

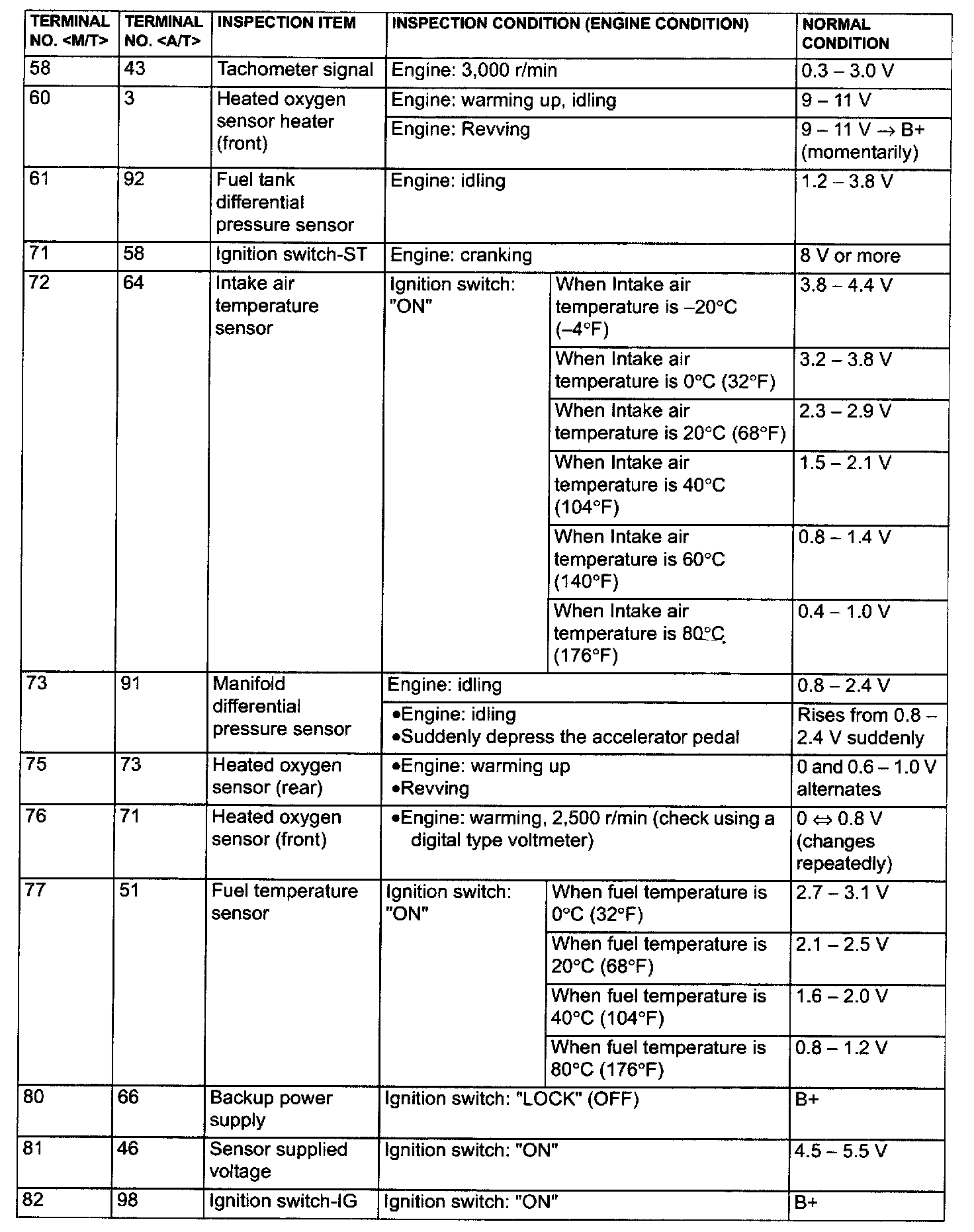

TERMINAL VOLTAGE CHECK CHART
