Home >> Mitsubishi >> 2003 >> Eclipse L4-2.4L SOHC >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Hood Switch / Sensor >> Hood Sensor/Switch (For Alarm) >> Testing and Inspection

Hood Sensor/Switch (For Alarm): Testing and Inspection

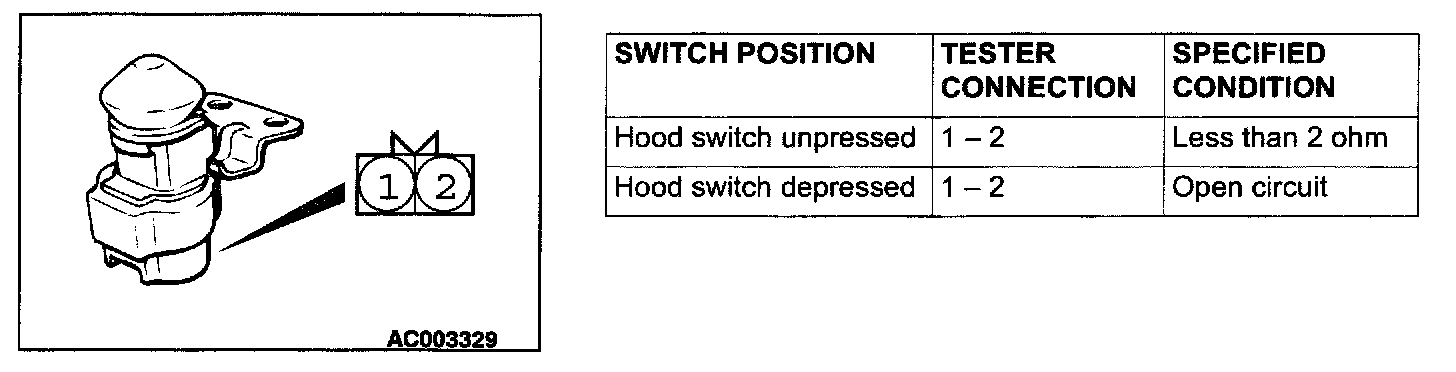

Hood Switch Check <vehicles With Theft Alarm System>:
