Home >> Mitsubishi >> 2003 >> Eclipse L4-2.4L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair

Speaker: Service and Repair

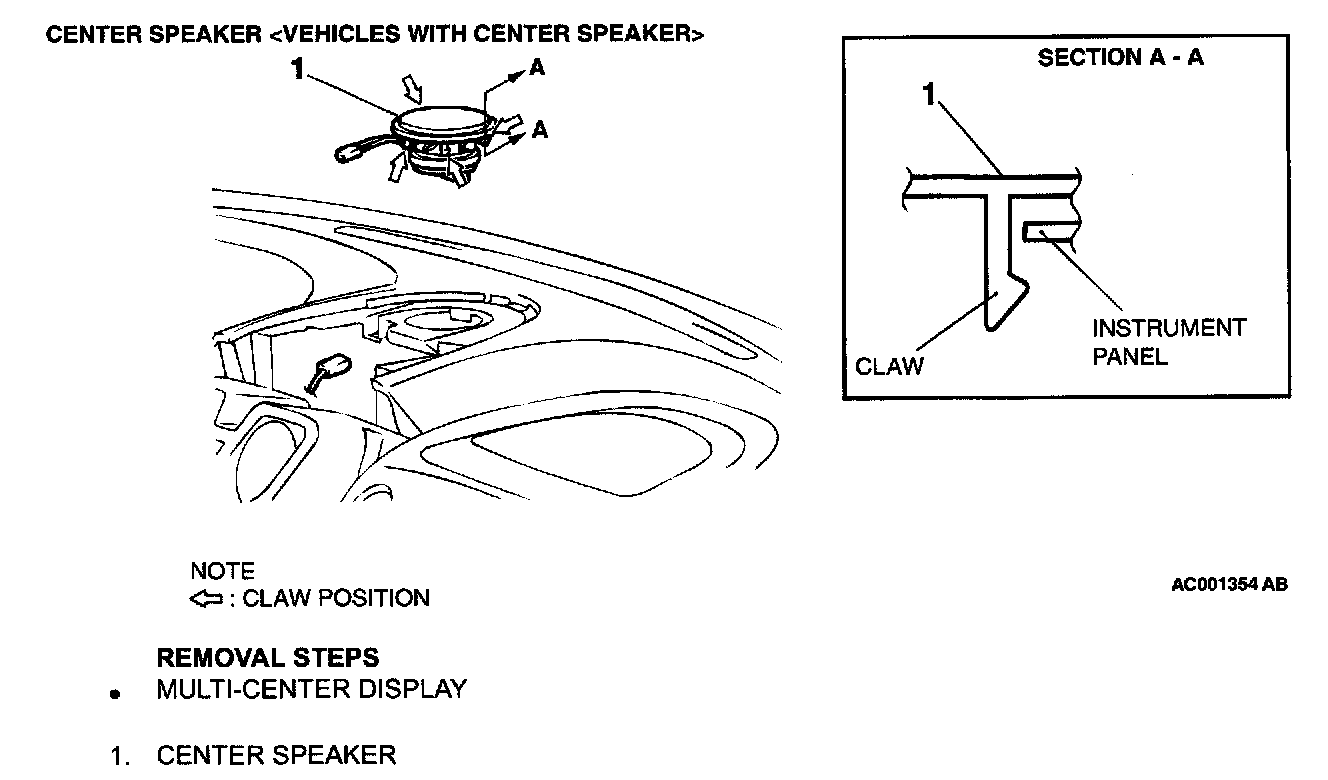

Center Speaker <vehicles With Center Speaker>:

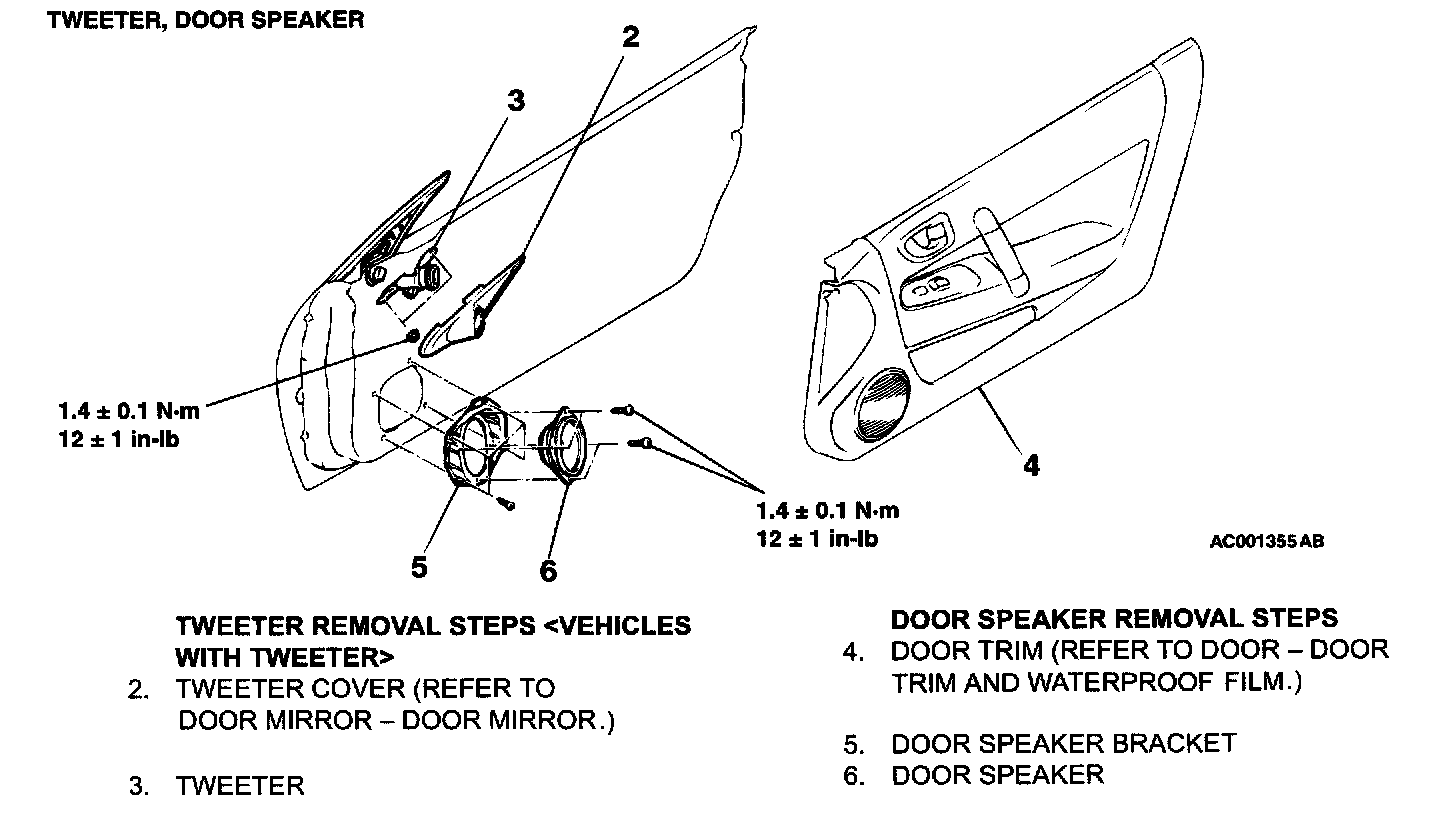

Tweeter, Door Speaker:

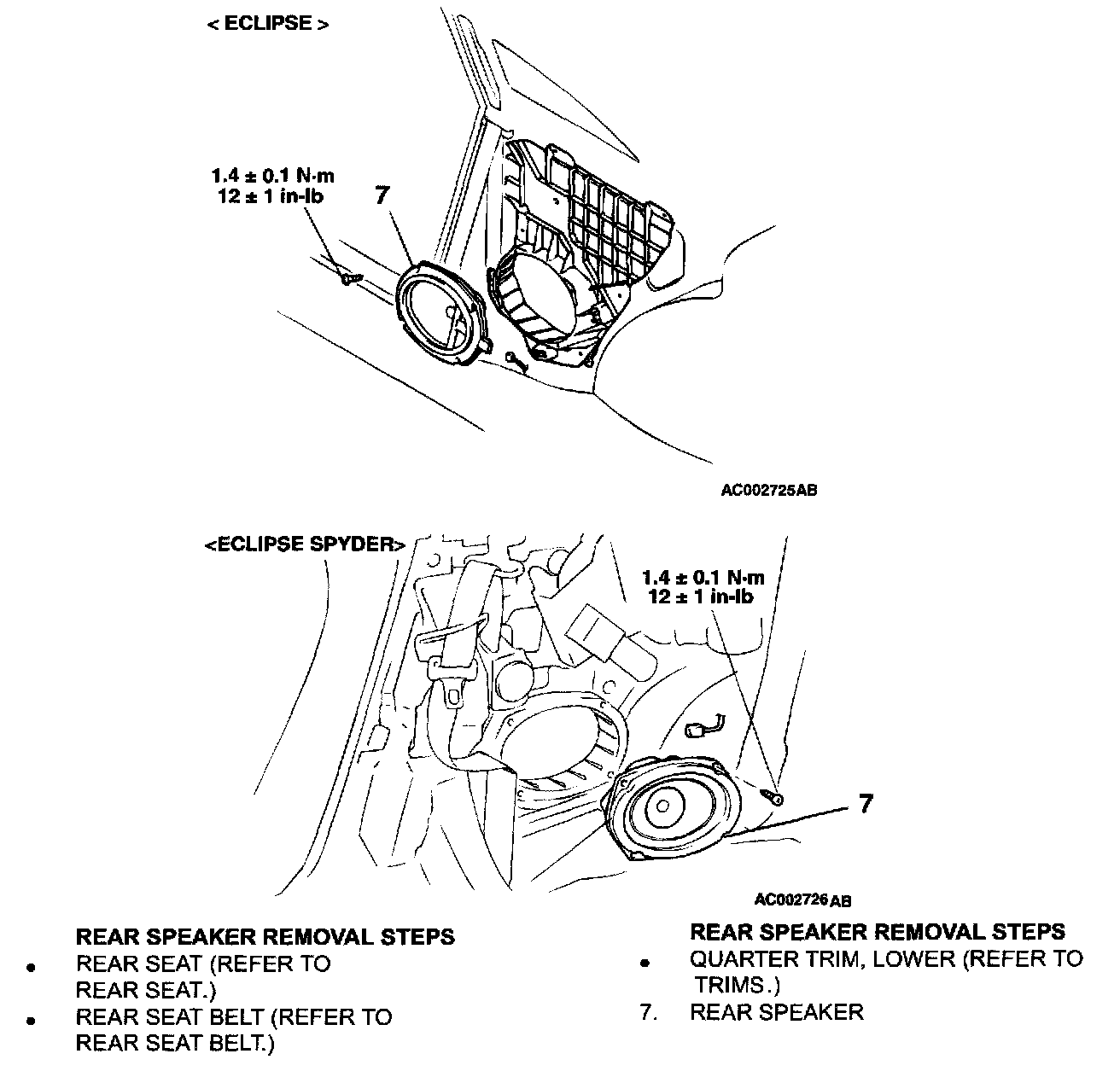

Eclipse:
