Front Washer Spray Nozzle
Front Washer Spray Nozzle

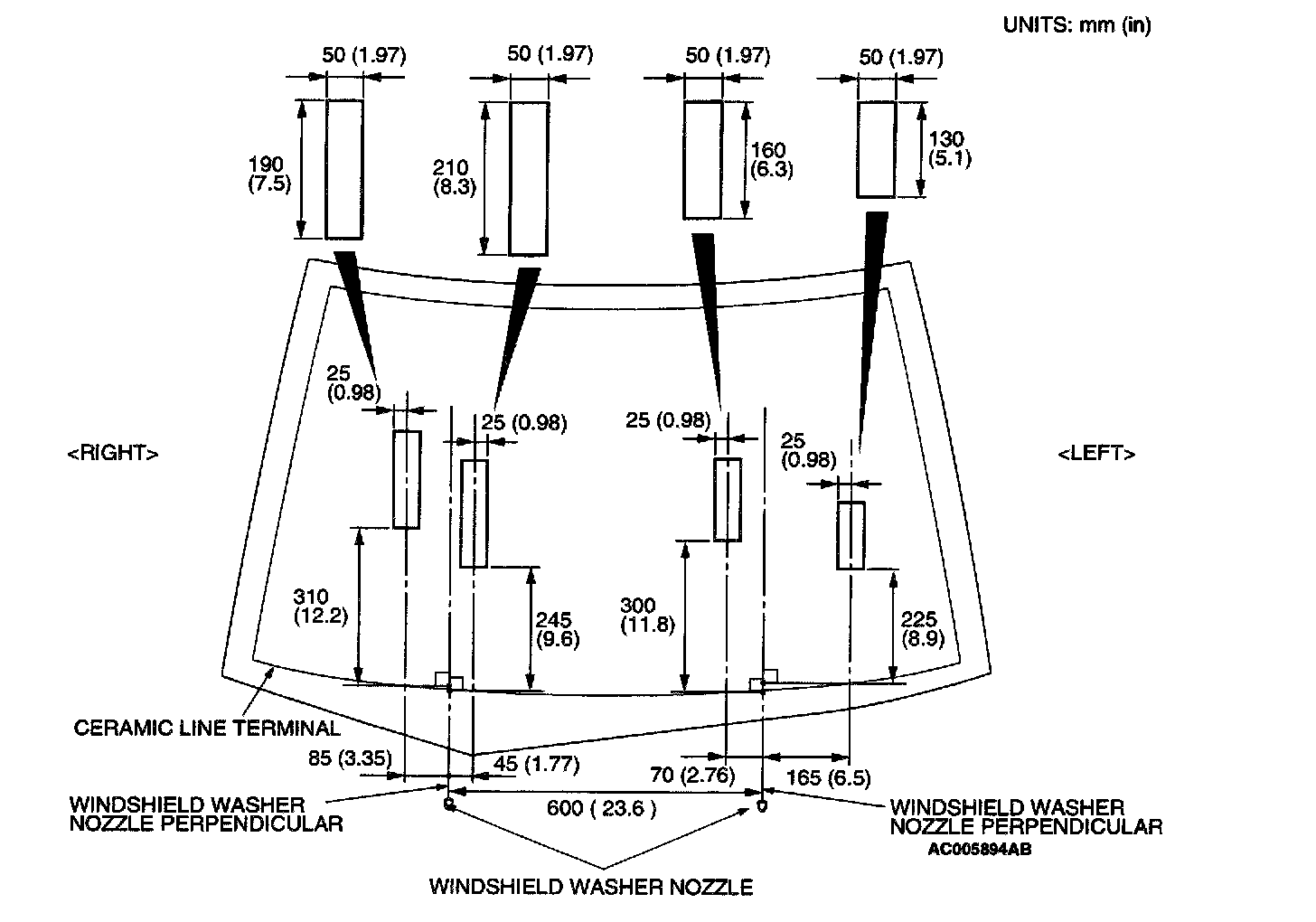

Move the nozzle to adjust the position so that the injection can be done in area shown in the illustration
