Windshield Wiper and Washer

Part 1:

Part 2:

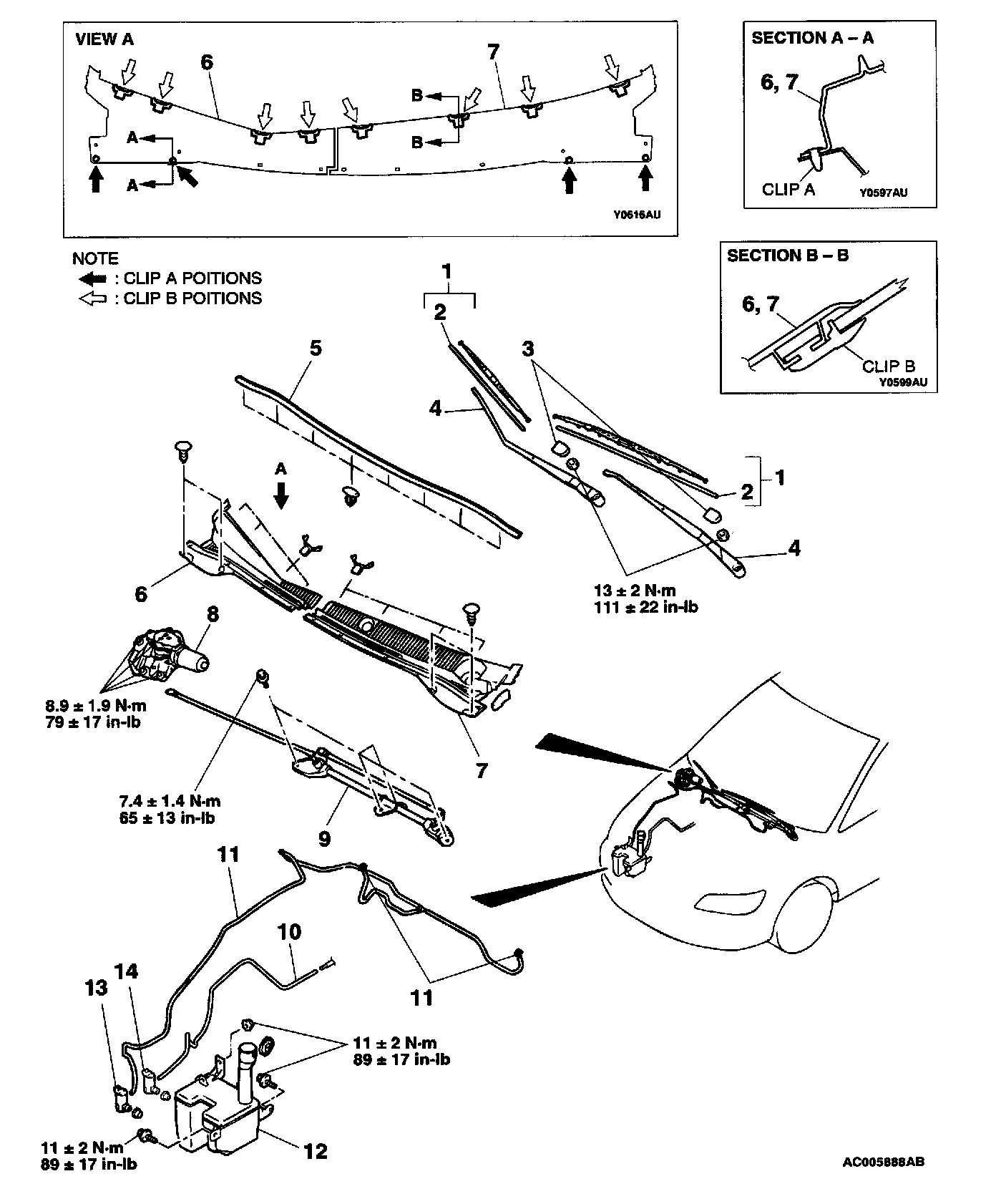

REMOVAL SERVICE POINT




<> WINDSHIELD WIPER MOTOR ASSEMBLY REMOVAL
1. Remove the windshield wiper motor assembly mounting bolt.

CAUTION: Be careful not to damage the windshield glass when the windshield wiper motor assembly is removed.

2. Use the flat-tipped screwdriver to disengage the link between the windshield wiper motor assembly and the link assembly to remove the windshield wiper motor assembly.

INSTALLATION SERVICE POINTS

>>A<< WIPER BLADE INSTALLATION

CAUTION: The driver's side wiper blade is not warped.

When installing the passenger's wiper blade, check that the backing inside the wiper blade is warped toward the wiper arm.




>>B<< WIPER BLADE ASSEMBLY INSTALLATION
Install the wiper blade at the specified position (standard value).

Standard value: (A) 34 ± 5 mm (1.3 ± 0.20 inch)
