Procedures

REMOVAL AND INSTALLATION

WARNING: Be careful not subject the SRS-ECU to any shocks during removal and installation of the shift cable and select cable assembly.

INSTALLATION SERVICE POINT
>>A<< SHIFT CABLE CONNECTION (SHIFT LEVER SIDE) INSTALLATION

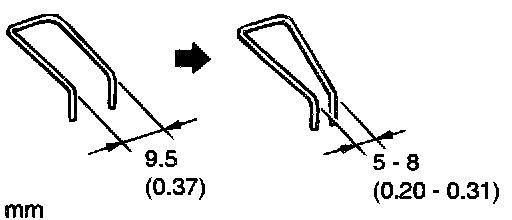

1. Make sure that there is no excessive play at the shift cable end clip. If there is excessive play or the clip is disengaged from the shift cable end, check the clip opening gap. If the gap is more than 9.5 mm (0.37 inch), squeeze the clip until the relaxed gap reaches 5 to 8 mm (0.20 to 0.31 inch).

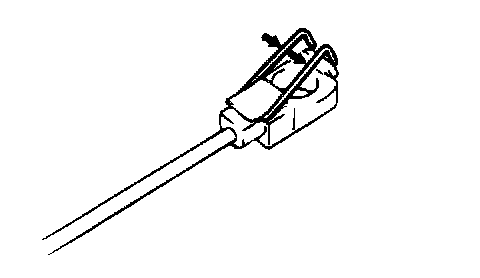

2. Engage the clip with the shift cable hook securely, and push the clip with your thumbs until it clicks in place.
3. Install the shift cable to the shift lever.
