GENERAL DESCRIPTION
The front axle consists of front hubs, knuckles, wheel bearings and driveshafts, and it has the following features:
^ The wheel bearing is a double-row angular contact ball bearing which incorporates the oil seals and is highly resistant to a thrust load.
^ The driveshaft incorporates RJ-TJ or BJ-TJ type constant velocity joints with high transmission efficiency and low vibration and noise.
^ The dynamic dampers have been mounted on the right and left driveshafts to reduce vibration.
^ ABS rotors for detecting the wheel speeds are press-fitted to the RJ or BJ outer wheels in vehicles with ABS.

NOTE:
^ RJ: Rzeppa plaint
^ TJ: Tripod Joint
^ BJ: Birfield Joint

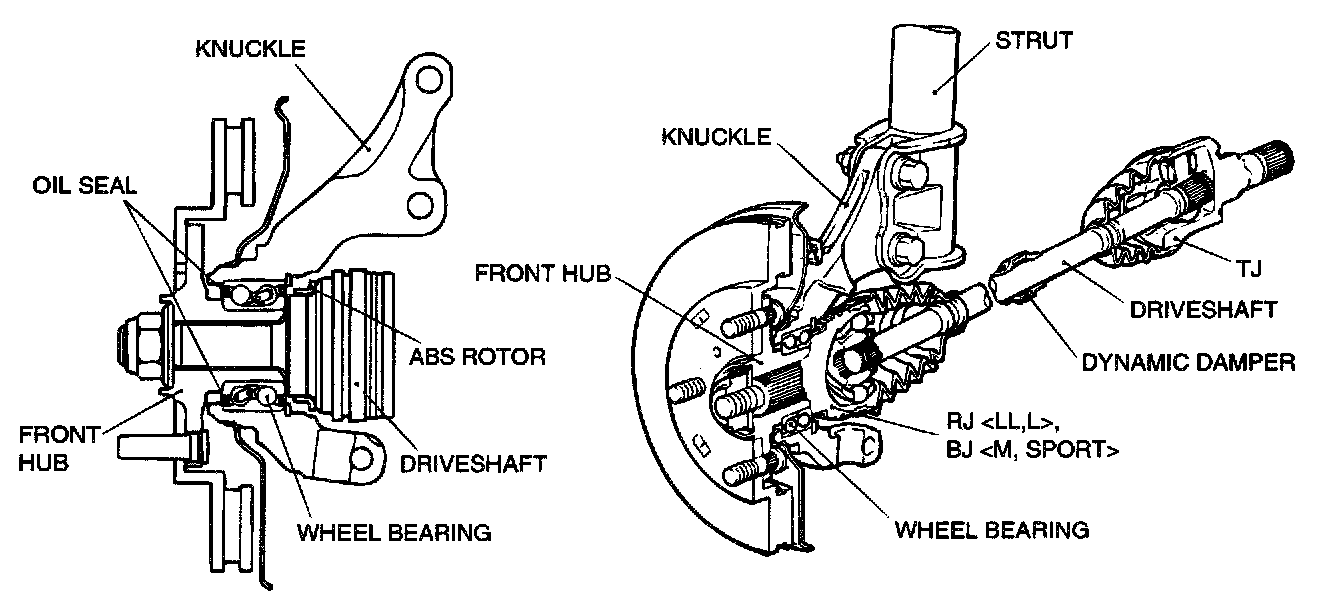

CONSTRUCTION DIAGRAM
