A/T - Revised Bolt Torque Values
No.: TSB-02-23-004DATE: July, 2002
MODEL: See Below
SUBJECT:
REVISED BOLT TIGHTENING TORQUE VALUES (Diamante, Lancer, Mirage)
- SERVICE MANUAL REVISION
PURPOSE
This bulletin revises the tightening torque values for the transmission output shaft retainer bolts and the transmission oil pump mounting bolts. These torque values were changed beginning with April, 2000 production.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
The revisions covered by this bulletin apply to all of the following vehicles produced beginning April, 2000.
2000-02 Diamante
2002 Lancer
2000-02 Mirage
AFFECTED SERVICE MANUALS
2000 & 2001 Diamante Service Manuals, Volume 1, Pages 23B-11 & 23B-66
2002 Diamante Service Manual, Volume 1, Pages 23B-11 & 23B-65
2002 Lancer Service Manual, Volume 2, Pages 23B-10, 11, 66
2000 Mirage Service Manual, Volume 1, Pages 23B-11, 18, 19
2001 & 2002 Mirage Service Manuals, Volume 2, Pages 23B-10, 17, 18
FILE UNDER:
Group 23 Automatic Transmission in the Dealer Service Information Binder (2454)
2000 Diamante, Volume 1, Page 23B-66
Revise the oil pump bolt tightening torque value as shown.
2001 & 2002 Diamante, Volume 1, Page 23B-11
Revise the oil pump bolt tightening torque value as shown.

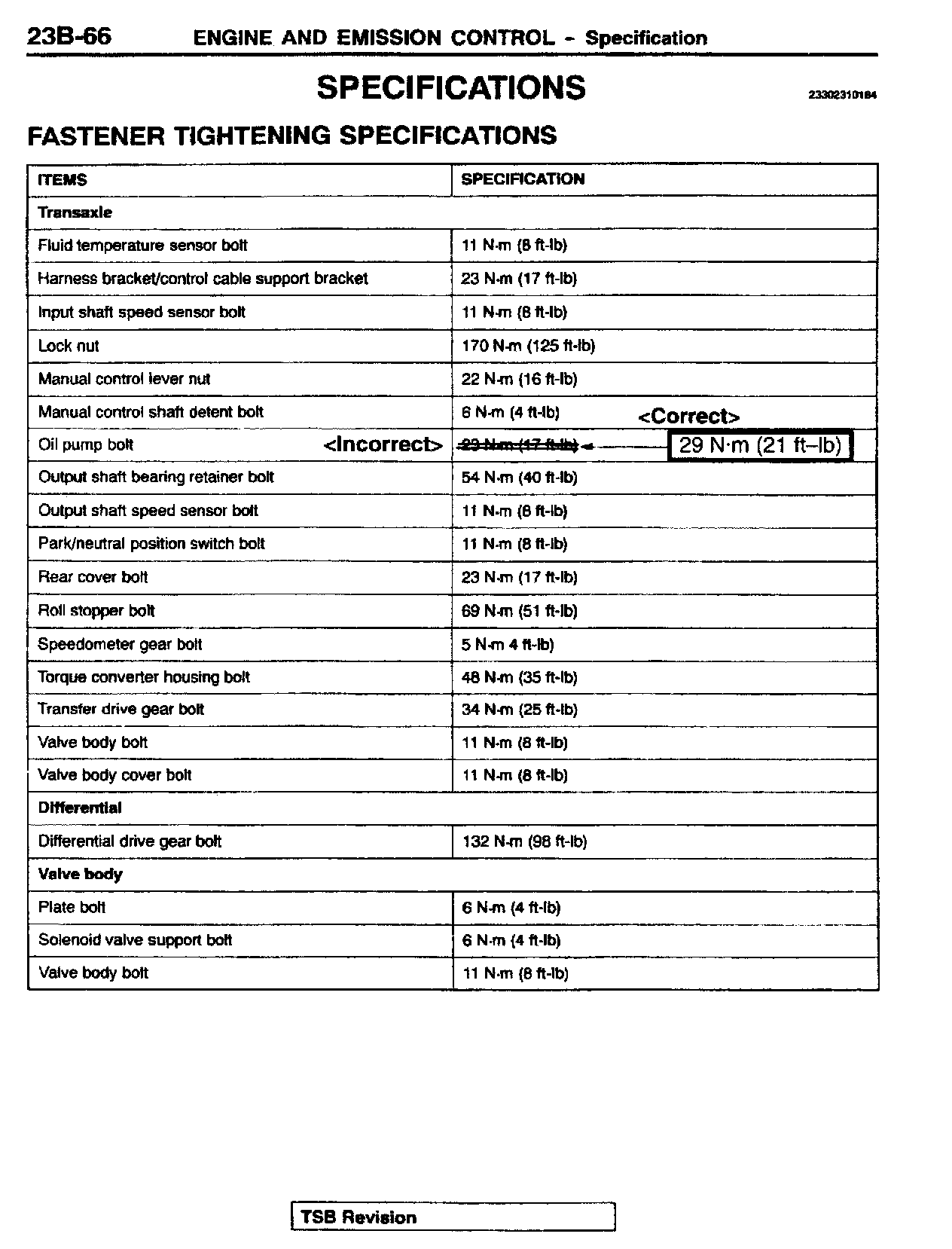

2001 Diamante, Volume 1, Page 23B-66
Revise the oil pump bolt tightening torque value as shown.

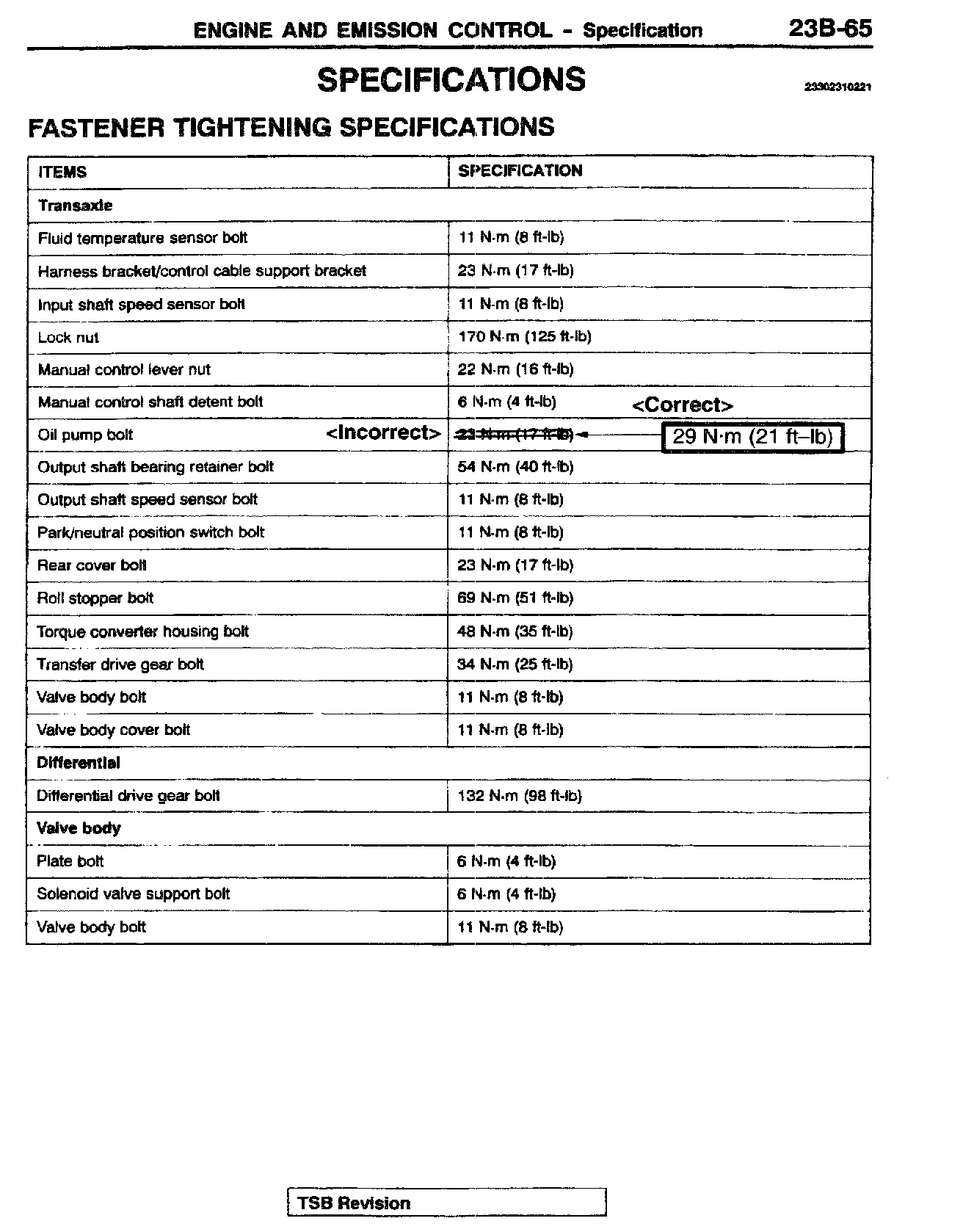

2002 Diamante, Volume 1, Page 23B-65
Revise the oil pump bolt tightening torque value as shown.
2002 Lancer Volume 2, Page 23B-10
Revise the oil pump bolt tightening torque as shown.
2002 Lancer, Volume 2, Page 23B-11
Revise the output shaft bearing retainer bolt tightening torque as shown.

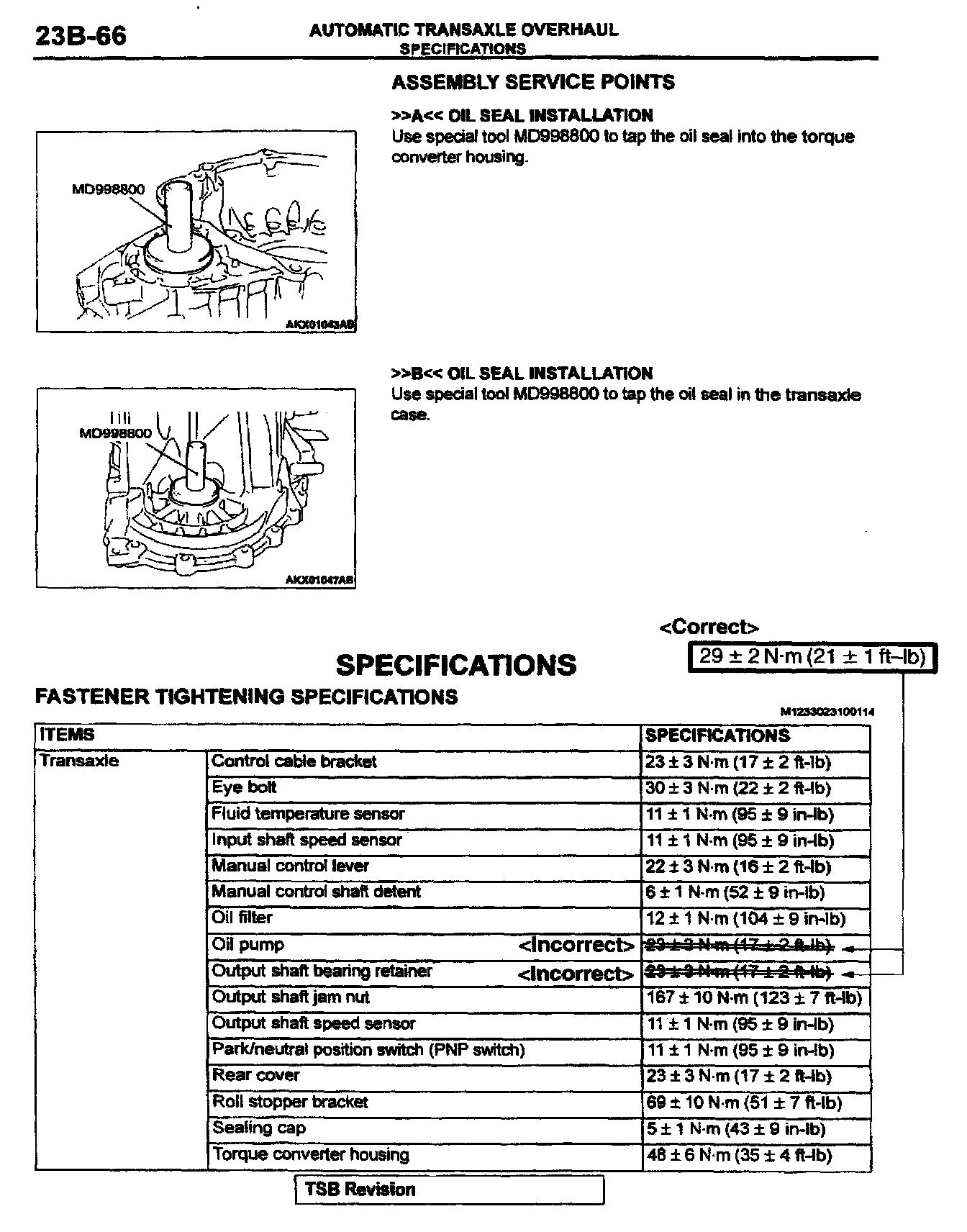

2002 Lancer, Volume 2, Page 23B-66
Revise the output shaft bearing retainer bolt and oil pump mounting bolt tightening torque values as shown.
2000 Mirage, Volume 1, Page 23B-11
Revise the output shaft bearing retainer bolt and oil pump mounting bolt tightening torque values as shown.

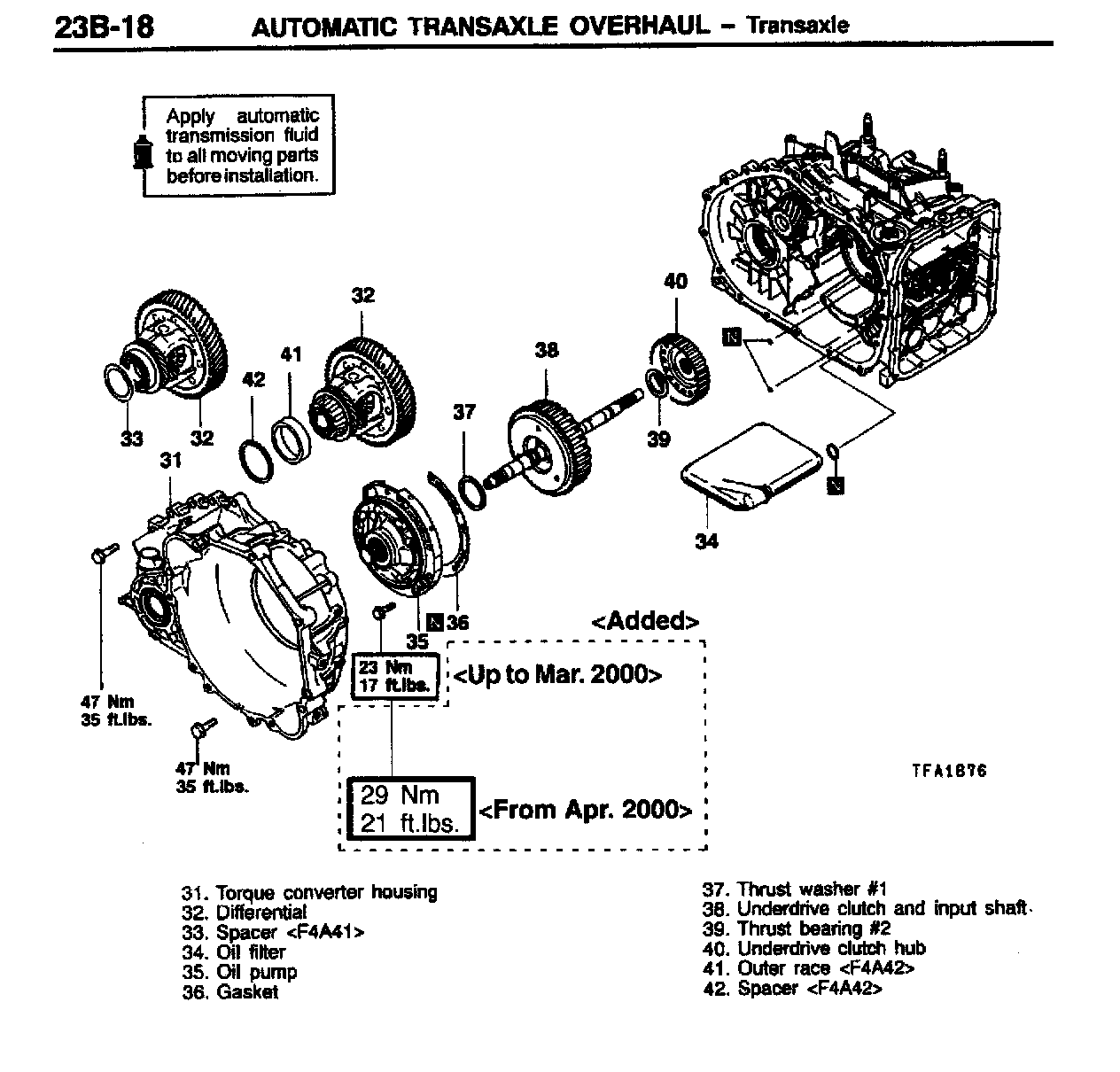

2000 Mirage, Volume 1, Page 23B-18
Revise the oil pump boll tightening torque value as shown.

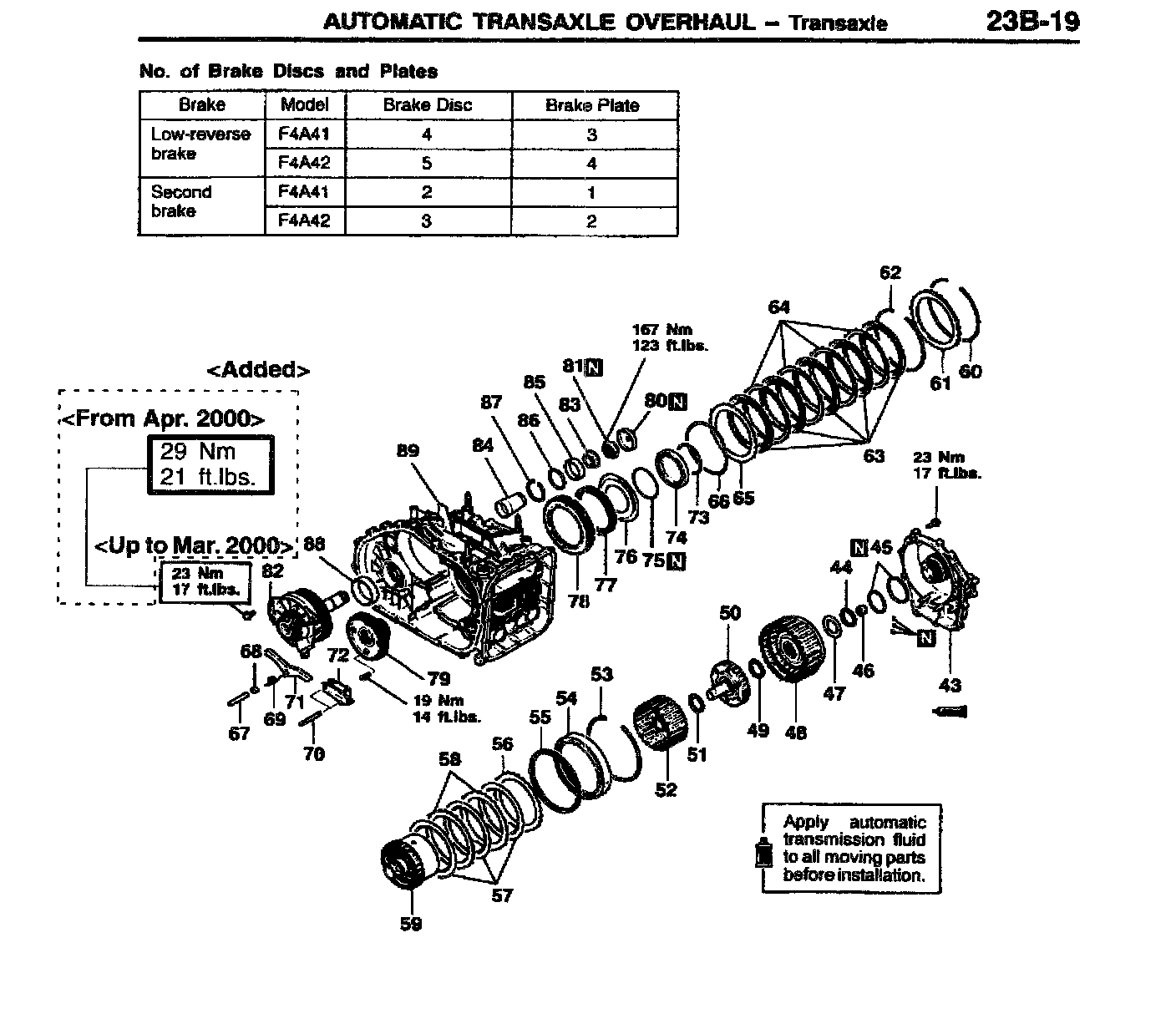

2000 Mirage, Volume 1, Page 23B-19
Revise the output shaft bearing retainer bolt tightening torque value as shown.
2001 Mirage, Volume 2, Page 23B-10
Revise the output shaft bearing retainer bolt and oil pump mounting bolt tightening torque values as shown.

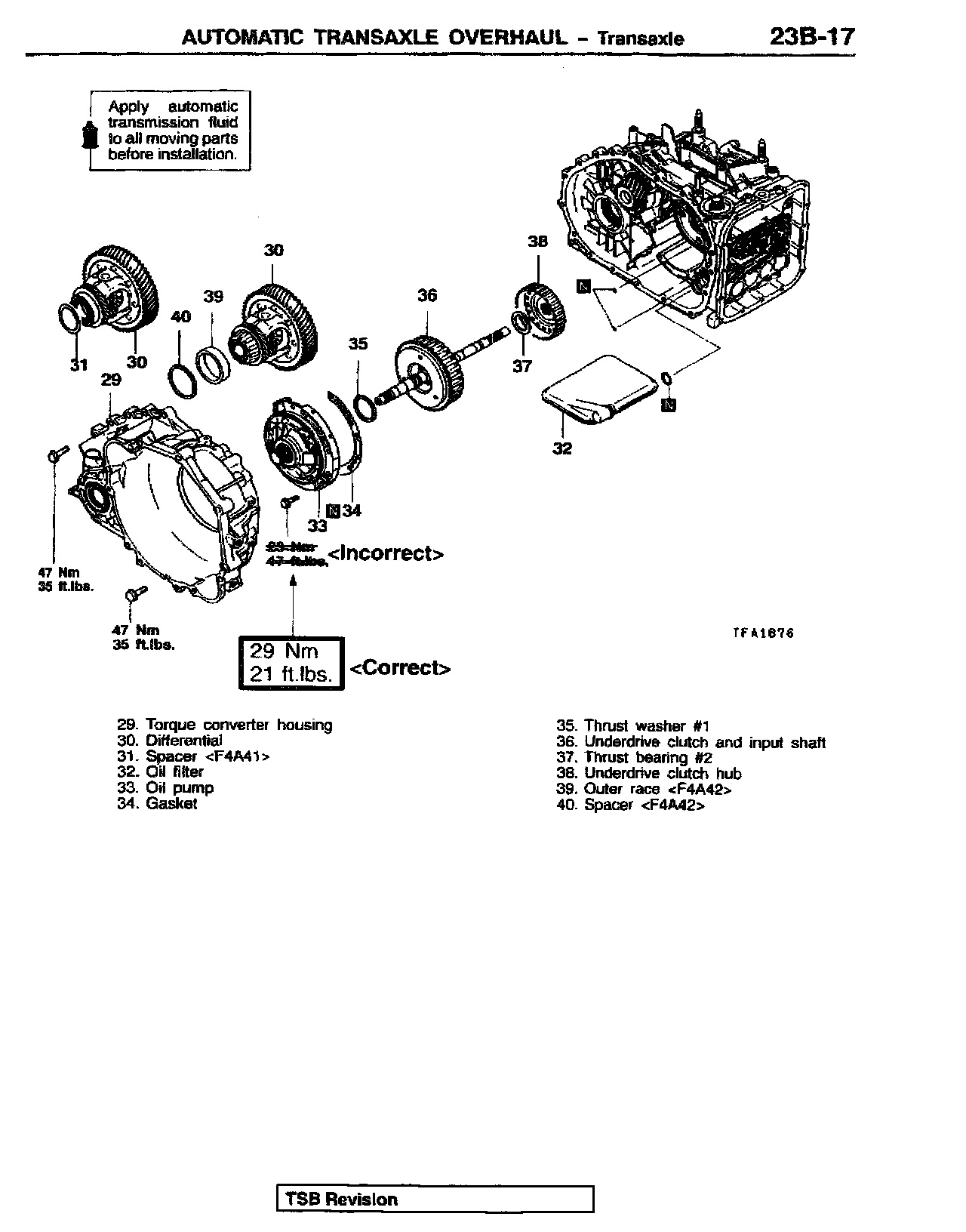

2001 Mirage Volume 2, Page 23B-17
Revise the oil pump bolt tightening torque value as shown.
2001 Mirage, Volume 2, Page 23B-18
Revise the output shaft bearing retainer bolt tightening torque value as shown.
2002 Mirage, Volume 2, Page 23B-10
Revise the output shaft bearing retainer bolt and oil pump mounting bolt tightening torque values as shown.
2002 Mirage, Volume 2, Page 23B-17
Revise the oil pump bolt tightening torque value as shown.
2002 Mirage, Volume 2, Page 238-18
Revise the output shaft bearing retainer bolt tightening torque value as shown.
