A/T - Hydraulic Pressure Manual Update
No.: TSB-03-23-001DATE: January, 2003
MODEL: See below
SUBJECT:
A/T STANDARD HYDRAULIC PRESSURES
- SERVICE MANUAL REVISION
PURPOSE
Some pressures are listed incorrectly in A/T Standard Hydraulic Pressure Tables in the affected service manuals. Low-Reverse Brake Pressure specifications and Second Brake Pressure specifications for "L" selector lever position are reversed, as indicated in this bulletin.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
2001-02 Eclipse, Eclipse Spyder, Galant
2002 Lancer
AFFECTED SERVICE MANUALS
2001 Eclipse/Eclipse Spyder, Volume 3, page 23A-32
2002 Eclipse/Eclipse Spyder, Volume 3, page 23A-26

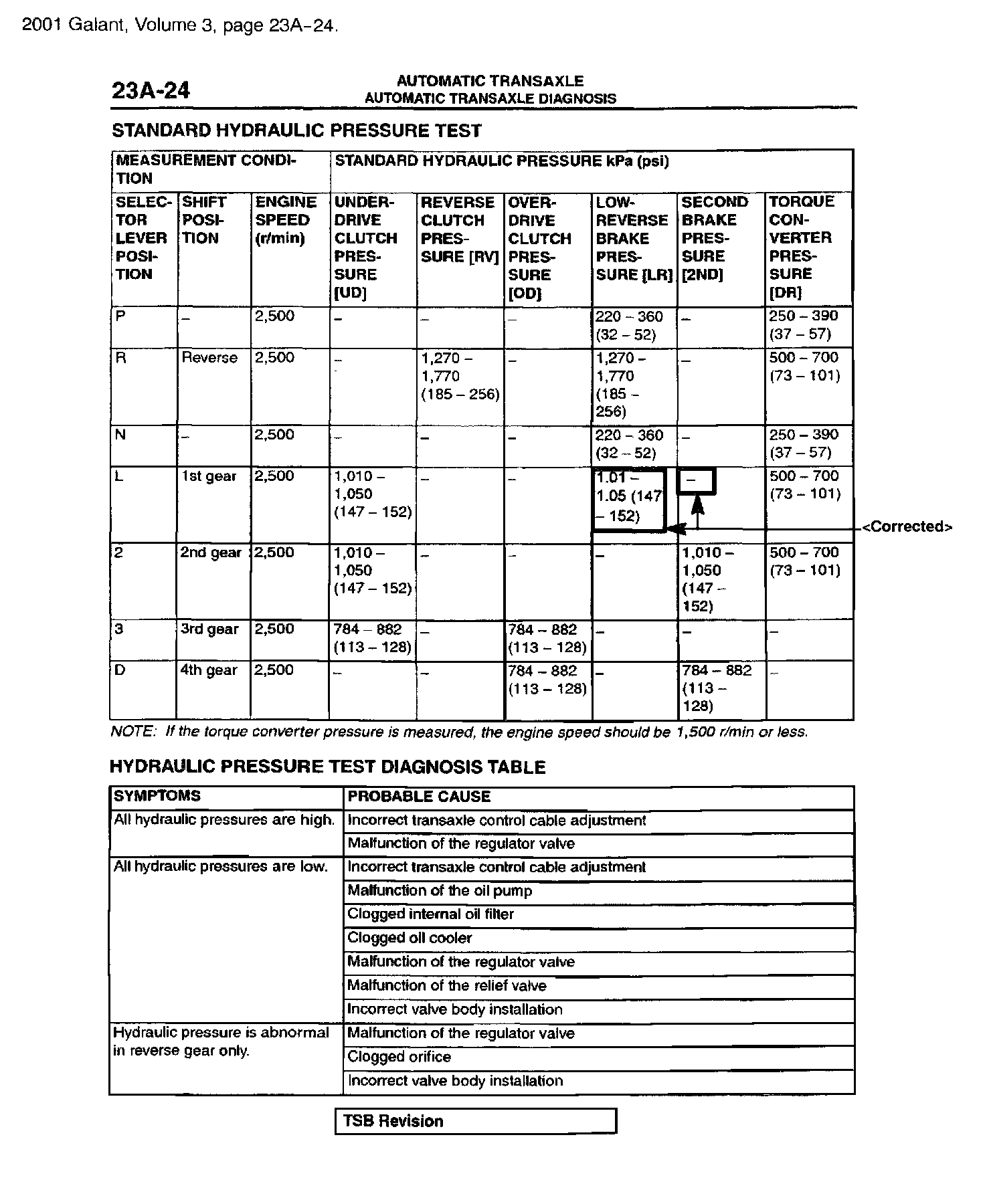

2001 Galant, Volume 3, page 23A-24
2002 Galant, Volume 3, page 23A-24
2002 Lancer, Volume 2, page 23A-23
