Removal and Installation

REMOVAL AND INSTALLATION

CAUTION: When removing and installing the transmission control cable and shift lock cable unit, be careful not to hit the SRS-ECU.

INSTALLATION SERVICE POINTS
>>A<< SHIFT LOCK CABLE (SELECTOR LEVER SIDE) INSTALLATION





1. Shift the selector lever to "P" position.
2. Turn the ignition key to "LOCK" (OFF) position.
3. Fasten the shift lock cable at the position where the end of the shift lock cable is positioned above the red marking.

>>B<< KEY INTERLOCK CABLE (SELECTOR LEVER SIDE) INSTALLATION





1. Install the key interlock cable on the lock cam.
2. Install the spring and washer of the key interlock cable as shown.
3. While lightly pushing the cable coupling portion of the lock cam in the direction A, tighten the nut to the specified torque.
Tightening torque: 12 ± 2 Nm (107 ± 17 inch lbs.)

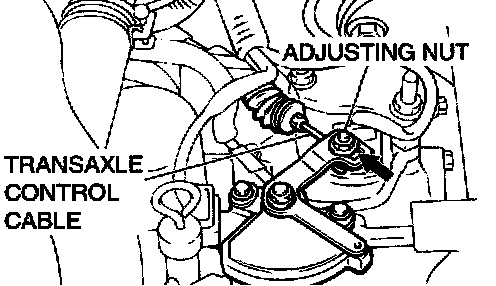

>>C<< TRANSAXLE CONTROL CABLE (TRANSAXLE SIDE) INSTALLATION
1. Shift the selector lever to "N" position.





2. Gently push the transaxle control cable in the direction of the arrow until the cable is taut. Tighten the nut at the specified torque.
Tightening torque: 12 ± 2 Nm (107 ± 17 inch lbs.)

INSPECTION
Check the cable assembly for function and for damage.
