Driveshaft Oil Seal

DISASSEMBLY AND REASSEMBLY

REASSEMBLY SERVICE POINTS
>>A<< OIL SEAL INSTALLATION

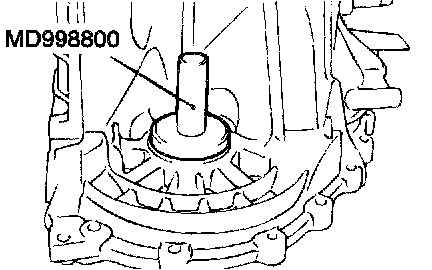

Use special tool MD998800 to tap the oil seal into the torque converter housing.

>>B<< OIL SEAL INSTALLATION





Use special tool MD998800 to tap the oil seal in the transaxle case.
