Trailing Arm: Service and Repair

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS

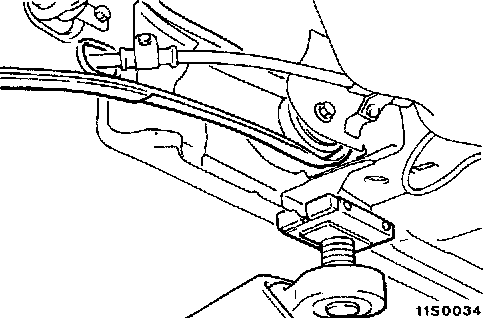

[[A]] LIFTING POINT





When removing the trailing arm, move the lifting arm slightly towards the front of the vehicle so that it will not be in the way.

[[B]] REAR BRAKE ASSEMBLY REMOVAL

CAUTION: Be careful not to bend the brake pipe then suspending the rear brake assembly.

After removing the rear brake assembly, suspend it to the body with a cord to prevent it from dropping.

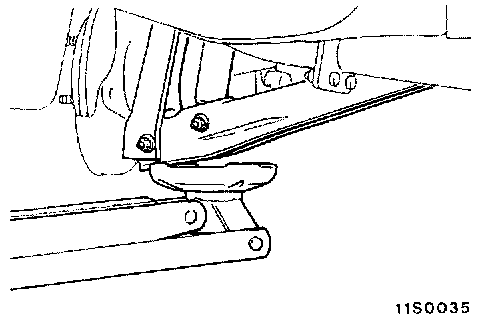

[[C]] LOWER ARM AND TRAILING ARM DISCONNECTION





After supporting the lower arm with a jack, separate the lower arm and trailing arm connection.

INSPECTION
^ Check the bushings for wear and deterioration.
^ Check the trailing arm for bends or damage.

TRAILING ARM BUSHING REPLACEMENT

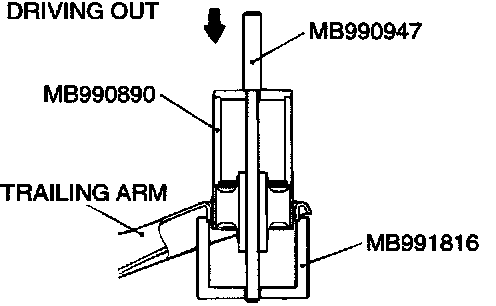

1. Use the special tools to drive out the trailing arm bushing.

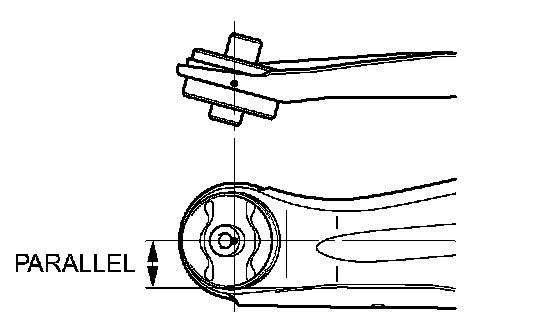

2. Set the installation direction and installation location of the trailing arm bushing.
1. Place the long projection end of the trailing arm bushing inner pipe towards the inside of the vehicle.
2. Make sure that the hollow of the trailing arm bushing is located as shown in the illustration.

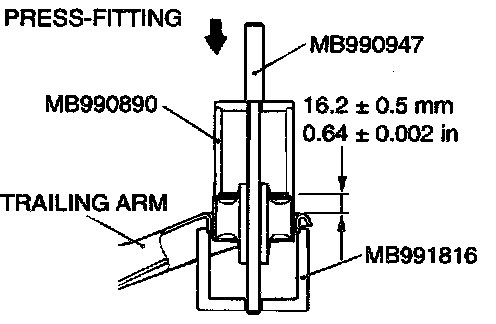

3. Using the special tool, press the trailing arm bushing into the position shown.
