Removal and Installation

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT
[[A]] LOWER ARM AND TRAILING ARM DISCONNECTION





After supporting the lower arm with a jack, separate the lower arm and trailing arm connection.

INSTALLATION SERVICE POINT

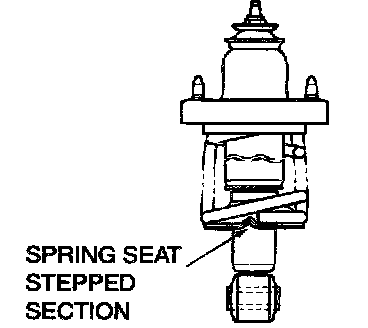

]]A[[ SHOCK ABSORBER ASSEMBLY INSTALLATION





Install the spring seat stepped section so that it points towards the rear side of the vehicle.

]]B[[ STABILIZER LINK CONNECTION





Tighten the self-locking nuts so that the amount of protrusion of the end of the stabilizer link bolt is at the standard value.
Standard value (A): 6 - 8 mm (0.24 - 0.31 inch)

INSPECTION
^ Check the rubber parts for cracks and wear.
^ Check the shock absorber for malfunctions, oil leakage, or abnormal noise.
