Rear

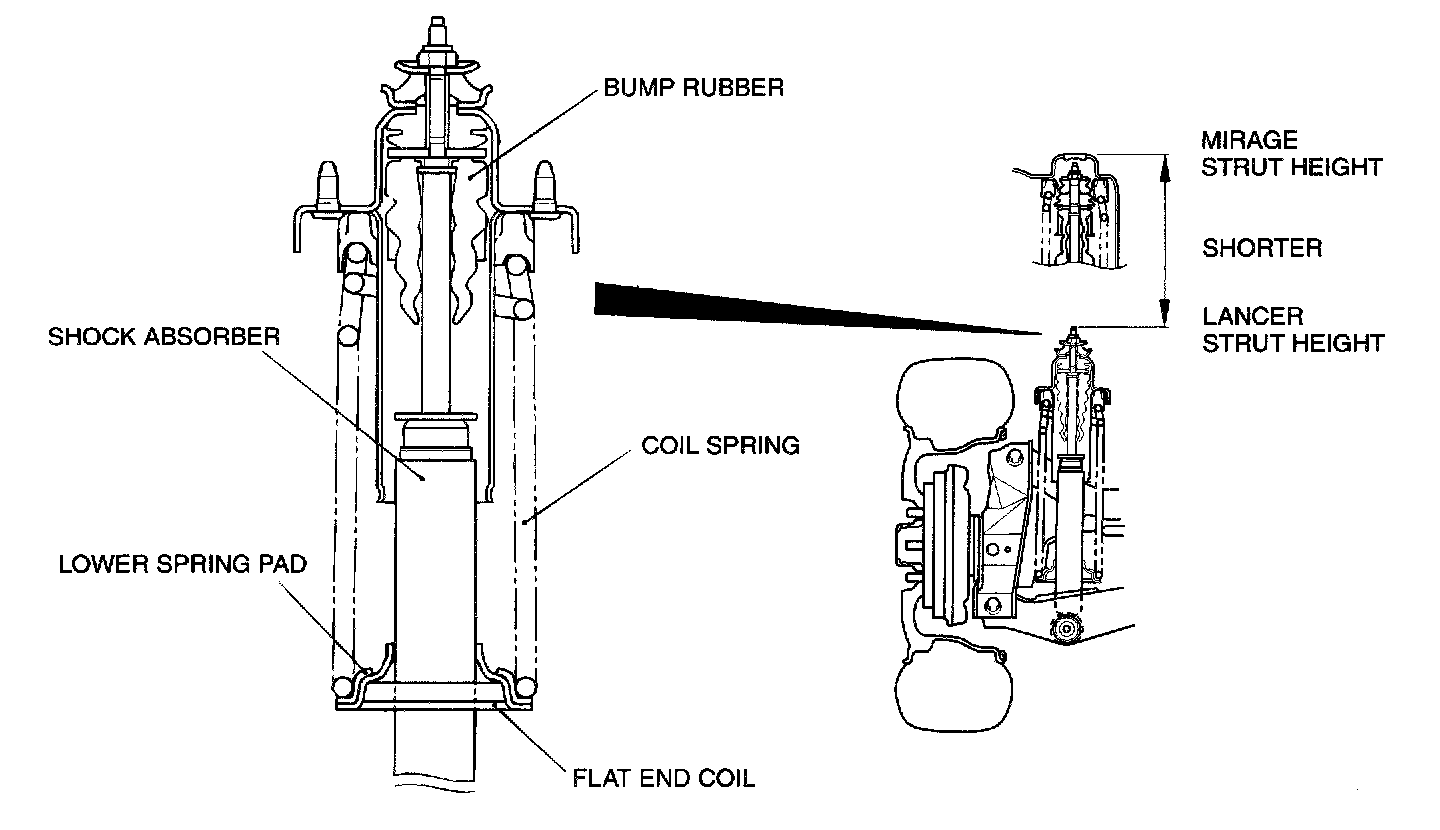

SPRING AND SHOCK ABSORBER





Compared with MIRAGE, shorter shock absorber allows storage in wheel house for large interior space.
Flat design of spring lower end coil prevents occurrence of line noise.
On bump rubber, high-energy absorption urethane foam is used for improvement of ride feeling by smooth spring characteristics.
Addition of lower spring pad to coil spring lower end coil reduces vibration and noise, etc.
