GENERAL DESCRIPTION
A McPherson strut-type suspension has been used at the front, and a trailing arm type multi-link suspension has been used at the rear.

REAR SUSPENSION
A trailing arm type multi-link suspension has been adopted as the rear suspension. This suspension is basically the same as that of the current MIRAGE except for the followings:
^ Individual geometries such as tread expansion, linearisation of toe change optimized for improvement of driving stability and ride feeling
^ Outside diameter of trailing arm bushing increased (70 mm to 81 mm) to reduce road noise

FEATURES
^ Spring and shock absorber stored in wheel house to secure large interior space
^ Spring and shock absorber stored in wheel house to secure large interior space
^ Stroke at suspension extending side increased for improvement of ride feeling and road stability.
^ Suspension bushings optimized for improvement of ride feeling and road noise
^ Spring characteristics of bump rubber optimized for improvement of driving stability and ride feeling

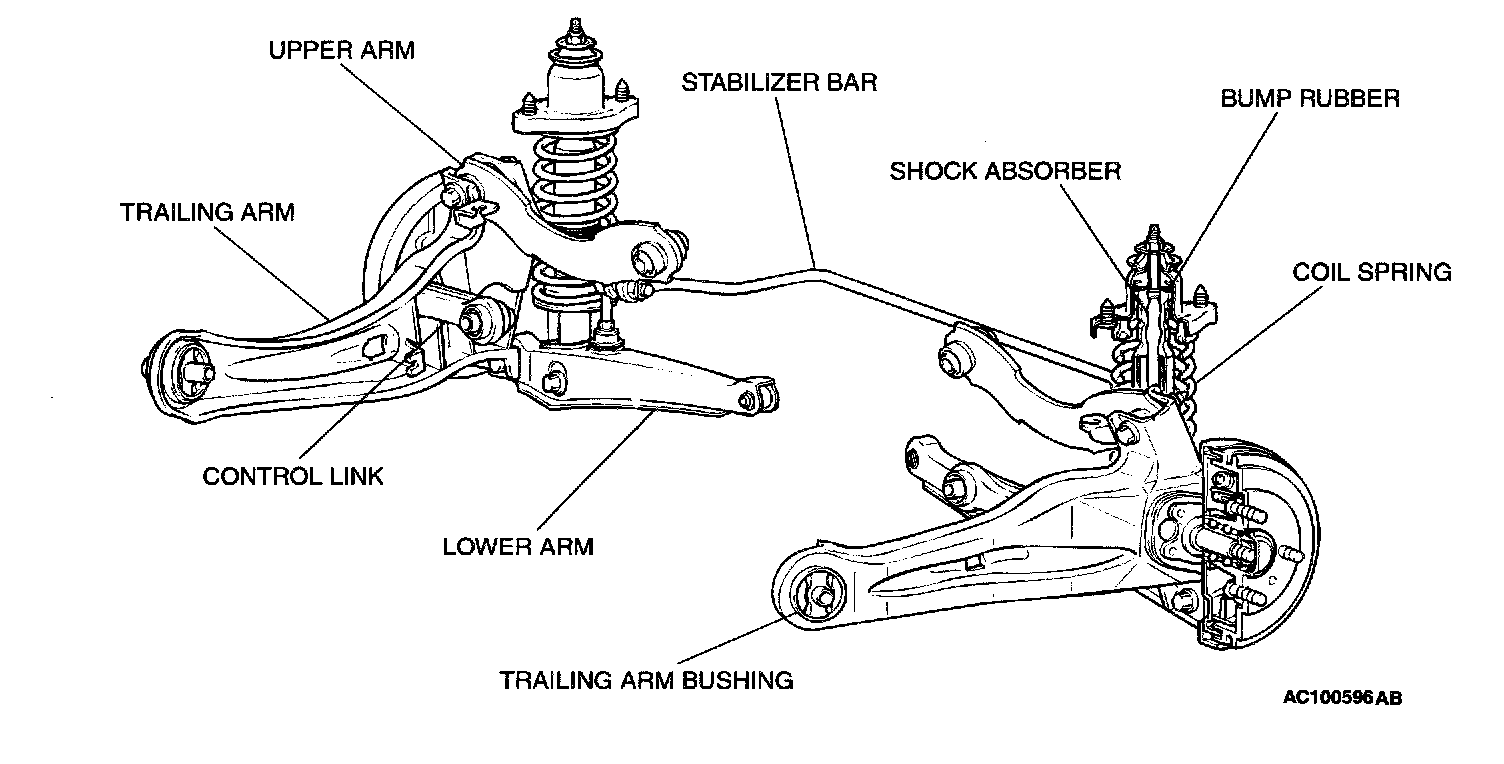

CONSTRUCTION DIAGRAM

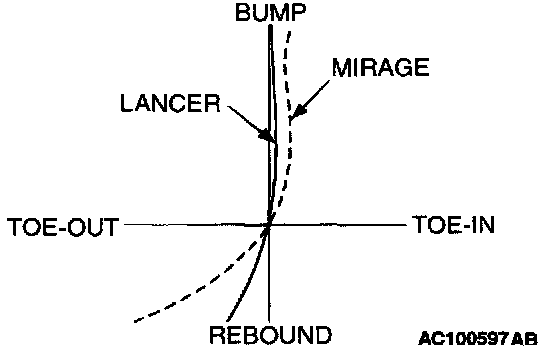

LIEARISATION OF TOE CHANGE





Toe change from bump and rebound is linearized for improvement of driving stability and ride feeling.
