Steering Gear: Description and Operation

STEERING GEAR

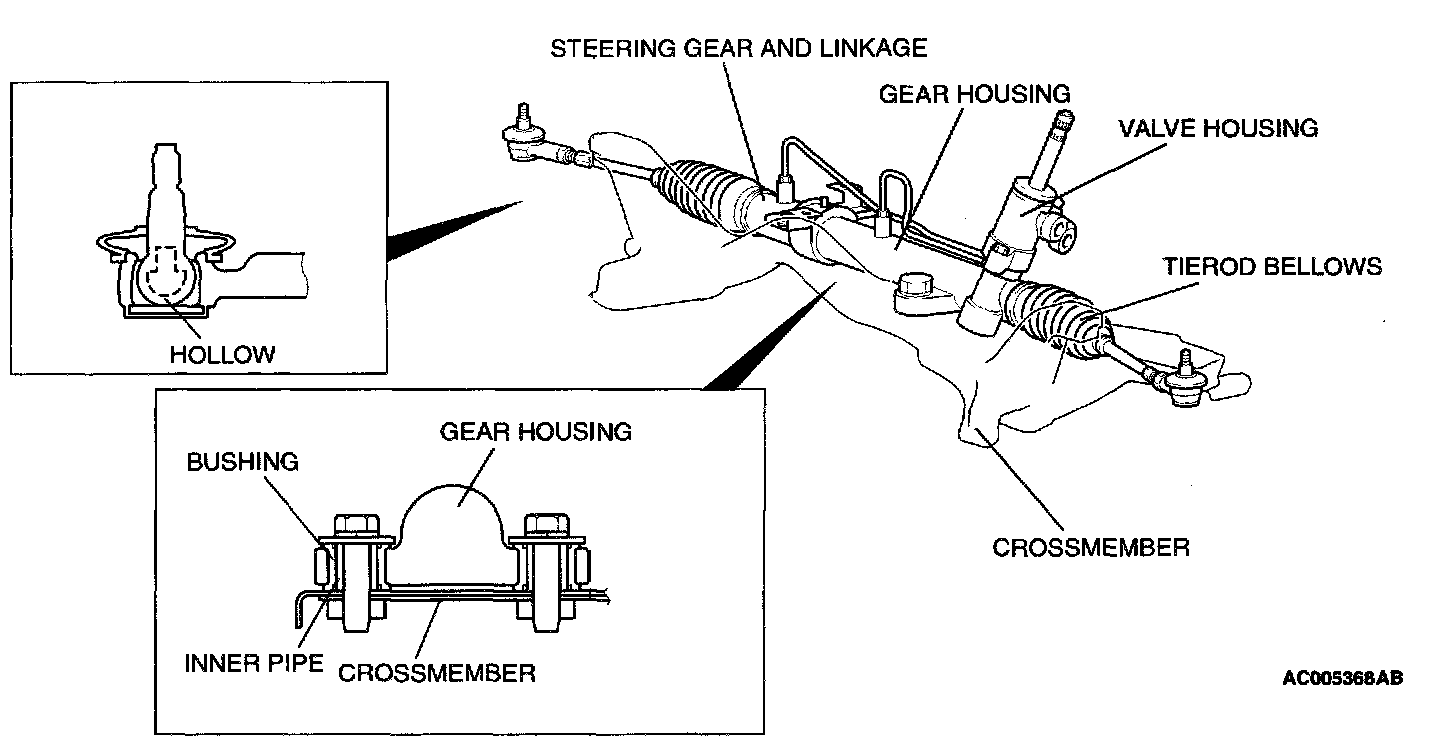

^ Using the following parts have contributed to save weight; an aluminium steering gear and linkage valve housing, a plastic tie-rod bellows, and the hollow-type tie-rod stud.
^ The installation accuracy, rigidity and steering stability have been improved by using an eye bushing, which secures the steering gear to the crossmember.
