Removal and Replacement

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS
[[A]] STEERING WHEEL REMOVAL

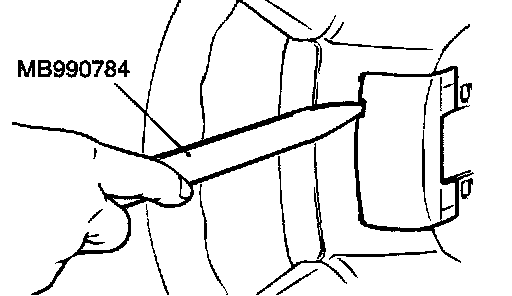

Insert the special tool MB990784 from the indicated position to remove the cover.

NOTE: The special tool MB990784 can be inserted through the notch behind the position shown.

[[B]] STEERING WHEEL AND AIRBAG MODULE ASSEMBLY REMOVAL

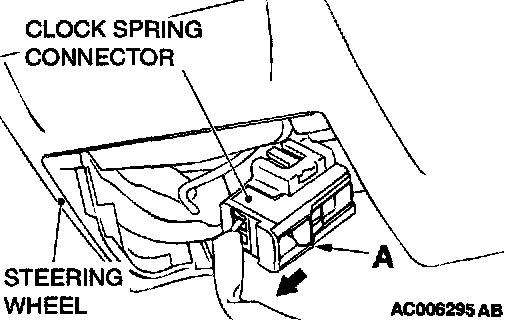

1. By sliding section A of the clock spring connector shown in the illustration in the arrow direction, disconnect the connector.

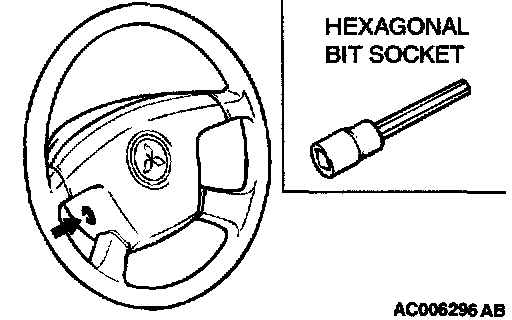

2. Loosen the bolt completely. Then, remove the steering wheel and airbag module assembly.

NOTE: Use a hexagonal bit socket or a hexagonal wrench having an effective length of 75 mm (3.0 inches) or more in the hexagonal section and the diameter of 8 mm (0.31 inches) or more.

INSTALLATION SERVICE POINT
]]A[[ BOLT





Before installing the bolt, coat the mounting hole on the toe board with the specified sealant.
Specified Sealant: 3M AAD Part No. 8633 Windo-weld Resealant or equivalent
