Power Steering Line/Hose: Service and Repair

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS
[[A]] EYE BOLT/RETURN TUBE REMOVAL
1. Loosen the crossmember mounting bolts and nuts, and lower the crossmember to a position so that the eye bolts or return tube at the steering gear side can be removed.

NOTE: In this case, do not remove the crossmember mounting bolts and nuts.
2. Remove the eye bolts or return tube.

INSTALLATION SERVICE POINTS

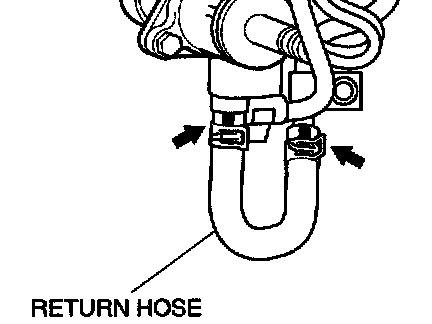

]]A[[ RETURN HOSE INSTALLATION





Install the return hose so that the marking is positioned as shown in the illustration.

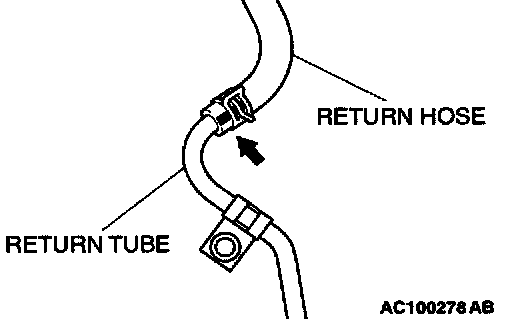

]]B[[ RETURN HOSE INSTALLATION





Install the return hose so that the marking is positioned as shown in the illustration.

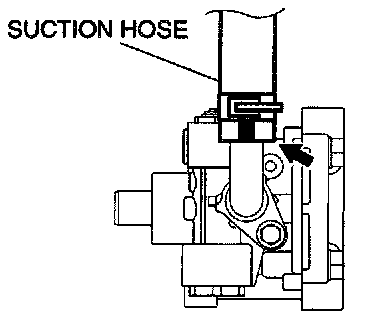

]]C[[ SUCTION HOSE INSTALLATION





Install the suction hose so that the marking is positioned as shown in the illustration.
