GENERAL DESCRIPTION





FEATURES
Power steering has been adopted in all vehicles to make the steering system easier to handle.
^ A 4-spoke steering wheel has been adopted.
^ A steering column with a shock absorbing mechanism and a tilt steering mechanism as been adopted.
^ Integral-type rack and pinion gear with high rigidity and excellent response has been adopted.
^ A vane type pump with a fluid flow rate control system has been mounted which change steering effort according to the engine speed.
^ The separate plastic resin reservoir tank structure is adopted to reduce weight and to make the fluid level check easy.

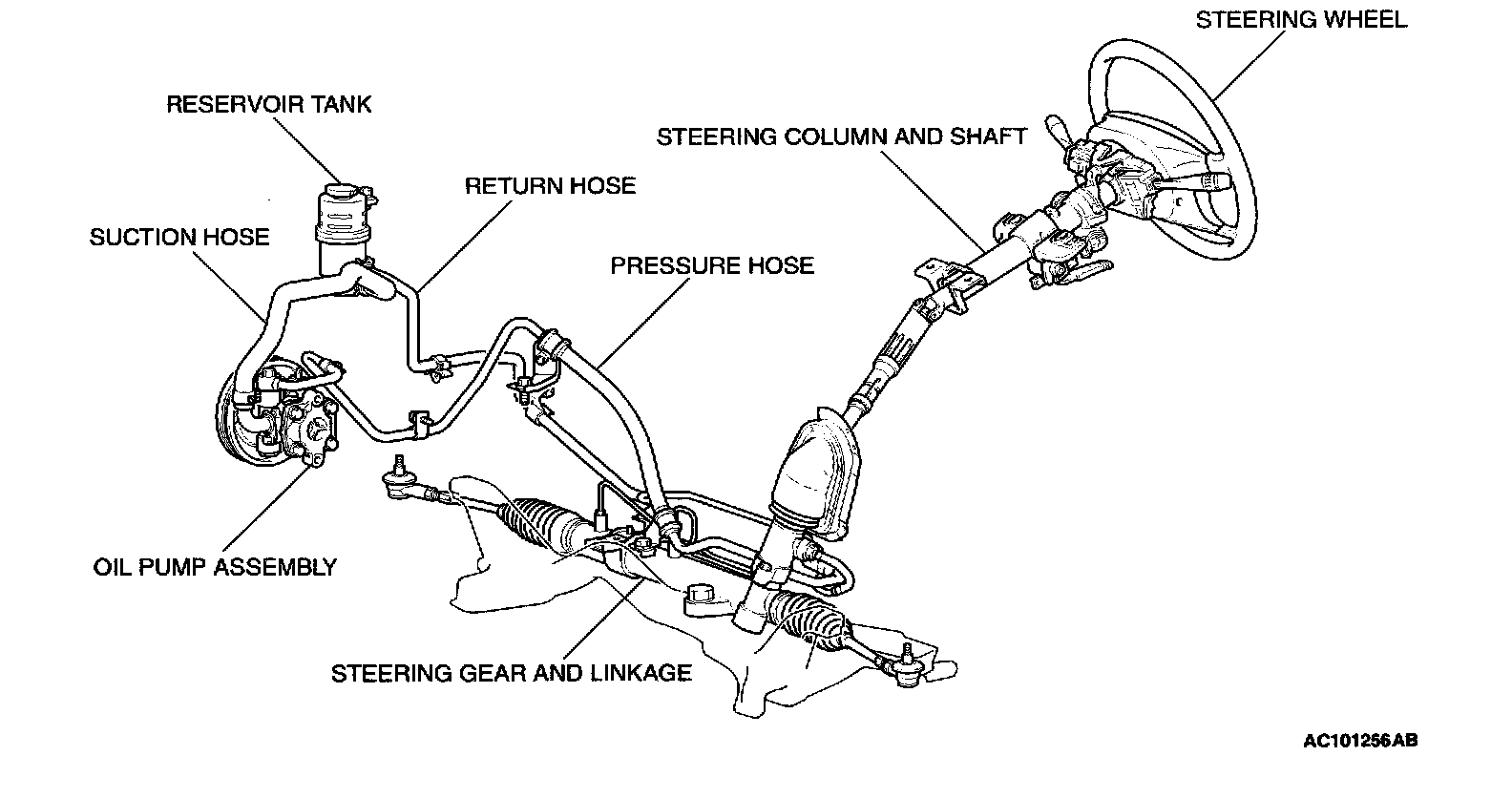

CONSTRUCTION DIAGRAM
