System Specifications

CLUTCH





FASTENER TIGHTENING SPECIFICATIONS

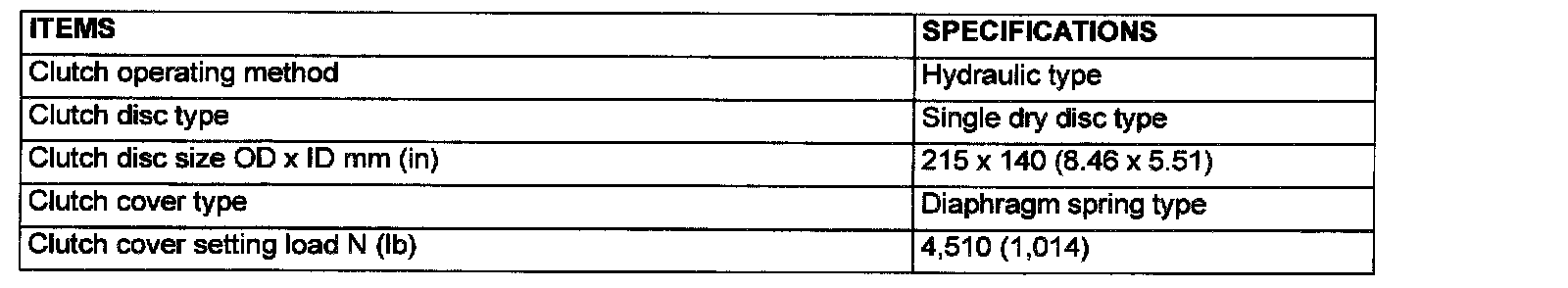

GENERAL SPECIFICATIONS

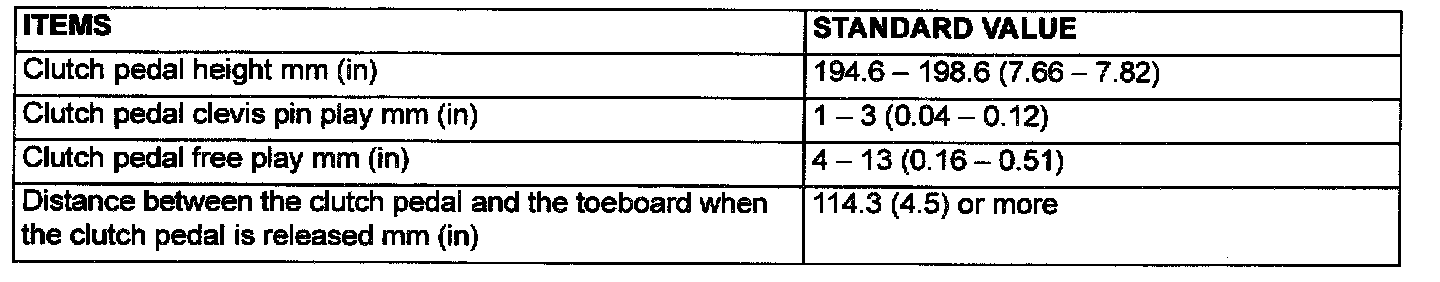

SERVICE SPECIFICATIONS

CLUTCH OVERHAUL





FASTENER TIGHTENING SPECIFICATIONS

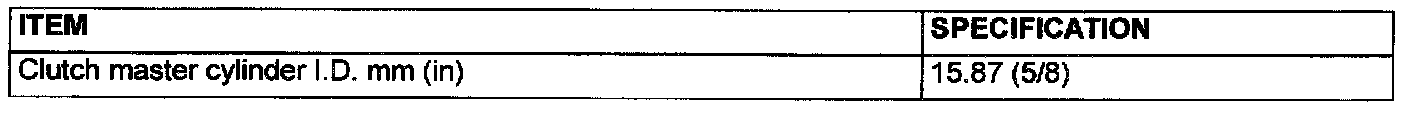

GENERAL SPECIFICATIONS

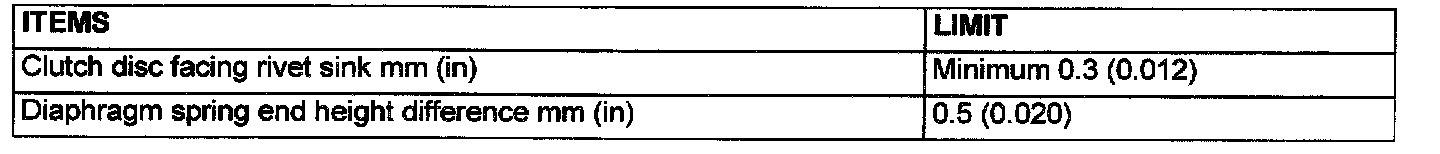

SERVICE SPECIFICATIONS
