Deployment Inside Vehicle

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES
Before disposing of an air bag or a vehicle equipped with an air bag, follow the procedures below to deploy the air bag.

UNDEPLOYED AIR BAG MODULE DISPOSAL

Required Special Tools:
- MB628919 or MR203491: SRS Air Bag Adapter Harness C
- MB686560: SRS Air Bag Adapter Harness B
- MR372530: SRS Air Bag Adapter Harness A

WARNING:
- If the vehicle is to be scrapped or otherwise disposed of, deploy the air bags and operate the seat belt pre-tensioner inside the vehicle. If the vehicle will continue to be used and only the air bag modules and seat belt pre-tensioner are to be disposed of, deploy the air bags and operate the seat belt pre-tensioner outside the vehicle.
- Since a large amount of smoke is produced when the air bag is deployed and the seat belt pretensioner is operated, avoid residential areas whenever possible.
- Since there is loud noise when the air bags are deployed and when the seat belt pre-tensioner are operated, avoid residential areas whenever possible. If anyone is nearby, give warning of the impending noise.
- Suitable ear protection should be worn by personnel performing these procedures or by people in the immediate area.



DEPLOYMENT INSIDE THE VEHICLE (when disposing of a vehicle)

SEAT BELT PRE-TENSIONER

1. Move the vehicle to an isolated spot.

DANGER: Wait at least 60 seconds after disconnecting the battery cables before doing any further work.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING.

2. Disconnect the negative (-) and positive (+) battery cables from the battery terminals, and then remove the battery from the vehicle.




3. Remove the center pillar lower trim.

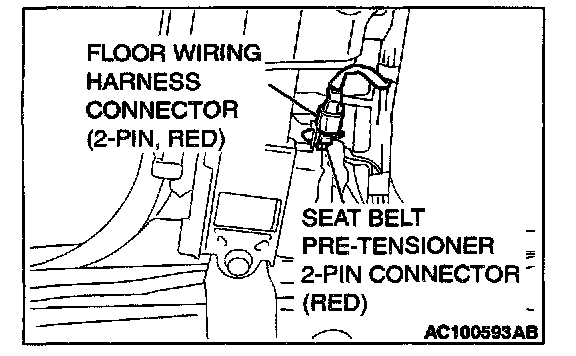

4. Remove the connection between the seat belt pre-tensioner connector (red, two-pin) and the floor wiring harness connector.

NOTE: If the seat belt pre-tensioner connector is disconnected from the floor wiring harness, both electrodes of the seat belt pre-tensioner connector will be automatically shorted to prevent unintended operation of the seat belt pretensioner due to static electricity, etc.




5. Connect deployment wires, each 6 meters (20 feet) or longer, to the two leads of special tool MB686560, and cover the connections with insulation tape. The other ends of the deployment wires should be connected to each other (short- circuited), to prevent sudden unexpected operate of the seat belt pre-tensioner.




6. Connect the seat belt pre-tensioner two-pin connector (red) to special tool MB686560 and move the deployment wires out of the vehicle.






WARNING: If the glass is scratched, seat belt pre-tensioner operation could cause it to crack and fly out of the vehicle, so always put a cover over the vehicle.

7. To suppress the operation sound as much as possible completely close all door windows, close the doors and put the cover on the vehicle.

WARNING:
- Before operating the seat belt pre-tensioner in this manner, first check to be sure that there is no one in or near the vehicle. Wear safety glasses.
- The inflator will be quite hot immediately following the operation, so wait at least 30 minutes to allow it to cool before attempting to handle it. Although no poisonous, do not inhale gas from the seat belt pre-tensioner operation. See Deployed Air Bag and Operated Seat Belt pre-tensioner Disposal Procedures for post operation handling instructions.
- If the seat belt pre-tensioner fails to operate, do not go near the seat belt pre-tensioner. Contact the MMSA Tech Line.

8. At a location as far away from the vehicle as possible, disconnect the two connected wires from each the, and connect them to the two terminals of the battery (which has been removed from the vehicle) to operating the seat belt pre-tensioner.
9. After operation, dispose of the seat belt pre-tensioner according to the Deployed Air Bag Module operated seat belt pre-tensioner Disposal Procedures.
