System Operation

Driver's Side Air Bag Module:

DRIVER'S SIDE AIR BAG MODULE

CAUTION: Never disassemble the air bag module.

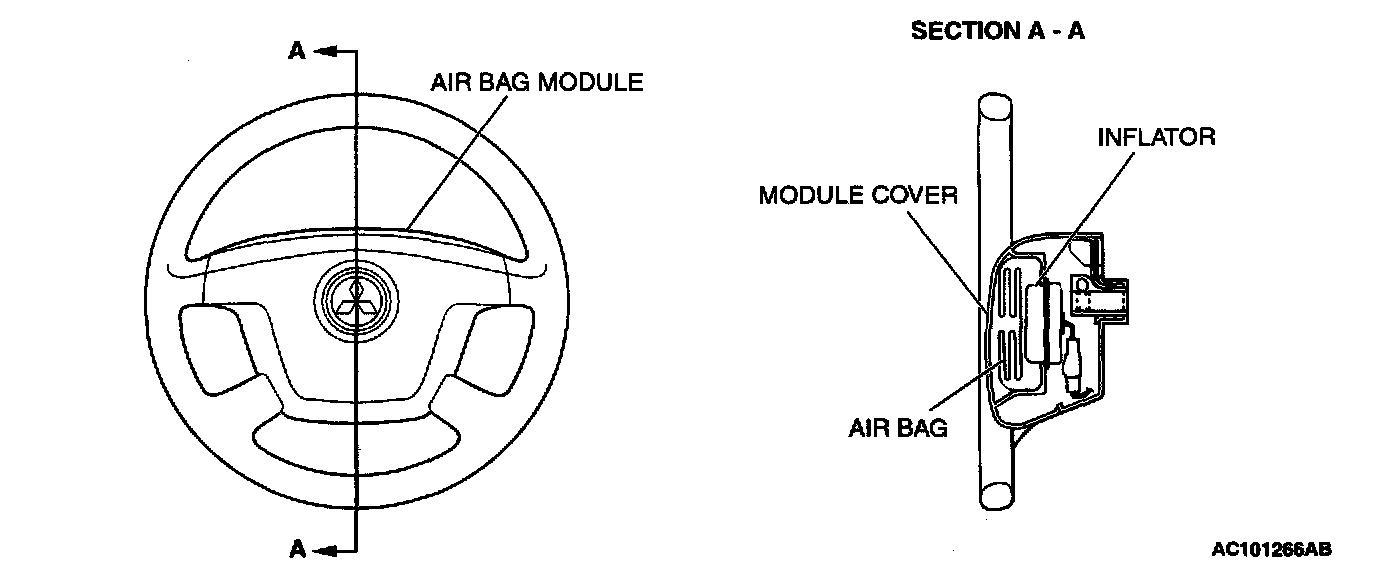

The driver's side air bag module incorporate 4-spoke steering wheel has been installed. The driver's side air bag module is an assembly part consisting of air bag, module cover, inflator, and its their fasteners and is installed to the steering wheel. The air bag is made from nylon and inflates by the gas generating from the inflator. As a passenger is being pressed to the air bag, it deflates discharging gas from two bores at the rear of the air bag to reduce the shock from the impact. An inflator that does not contain sodium azide has been adopted.

Front Passenger's Side Air Bag Module:

FRONT PASSENGER'S SIDE AIR BAG MODULE

CAUTION: Never disassemble the air bag module.

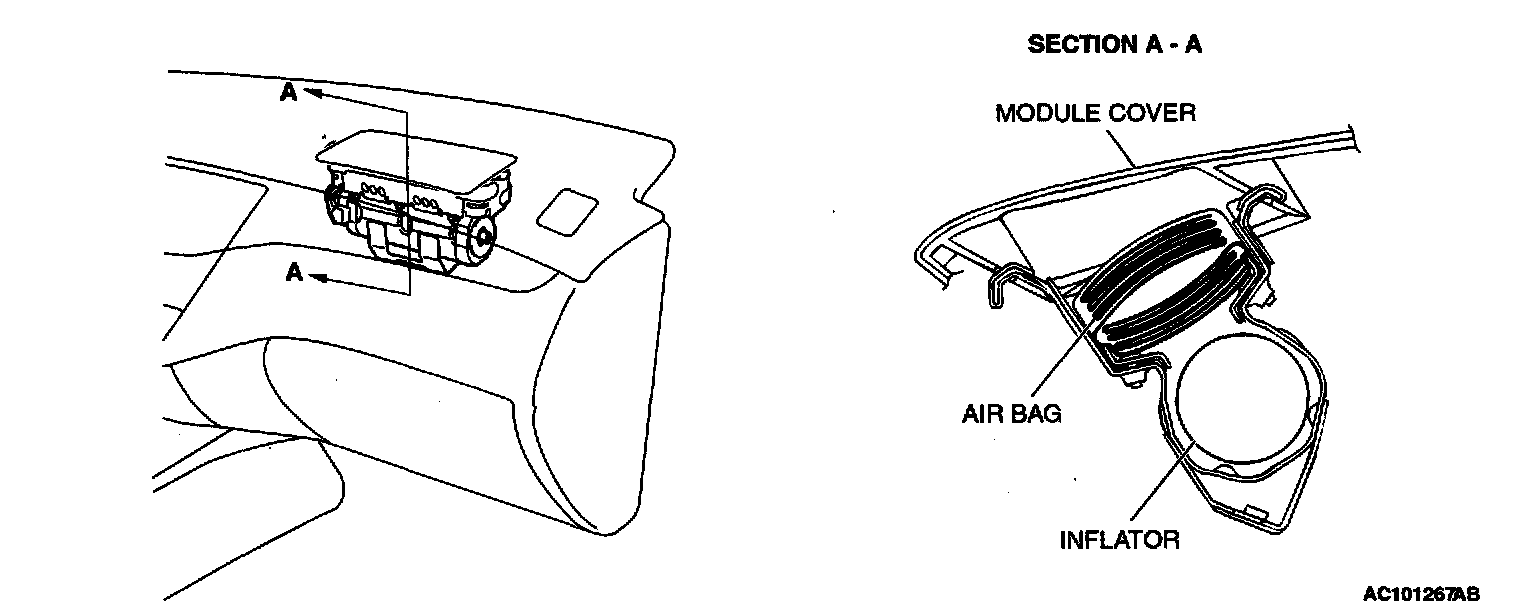

The front passenger's side air bag module consists of air bag, inflator, module cover (incorporating the instrument panel pad), and their fasteners.

The air bag is made from nylon and inflates by the gas generating from the inflator. As a passenger is being pressed to the air bag, it deflates discharging gas from two bores at the rear of the air bag to reduce the shock from the impact.

An inflator that does not contain sodium azide has been adopted.

Side Air Bag Module:

SIDE AIR BAG MODULE

CAUTION: Never disassemble the air bag module.

The side air bag module consists of an air bag, air bag cover, inflator and their fasteners. The modules are installed in the outer side supports of the driver's and front passenger's seatbacks. The side air bags help project the occupants regardless of the seat position and seatback angle.

AIR BAG
The side air bag made of nylon fabric with the inside surface coated with rubber. The air bags are compactly folded and stored under the cover. On the side of the air bag, there are holes through which gas is partially released to alleviate shock to the occupant when the air bag is deployed. An inflator that does not contain sodium azide has been adopted.

AIR BAG COVER
The air bag cover is made of plastic-coated, flame-retardant paper. The cover has a perforated line from which it breaks when the air bag is inflated and deployed.
