Home >> Mitsubishi >> 2002 >> Lancer O-Z Rally Edition L4-2.0L SOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Diagrams >> Electrical Diagrams >> Circuit Diagram

Circuit Diagram

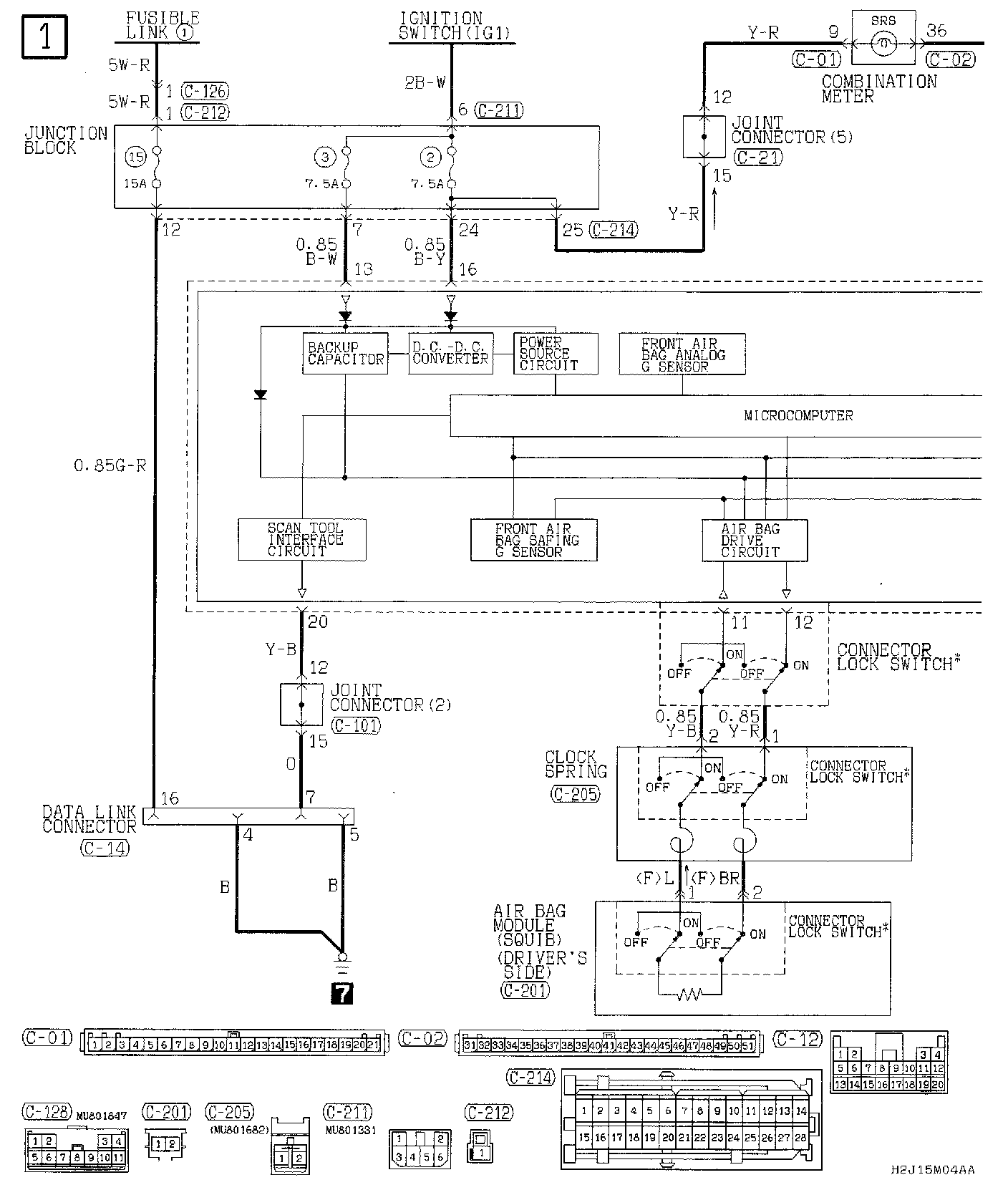

(SRS)(Without Side Air Bag) Part 1:

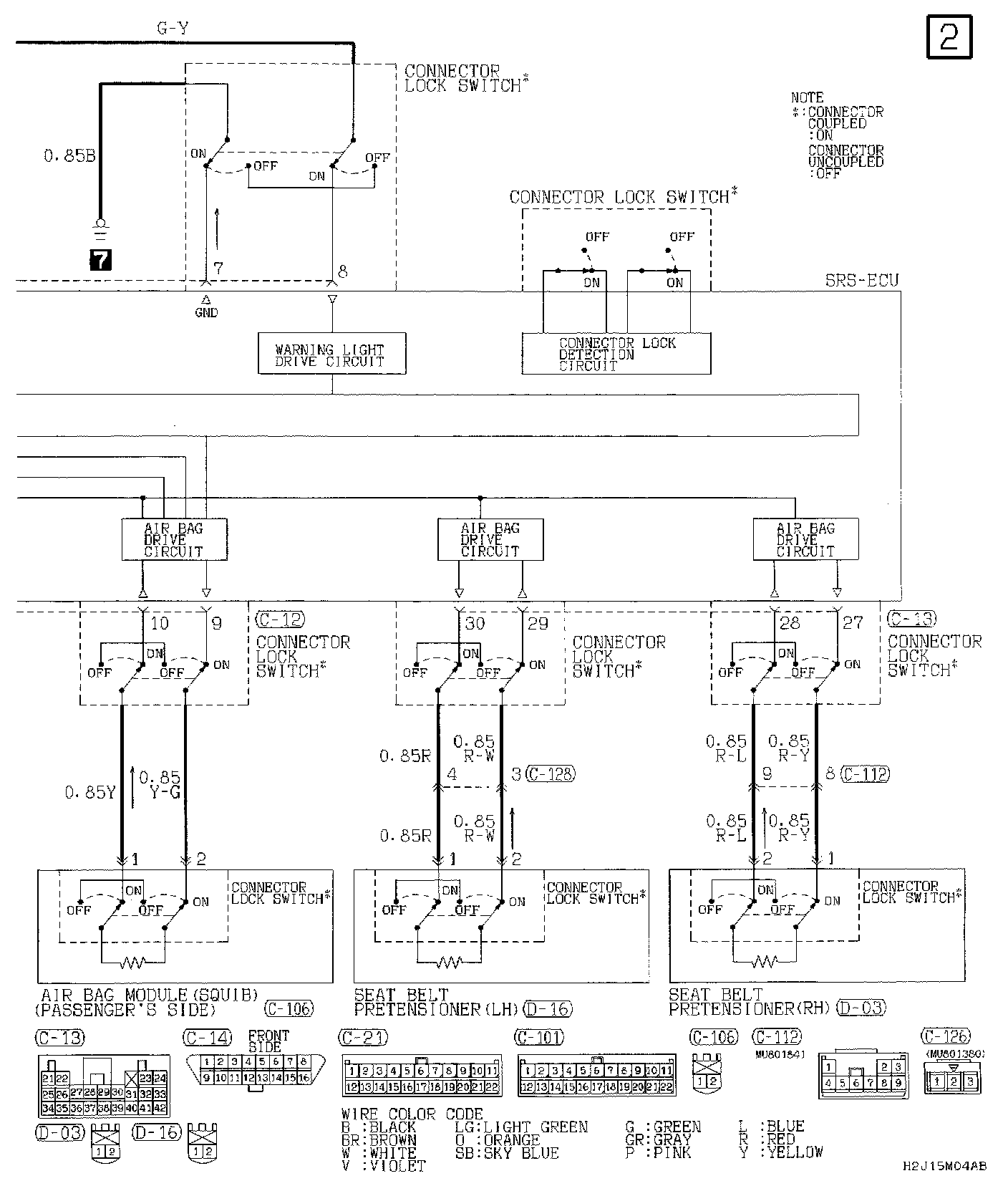

(SRS)(Without Side Air Bag) Part 2:



(SRS)(With Side Air Bag) Part 1:



(SRS)(With Side Air Bag) Part 2:



(SRS)(With Side Air Bag) Part 3:
