Clockspring Assembly / Spiral Cable: Description and Operation

CLOCK SPRING

CAUTION: Never disassemble the clock spring.

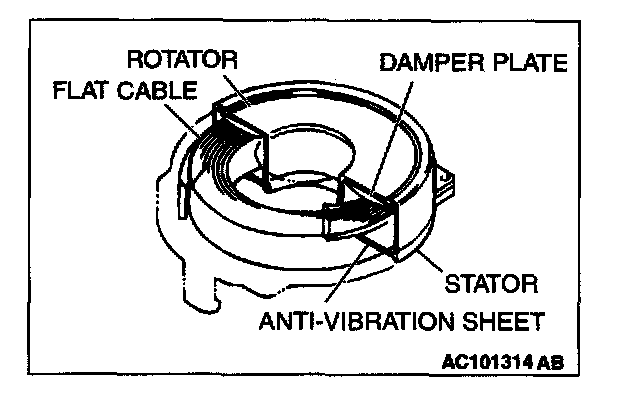

The clock spring consists of a flat cable, rotator, stator, etc.

While this clock spring is essentially the same as before, it does not have a neutral position indication mechanism.

Therefore, the clock spring centering procedures are different.

NOTE: For the clock spring centering procedures, refer to the Service and Repair Information.
