Inspection Procedure 9
INSPECTION PROCEDURE 9: Shift Shock and SlippingCOMMENT
If shift shock when driving are due to upshifting or downshifting and the transaxle speed become higher than the engine speed, the cause is probably abnormal line pressure or a malfunction of a solenoid valve, oil pump, valve body or of a brake or clutch.
TROUBLESHOOTING HINTS (The most likely causes for this code to be set:)
^ Abnormal line pressure
^ Malfunction of each solenoid valve
^ Malfunction of the oil pump
^ Malfunction of the valve body
^ Malfunction of each brake or each clutch
^ Malfunction of the PCM
DIAGNOSIS
Required Special Tool: MB991502: Scan Tool (MUT-II)
STEP 1. Using scan tool MB991602, check actuator test.
CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.
1. Connect scan tool MB991502 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991502 to actuator test mode for following items.
a. Item 01: Low-reverse solenoid valve
b. Item 02: Underdrive solenoid valve
c. Item 03: Second solenoid valve
d. Item 04: Overdrive solenoid valve
^ An operation sound should be heard from solenoid valve when solenoid valve is operated.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are the solenoid valves operating properly?
YES: Go to Step 2.
NO: Repair or replace the solenoid valves. Then confirm that the symptom is eliminated.
STEP 2. Adjust the line pressure. Adjust the line pressure. Then check the symptom.
Q: Is the symptom eliminated?
YES: Go to Step 3.
NO: Go to Step 4.
STEP 3. Check each brake and clutch.
1. Remove the transaxle.
2. Check the facing for seizure and piston seal ring for damage and interference with retainer. Repair or replace the faulty parts. Then check for the symptom.
Q: Is the symptom eliminated?
YES: Diagnosis is complete.
NO: Go to Step 6.
STEP 4. Replace the oil pump.
1. Remove the transaxle.
2. Replace the oil pump. (Oil pump can not be repaired). Then check the symptom.
Q: Is the symptom eliminated?
YES: Diagnosis is complete.
NO: Go to Step5.

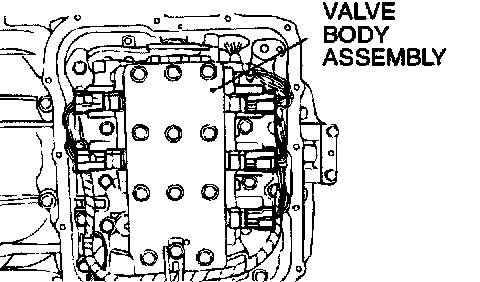

STEP 5. Disassemble and clean the valve body.
Check the O-ring installation bolts for looseness and the valve body for damage. Repair or replace the faulty parts.
Q: Is the repair possible and the symptom eliminated?
YES: Diagnosis is complete.
NO: Replace the valve body assembly. Then check the symptom. Go to Step 6.
STEP 6. Replace the PCM.
Q: Is the symptom eliminated?
YES: Diagnosis is complete.
NO: Start over at Step 1.
