Emission Control Systems: Description and Operation

Emission Control System Diagram:

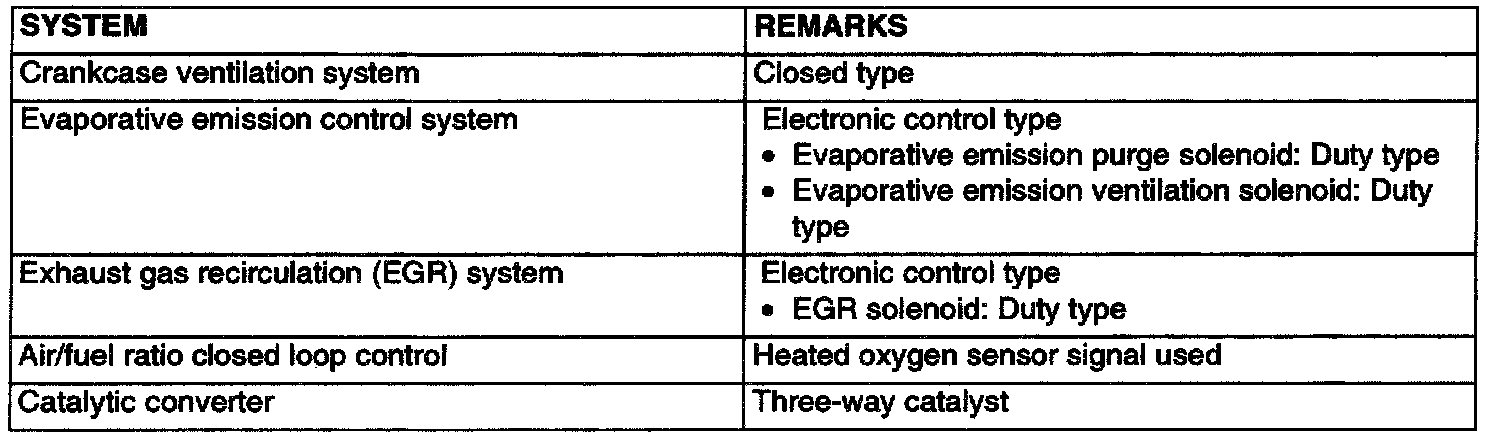

GENERAL DESCRIPTION
The emission control system consists of the following subsystems:
- Positive crankcase ventilation system
- Evaporative emission control system
- Exhaust emission control system

GENERAL INFORMATION
The emission control system is basically the same as that for the 1.8L engine installed in the MIRAGE.
