Home >> Mitsubishi >> 2002 >> Lancer O-Z Rally Edition L4-2.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Chart

Symptom Chart

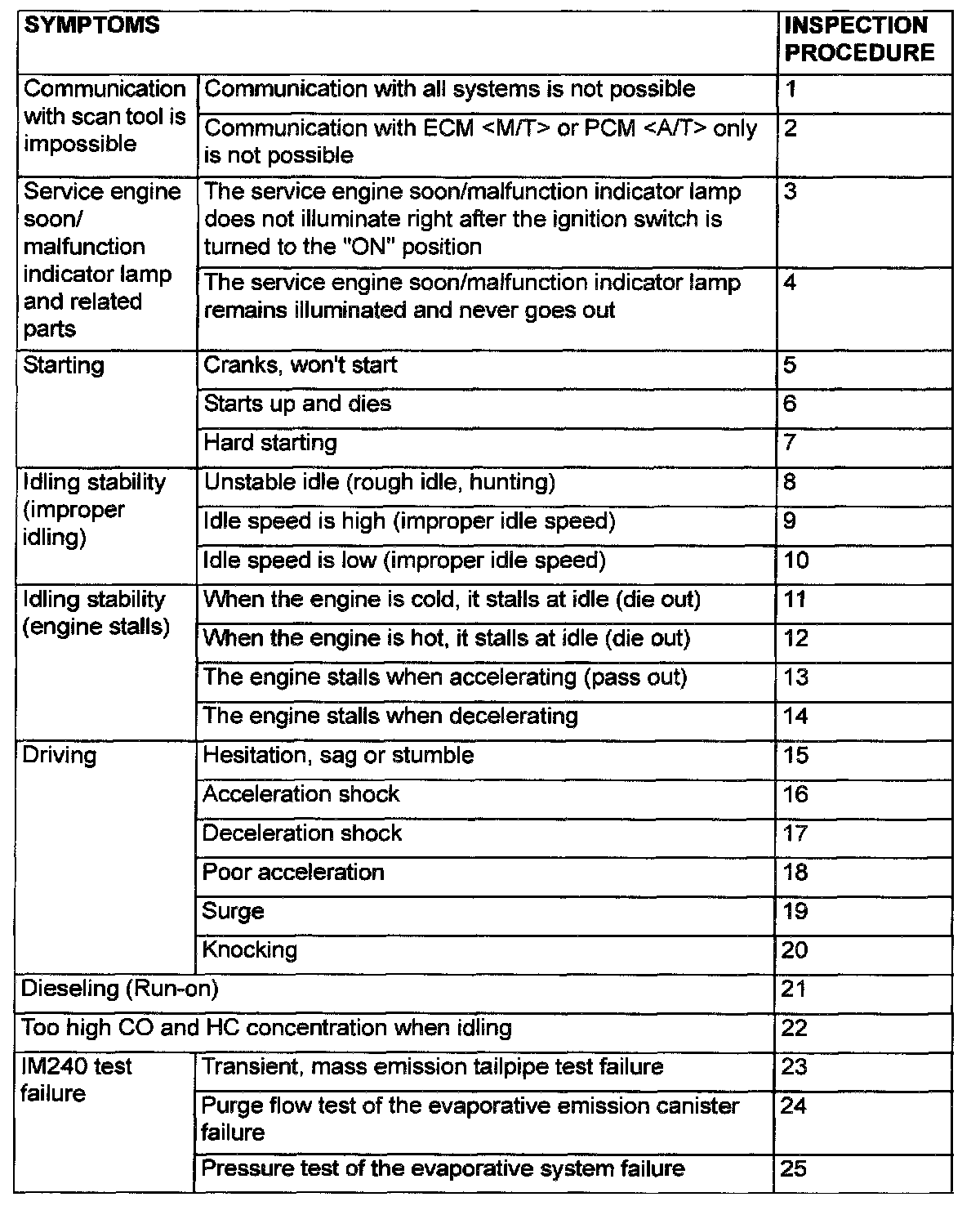

Part 1:

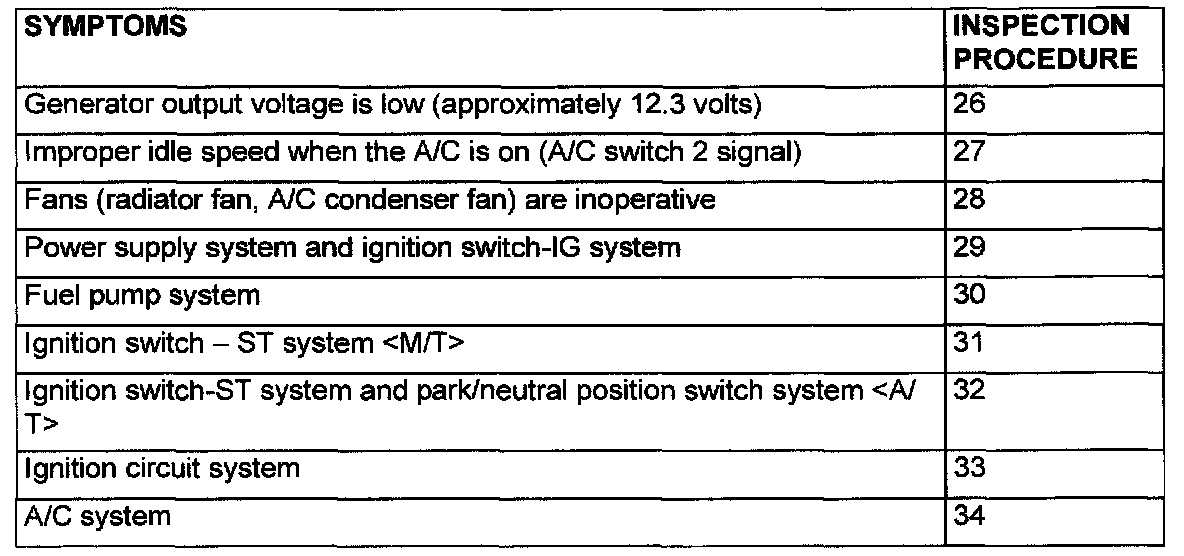

Part 2:






NOTE: Check that the engine control module (ECM) or powertrain control module (PCM) ground circuit is normal before checking for the cause of the problem.
