Inspection Procedure 29
Power Supply System and Ignition Switch-IG SystemPower Supply And Ignition Switch-IG Circuit:
Connectors:
CIRCUIT OPERATION
- Battery positive voltage is applied to the MFI relay (terminals 1, 2).
- When the ignition switch is turned to the "ON" position, the battery positive voltage is applied to the ECM (terminal 82)
- Battery positive voltage is constantly supplied to the ECM (terminal 80)
- The ECM (terminal 13, 26)
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- Malfunction of the ignition switch.
- Malfunction of the MFI relay.
- Improper connector contact, open circuit or short- circuited harness wire.
- Disconnected ECM
- Malfunction of the ECM
DIAGNOSIS
STEP 1. Check connector B-12X at MFI relay for damage.
Q: Is the connector in good condition?
YES: Go to Step 2.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.

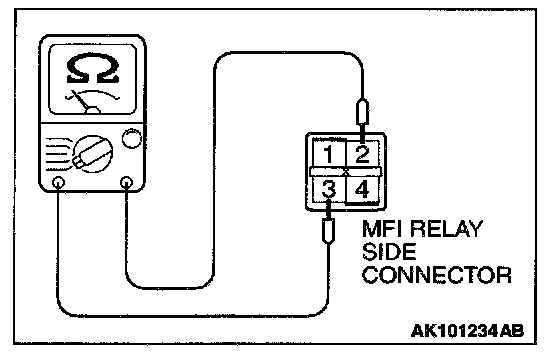

STEP 2. Check the MFI relay.
1. Remove the MFI relay.
2. Check for continuity between the MFI relay terminals 2 and 3.
- There should be continuity. (approximately 70 ohm)
3. Use jumper wires to connect MFI relay terminal 2 to the positive battery terminal and terminal 3 to the negative battery terminal.
4. Check the continuity between the MFI relay terminals 1 and 4 while connecting and disconnecting the jumper wire at the negative battery terminal.
- Should be less than 2 ohm. (Negative battery terminal connected)
- Should be open loop. (Negative battery terminal disconnected)
5. Install the MFI relay.
Q: Is the voltage normal?
YES: Go to Step 3.
NO: Replace the MFI relay. Then confirm that the malfunction symptom is eliminated.

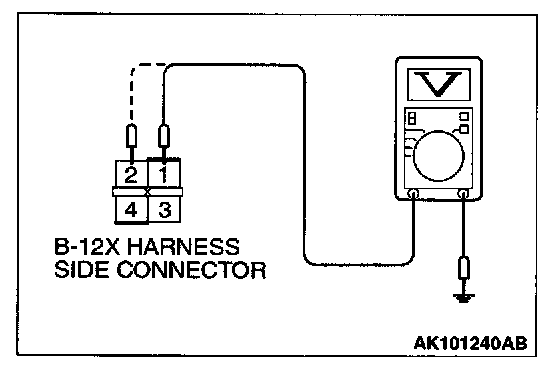

STEP 3. Check the power supply voltage at MFI relay harness side connector B-12X.
1. Disconnect the connector B-12X and measure at the harness side.
2. Measure the voltage between terminal 1, 2 and ground.
- Voltage should be battery positive voltage.
Q: Is the voltage normal?
YES: Go to Step 4.
NO: Check harness connector A-13 at intermediate connector for damage, and repair or replace as required. Refer to, Harness Connector Inspection. If intermediate connector is in good condition, repair harness wire between dedicated fuse (3) and MFI relay connector B-12X terminal 1, 2 because of open circuit. Then confirm that the malfunction symptom is eliminated.

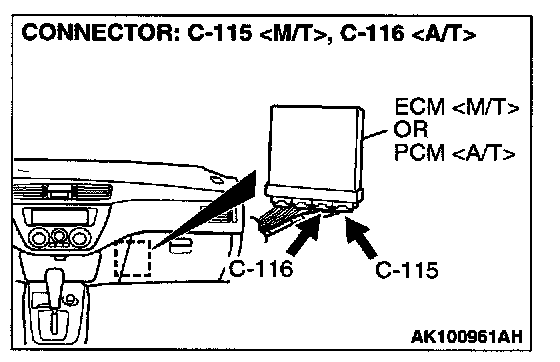

STEP 4. Check connector C-115 at ECM
Q: Is the connector in good condition?
YES: Go to Step 5.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.

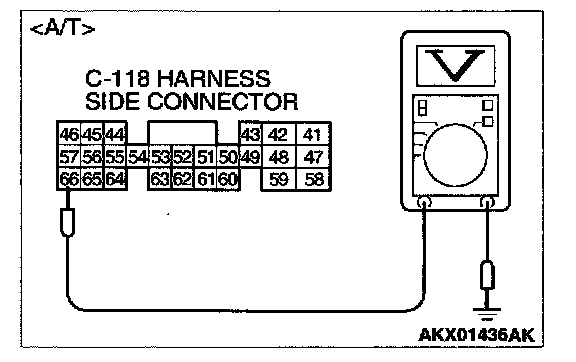

STEP 5. Check the ignition switch-IG signal voltage at ECM harness side connector C-115
1. Disconnect the connector C-115
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal 82
- Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage normal?
YES: Go to Step 6.
NO: Check harness connector C-123, C-210 and C-211 at intermediate connector for damage, and repair or replace as required. Refer to, Harness Connector Inspection. If intermediate connectors are in good condition repair harness wire between ignition switch connector C-201 terminal 2 and ECM connector C-115 terminal 82

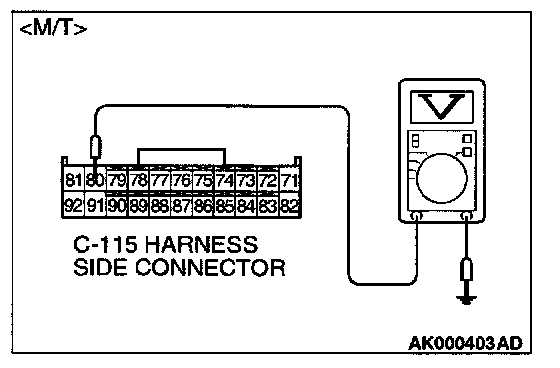

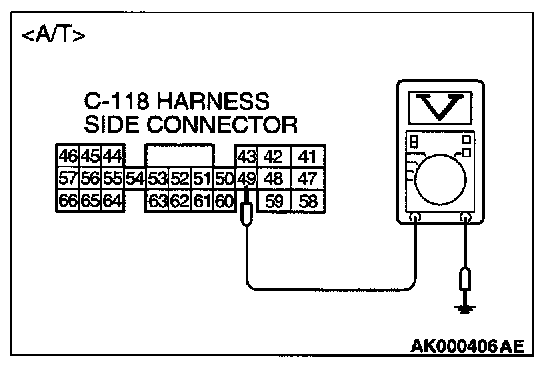

STEP 6. Check the backup power supply voltage at ECM harness side connector C-115
1. Disconnect the connector C-115
2. Measure the voltage between terminal 80
- Voltage should be battery positive voltage.
Q: Is the voltage normal?
YES: Go to Step 7.
NO: Check harness connector C-05, C-123 and C-129 at intermediate connector for damage, and repair or replace as required. Refer to, Harness Connector Inspection. If intermediate connectors are in good condition, repair harness wire between dedicated fuse (4) and ECM connector C- 115 terminal 80
STEP 7. Check the continuity at ECM harness side connector C-121
1. Disconnect the connector C-121
2. Check for the continuity between terminal (13, 26)
- Should be less than 2 ohm.
Q: Is the continuity normal?
YES: Go to Step 8.
NO: Repair harness wire between ECM connector C-121 terminal (13, 26)
STEP 8. Check the power supply voltage at ECM harness side connector C-119
1. Disconnect the connector C-119
2. Measure the voltage between terminal 38
- Voltage should be battery positive voltage.
Q: Is the voltage normal?
YES: Go to Step 9.
NO: Repair harness wire between MFI relay connector B-12X terminal 3 and ECM connector C-119 terminal 38

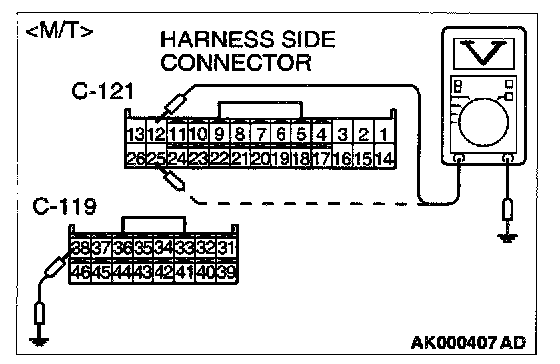

STEP 9. Check the power supply voltage at ECM harness side connector C-121, C-119
1. Disconnect the connector C-121, C-119
2. Using a jumper wire, connect terminal 38
3. Measure the voltage between terminal (12, 25)
- Voltage should be battery positive voltage.
Q: Is the voltage normal?
YES: Replace the ECM or PCM. Then confirm that the malfunction symptom is eliminated.
NO: Check connector C-105 at intermediate connector for damage, and repair or replace as required. Refer to Harness Connector Inspection. If intermediate connector is in good condition, repair harness wire between MFI relay connector B-12X terminal 4 and ECM connector C-121 terminal (12, 25)
