Inspection Procedure L-1

The ETACS-ECU does not Receive Any Signal from the Ignition Switch (ACC)

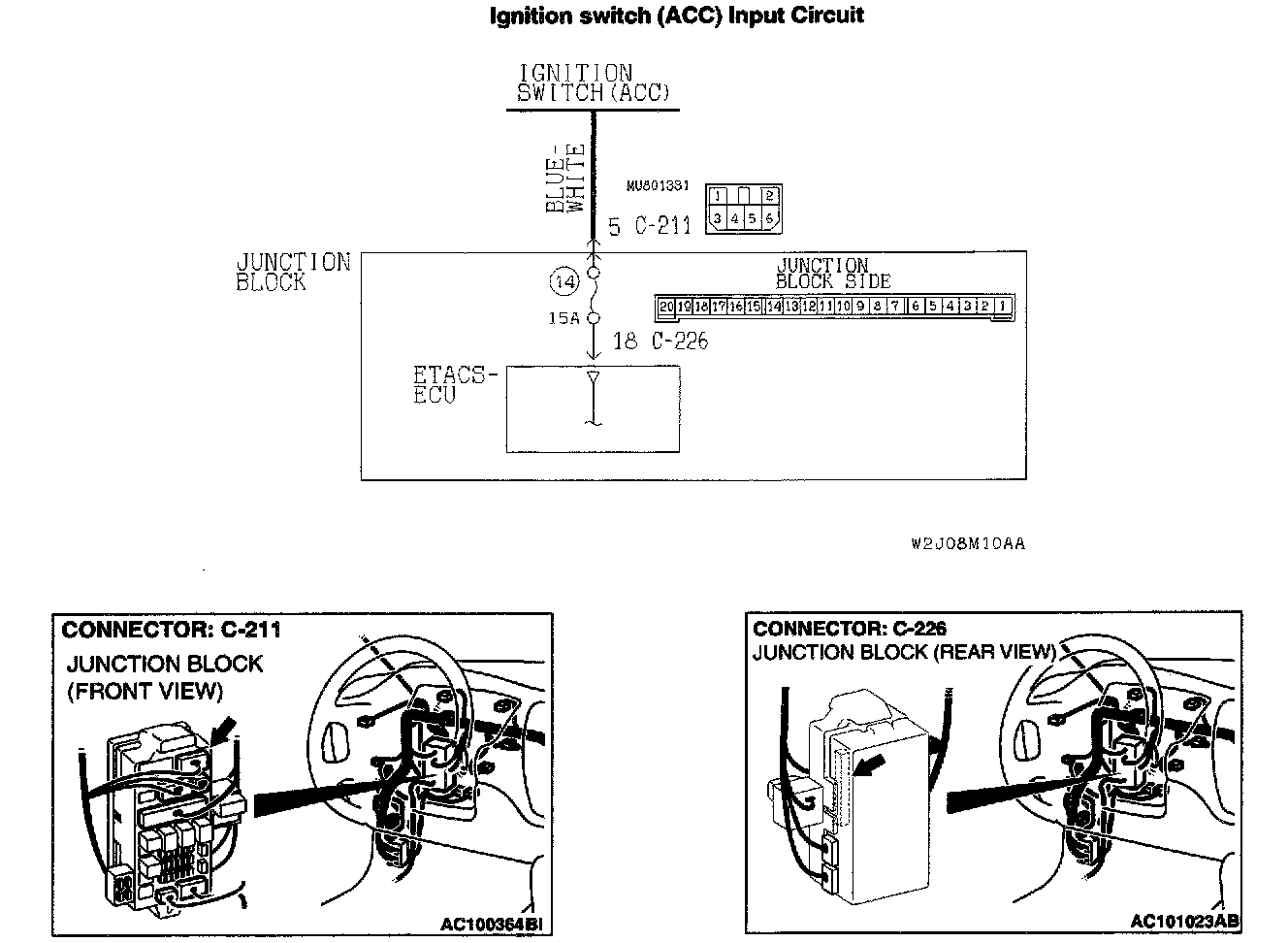

Ignition Switch (ACC) Input Circuit:

CIRCUIT OPERATION
The ETACS-ECU operates the following equipment according to signal from the ignition switch (ACC):
- Windshield wiper and washer
- Rear wiper and washer

TECHNICAL DESCRIPTION (COMMENT)
If the signal is not normal, the equipment, which is described in "CIRCUIT OPERATION", does network normally.

TROUBLESHOOTING HINTS
- Malfunction of the ETACS-ECU
- Damaged harness wires or connectors

DIAGNOSIS

Required Special Tools:
- MB991223: Test Harness Set
- MB991502: Scan Tool (MUT-II)




STEP 1. Measure at ETACS-ECU connector C-226 in order to check the line from the ignition switch (ACC).

1. Disconnect ETACS-ECU connector C-226, and measure at the junction block side.
2. Turn the ignition switch to the "ACC" position.
3. Measure the voltage between terminal 18 and ground.
- The measured value should be approximately 12 volts (battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES: Replace the ETACS-ECU. If the equipment, which are described in "CIRCUIT OPERATION", work normally, the input signal from the ignition switch (ACC) should be normal.

NO: Go to Step 2.




STEP 2. Check ETACS-ECU connector C-226 for damage.

Q: Is ETACS-ECU connector C-226 in good condition?

YES: Go to Step 3.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. If the equipment, which are described in "CIRCUIT OPERATION", work normally, the input signal from the ignition switch (ACC) should be normal.







STEP 3. Check the wiring harness between ETACS-ECU connector C-226 and the ignition switch (ACC).

NOTE: Also check junction block connector C-211. If junction block connector C-211 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between ETACS-ECU connector C-226 and ignition switch (ACC) in good condition?

YES: No action to be taken.

NO: Repair the wiring harness. If the equipment, which are described in "CIRCUIT OPERATION", work normally, the input signal from the ignition switch (ACC) should be normal.
