Inspection Procedure K-4

Interior Lamp: The Interior Lamp Automatic Shut-down Function does not Operate Correctly

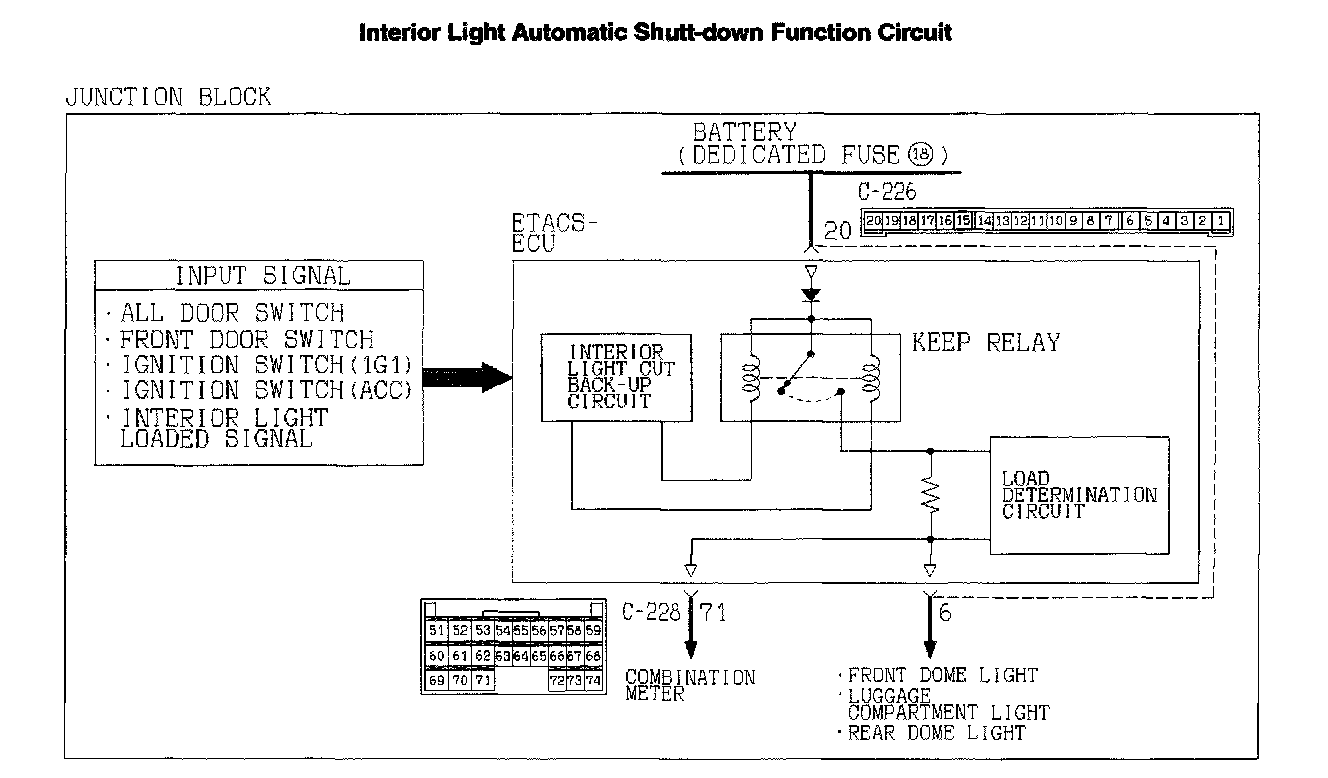

Interior Light Automatic Shut-down Function Circuit:

NOTE: This troubleshooting requires use of scan tool MB991502 and SWS monitor kit MB991862. For details of how to use the SWS monitor, refer to "How to use SWS monitor".

CIRCUIT OPERATION
The ETACS-ECU operates the interior light automatic shutdown function according to the following switch signals:
- Ignition switch (ACC)
- Ignition switch (IG1)
- Front door switch (LH)
- All door switches
- Multi-purpose fuse No. 17-loaded signal

TECHNICAL DESCRIPTION (COMMENT)
If the function does not work normally, the input circuit system from the switches or the ETACS-ECU may be defective (refer to "CIRCUIT OPERATION").

TROUBLESHOOTING HINTS
- Malfunction of the door switch
- Malfunction of the ETACS-ECU
- Damaged harness wires or connectors

DIAGNOSIS

Required Special Tools:
- MB991223: Test Harness Set
- MB991502: Scan Tool (MUT-II)
- MB991862: SWS monitor kit

STEP 1. Check the configuration function.

Q: Is the interior light automatic shutdown function enabled by the adjustment function?

YES: Go to STEP 2.

NO: Enable the interior light automatic shutdown function by using the adjustment function. Check that the interior light automatic shutdown function works normally.

STEP 2. Check the front dome light and the rear dome light.

If the front dome light switch and the rear dome light switch are moved to the "door interlock position", the front dome light and the rear dome light should illuminate when either door is opened.

Q: Do the front dome light and the rear dome light illuminate normally?
Both the front dome light and the rear dome light illuminate normally. : Go to Step 3.
Neither the front dome light nor the rear dome light illuminates normally. : Refer to Inspection Procedure K-1 "Front dome light, rear dome light and luggage compartment light do not illuminate or go out normally"
Either the front dome light or the rear dome light illuminates normally. : Refer to Inspection Procedure K-2 "Front dome light, rear dome light or luggage compartment light do not illuminates or goes out normally."







STEP 3. Use scan tool to select "ECU CHECK" on the SWS monitor display.

Check the ETACS-ECU.

CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502. Also connect SWS monitor kit MB991862 after turning on scan tool MB991502.

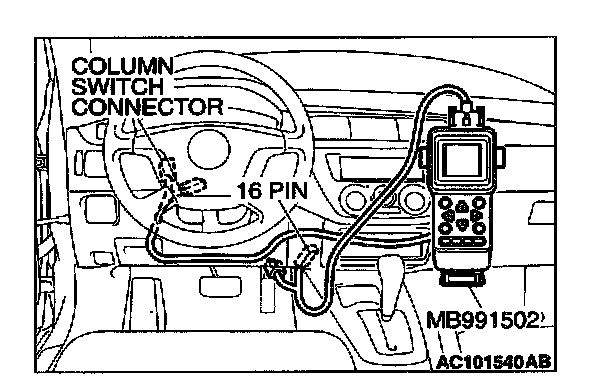

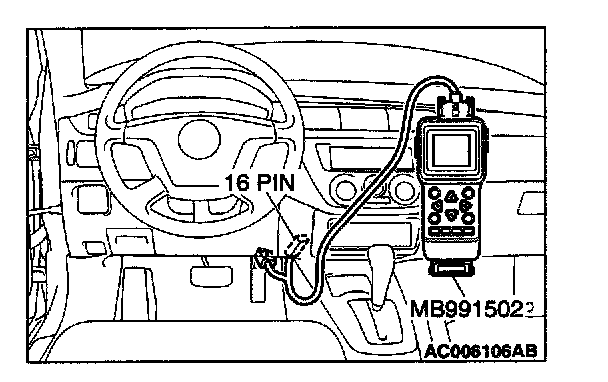

1. Connect scan tool MB991502 to the data link connector.
2. Connect SWS monitor kit MB991862 to the column switch connector.
3. When the ignition switch is turned to the "LOCK" (OFF) position, scan tool MB991502 should show "OK" on the "ETACS ECU" menu.

Q: Is "OK" displayed on the "ETACS ECU" menu?

YES: Go to STEP 4.

NO: Refer to Inspection Procedure A-3 "Communication with ETACS-ECU is impossible."

STEP 4. Check the input signal by using service data of the SWS monitor.

Check the input signals from the following switches:
- Ignition switch: OFF
- Driver's door: open










Select "ETACS ECU" (DATALIST), and check that normal conditions are displayed on the items described in the table.

Q: Are normal conditions displayed on the "IG SW (IG1)", "IG SW (ACC)" and "FRONT DOOR SW"?

YES: Go to STEP 5.

NO:
- Normal condition is not displayed on the "IG SW (IG1)": Refer to Inspection Procedure L-2 "ETACS-ECU does not receive a signal from the ignition switch (IG1)."
- Normal condition is not displayed on the "IG SW (ACC)": Refer to Inspection Procedure L-1 "ETACS-ECU does not receive a signal from the ignition switch (ACC)."
- Normal condition is not displayed on the "FRONT DOOR SW: Refer to Inspection Procedure L-5 "ETACS-ECU does not receive a signal from the driver's or the front passenger's door switch."

STEP 5. Check the input signal (by using the Pulse check).

Check the following switches and input signal:
- All door switches
- Interior light loaded signal







- If the switches (see table), which are applicable for the input signal check, are operated, check if scan tool MB991502 sounds or not.

Q: When each door switch and the interior light are operated, does scan tool MB991502 sound in each case?

YES: Replace the ETACS-ECU. Check that the dome light illuminates normally.

NO:
- When one of the doors is opened and closed, scan tool MB991502 does not sound: Refer to Inspection Procedure M-4 "ETACS-ECU does not receive a signal from all the door switches."
- When one of the interior lights is illuminated, scan tool MB991502 does not sound: Refer to Inspection Procedure M-11 "ETACS-ECU does not receive any multi-purpose fuse No. 17 loaded signal."
