Part 2

Flasher Timer: The Right or Left Turn-signal Light does not Illuminate (Continued)




STEP 20. Check side turn-signal light (LH) connector A-02 for damage.

Q: Is the side turn-signal light (LH) connector A-02 in good condition?

YES: Go to Step 21.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the turn-signal lights illuminate normally.




STEP 21. Check the wiring harness between side turn-signal light (LH) connector A-02 and ground.

Q: Is the wiring harness between side turn-signal light (LH) connector A-02 and ground in good condition?

YES: Replace the socket. Check that the turn-signal lights illuminate normally.

NO: Repair the wiring harness. Check that the turn-signal lights illuminate normally.

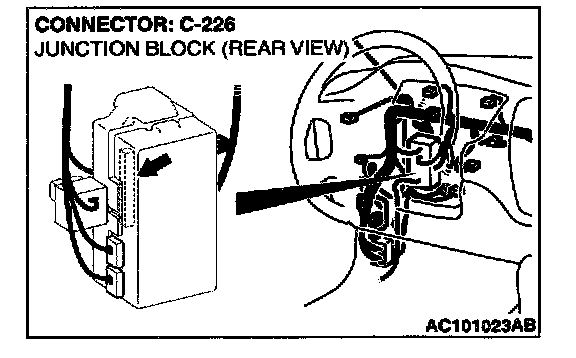

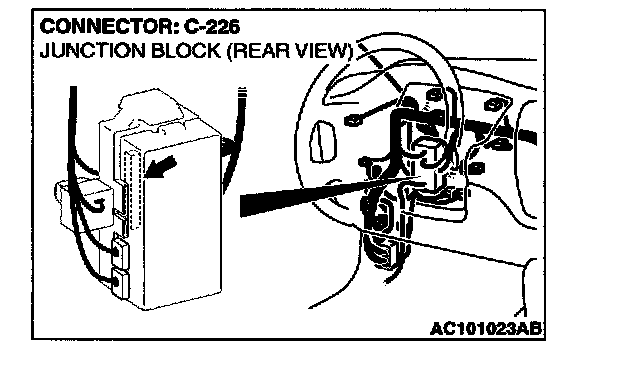

STEP 22. Check side turn-signal light (LH) connector A-02 and ETACS-ECU connector C-226 for damage.

Q: Are side turn-signal light (LH) connector A-02 and ETACS-ECU connector C-226 in good condition?

YES: Go to Step 23.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the turn-signal lights illuminate normally.













STEP 23. Check the wiring harness between side turn-signal light (LH) connector A-02 and ETACS-ECU connector C-226.

NOTE: Also check junction block connector C-210 and intermediate connector C-129. If junction block connector C-210 or intermediate connector C-129 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between side turn-signal light (LH) connector A-02 and ETACS-ECU connector C-226 in good condition?

YES: Replace the socket. Check that the turn-signal lights illuminate normally.

NO: Repair the wiring harness. Check that the turn-signal lights illuminate normally.

STEP 24. Check the side turn-signal light bulb (RH).

1. Remove the side turn-signal light (RH) bulb.
2. Check that the side turn-signal light bulb (RH) is not broken.

Q: Is the side turn-signal light (RH) bulb in good condition?

YES: Go to Step 25.

NO: Replace the side turn-signal light (RH) bulb. Check that the turn-signal lights illuminate normally.




STEP 25. Measure at side turn-signal light (RH) connector A-01 in order to check the ground circuit to the side turn-signal light (RH).

1. Disconnect side turn-signal light (RH) connector A-01, and measure at the wiring harness side.
2. Measure the resistance value between terminal 1 and ground.
- The measured value should be 2 Ohm or less.

Q: Does the measured resistance value correspond with this range?

YES: Go to Step 28.

NO: Go to Step 26.




STEP 26. Check side turn-signal light (RH) connector A-01 for damage.

Q: Is the side turn-signal light (RH) connector A-01 in good condition?

YES: Go to Step 27.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the turn-signal lights illuminate normally.




STEP 27. Check the wiring harness between side turn-signal light (RH) connector A-01 and ground.

Q: Is the wiring harness between side turn-signal light (RH) connector A-01 and ground in good condition?

YES: Replace the socket. Check that the turn-signal lights illuminate normally.

NO: Repair the wiring harness. Check that the turn-signal lights illuminate normally.







STEP 28. Check side turn-signal light (RH) connector A-01 and ETACS-ECU connector C-226 for damage.

Q: Are side turn-signal light (RH) connector A-01 and ETACS-ECU connector C-226 in good condition?

YES: Go to Step 29.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the turn-signal lights illuminate normally.













STEP 29. Check the wiring harness between side turn-signal light (RH) connector A-01 and ETACS-ECU connector C-226.

NOTE: Also check junction block connector C-210 and intermediate connector C-111. If junction block connector C-210 or intermediate connector C-111 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between side turn-signal light (RH) connector A-01 and ETACS-ECU connector C-226 in good condition?

YES: Replace the socket. Check that the turn-signal lights illuminate normally.

NO: Repair the wiring harness. Check that the turn-signal lights illuminate normally.

STEP 30. Check the rear turn-signal light bulb (LH).

1. Remove the rear turn-signal (LH) light bulb.
2. Check that the rear turn-signal light bulb (LH) is not broken.

Q: Is the rear turn-signal (LH) light bulb in good condition?

YES: Go to Step 31.

NO: Replace the rear turn-signal (LH) light bulb. Check that the turn-signal lights illuminate normally.




STEP 31. Measure at rear combination light (LH) connector F-14 in order to check the ground circuit to the rear combination light (LH).

1. Disconnect rear combination light (LH) connector F-14, and measure at the wiring harness side.
2. Measure the resistance value between terminal 5 and ground.
- The measured value should be 2 Ohm or less.

Q: Does the measured resistance value correspond with this range?

YES: Go to Step 34.

NO: Go to Step 32.




STEP 32. Check rear combination light (LH) connector F-14 for damage.

Q: Is rear combination light (LH) connector F-14 in good condition?

YES: Go to Step 33.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the turn-signal lights illuminate normally.




STEP 33. Check the wiring harness between rear combination light (LH) connector F-14 and ground.

Q: Is the wiring harness between rear combination light (LH) connector F-14 and ground in good condition?

YES: Replace the socket assembly Check that the turn-signal lights illuminate normally.

NO: Repair the wiring harness. Check that the turn-signal lights illuminate normally.







STEP 34. Check rear combination light (LH) connector F-14 and ETACS-ECU connector C-226 for damage.

Q: Are rear combination light (LH) connector F-14 and ETACS-ECU connector C-226 in good condition?

YES: Go to Step 35.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the turn-signal lights illuminate normally.










STEP 35. Check the wiring harness between rear combination light (LH) connector F-14 and ETACS-ECU connector C-226.

NOTE: Also check junction block connector C-217. If junction block connector C-217 is damaged, repair or replace the connector as described in Harness Connector Inspection

Q: Is the wiring harness between rear combination light (LH) connector F-14 and ETACS-ECU connector C-226 in good condition?

YES: Replace the socket assembly. Check that the turn-signal lights illuminate normally.

NO: Repair the wiring harness. Check that the turn-signal lights illuminate normally.

STEP 36. Check the rear turn-signal light bulb (RH).

1. Remove the rear turn-signal (RH) light bulb.
2. Check that the rear turn-signal light bulb (RH) is not broken.

Q: Is the rear turn-signal (RH) light bulb in good condition?

YES: Go to Step 37.

NO: Replace the rear turn-signal (RH) light bulb. Check that the turn-signal lights illuminate normally.

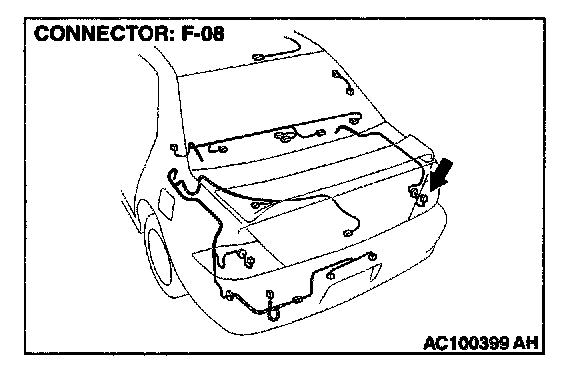

STEP 37. Measure at rear combination light (RH) connector F-08 in order to check the ground circuit to the rear turn- signal light (RH).

1. Disconnect rear combination light (RH) connector F-08, and measure at the wiring harness side.
2. Measure the resistance value between terminal 5 and ground.
- The measured value should be 2 Ohm or less.

Q: Does the measured resistance value correspond with this range?

YES: Go to Step 40.

NO: Go to Step 38.




STEP 38. Check rear combination light (RH) connector F-08 for damage.

Q: Is rear combination light (RH) connector F-08 in good condition?

YES: Go to Step 39.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the turn-signal lights illuminate normally.




STEP 39. Check the wiring harness between rear combination light (RH) connector F-08 and ground.

Q: Is the wiring harness between rear combination light (RH) connector F-08 and ground in good condition?

YES: Replace the socket assembly. Check that the turn-signal lights illuminate normally.

NO: Repair the wiring harness. Check that the turn-signal lights illuminate normally.







STEP 40. Check rear combination light (RH) connector F-08 and ETACS-ECU connector C-226 for damage.

Q: Are rear combination light (RH) connector F-08 and ETACS-ECU connector C-226 in good condition?

YES: Go to Step 41.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the turn-signal lights illuminate normally.













STEP 41. Check the wiring harness between rear combination light (RH) connector F-08 and ETACS-ECU connector C-226.

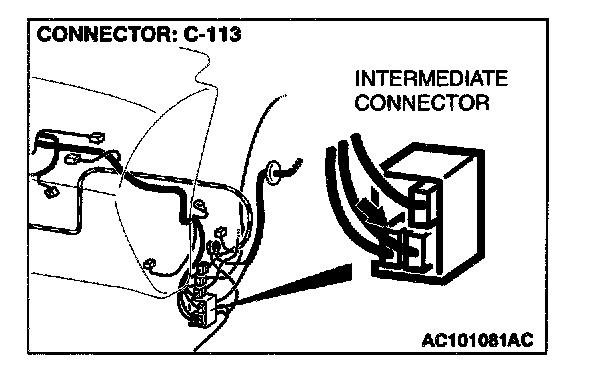

NOTE: Also check junction block connector C-210 and intermediate connector C-113. If junction block connector C-210 or intermediate connector C-113 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between rear combination light (RH) connector F-08 and ETACS-ECU connector C-226 in good condition?

YES: Replace the socket assembly. Check that the turn-signal lights illuminate normally.

NO: Repair the wiring harness. Check that the turn-signal lights illuminate normally.







STEP 42. Check combination meter connector C-01 and ETACS-ECU connector C-226 for damage.

Q: Are combination meter connector C-01 and ETACS-ECU connector C-226 in good condition?

YES: Go to Step 43.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the turn-signal lights illuminate normally.










STEP 43. Check the wiring harness between combination meter connector C-01 and ETACS-ECU connector C-226.

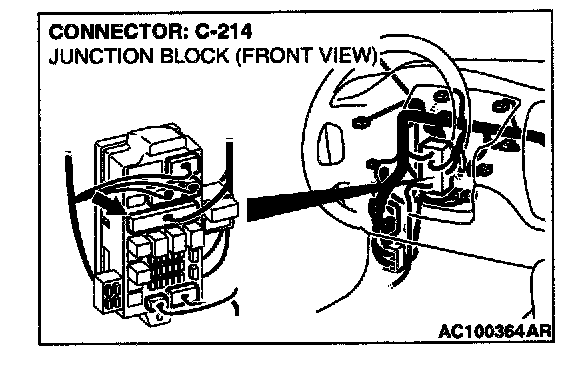

NOTE: Also check junction block connector C-214. If junction block connector C-214 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between combination meter connector C-01 and ETACS-ECU connector C-226 in good condition?

YES: Replace the combination meter. Check that the turn-signal lights illuminate normally.

NO: Repair the wiring harness. Check that the turn-signal lights illuminate normally.

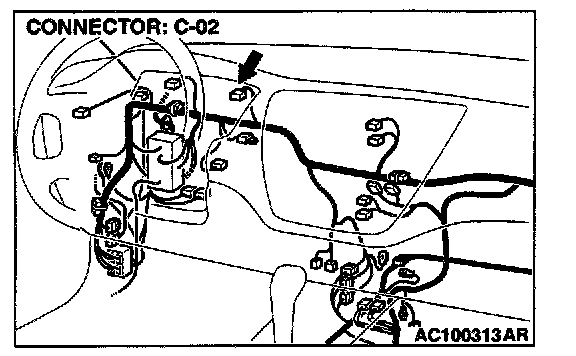

STEP 44. Check combination meter connector C-02 and ETACS-ECU connector C-226 for damage.

Q: Are combination meter connector C-02 and ETACS-ECU connector C-226 in good condition?

YES: Go to Step 45.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the turn-signal lights illuminate normally.










STEP 45. Check the wiring harness between combination meter connector C-02 and ETACS-ECU connector C-226.

NOTE: Also check junction block connector C-214. If junction block connector C-214 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between combination meter connector C-02 and ETACS-ECU connector C-226 in good condition?

YES: Replace the combination meter. Check that the turn-signal lights illuminate normally.

NO: Repair the wiring harness. Check that the turn-signal lights illuminate normally.




STEP 46. Check combination meter connector C-02 for damage.

Q: Is combination meter connector C-02 in good condition?

YES: Go to Step 47.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. Check that the turn-signal lights illuminate normally.




STEP 47. Check the wiring harness between combination meter connector C-02 and ground.

Q: Is the wiring harness between combination meter connector C-02 and ground in good condition?

YES: Replace the combination meter. Check that the turn-signal lights illuminate normally.

NO: Repair the wiring harness. Check that the turn-signal lights illuminate normally.
