Part 2

Power Window: Power Windows does not Work by Operating the Front Passenger's or Rear Passenger's Sub Switches (Continued)

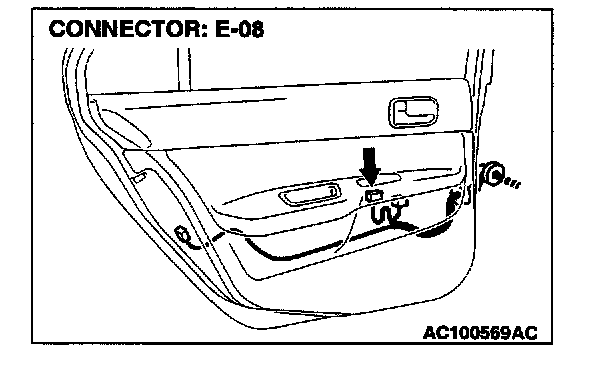

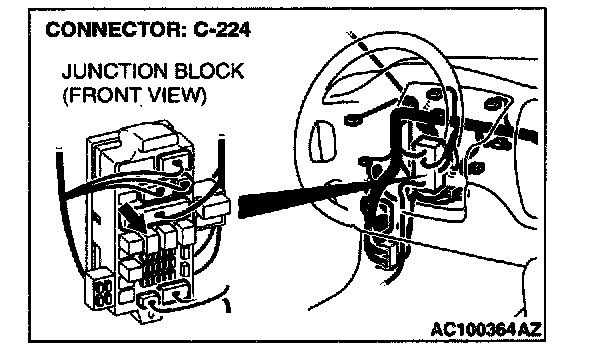

STEP 21. Check the wiring harness between power window relay connector C-224 and rear power window sub-switch (LH) connector E-08.

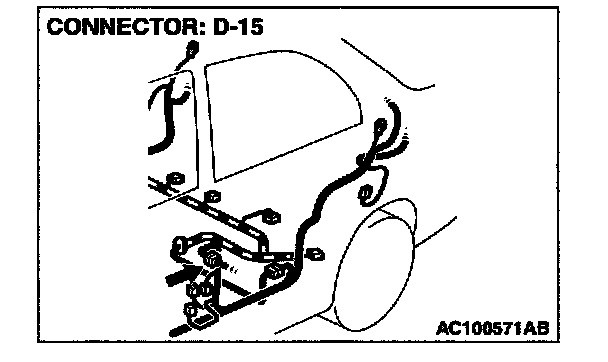

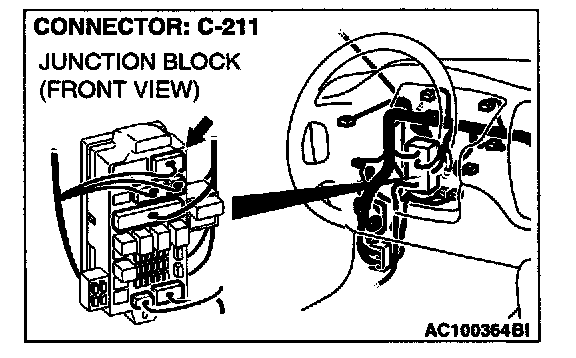

NOTE: Also check junction block connector C-211 and intermediate connectors C-127 and D-15. If junction block connector C-211, intermediate connector C-127 or D-15 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between power window relay connector C-224 and rear power window sub-switch (LH) connector E-08 in good condition?

YES: No action to be taken.

NO: Repair the wiring harness. When the rear power window sub-switch (LH) is operated, the rear power window (LH) should open or close normally.

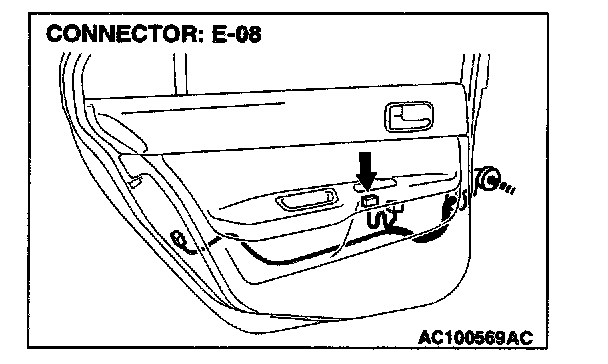

STEP 22. Check at rear power window sub-switch (LH) connector E-08 in order to check the ground circuit to the rear power window sub-switch (LH).
1. Disconnect rear power window sub-switch (LH) connector E-08, and measure at the harness side.
2. Measure the resistance value between terminal 4 and ground.
- The measured value should be 2 Ohm or less.

Q: Does the measured resistance value correspond with this range?

YES: Go to Step 25.

NO: Go to Step 23.







STEP 23. Check power window main switch connector E-05 and rear power window sub-switch (LH) connector E-08 for damage.

Q: Are power window main switch connector E-05 and rear power window sub-switch (LH) connector E-08 in good condition?

YES: Go to Step 24.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. When the rear power window sub-switch (LH) is operated, the rear power window (LH) should open or close normally.













STEP 24. Check the wiring harness between power window main switch connector E-05 and rear power window sub-switch (LH) connector E-08.

NOTE: Also check intermediate connectors, D-15, C-127 and C-17. If intermediate connector D-15, C-127 or C-17 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between power window main switch connector E-05 and rear power sub-switch (LH) connector E-08 in good condition?

YES: Replace the power window main switch. When the rear power window sub-switch (LH) is operated, the rear power window (LH) should open or close normally.

NO: Repair the wiring harness. When the rear power window sub-switch (LH) is operated, the rear power window (LH) should open or close normally.




STEP 25. Check at rear power window sub-switch (LH) connector E-08 in order to check the ground circuit to the rear power window sub-switch (LH).

1. Disconnect rear power window sub-switch (LH) connector E-08, and measure at the harness side.
2. Measure the resistance value between terminal 8 and ground.
- The measured value should be 2 Ohm or less.

Q: Does the measured resistance value correspond with this range?

YES: Go to Step 28.

NO: Go to Step 26.







STEP 26. Check power window main switch connector E-05 and rear power window sub-switch (LH) connector E-08 for damage.

Q: Are power window main switch connector E-05 and rear power window sub-switch (LH) connector E-08 in good condition?

YES: Go to Step 27.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. When the rear power window sub-switch (LH) is operated, the rear power window (LH) should open or close normally.













STEP 27. Check the wiring harness between power window main switch connector E-05 and rear power window sub-switch (LH) connector E-08.

NOTE: Also check intermediate connectors, D-15, C-127 and C-17. If intermediate connector D-15, C-127 or C-17 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between power window main switch connector E-05 and rear power sub-switch (LH) connector E-08 in good condition?

YES: Replace the power window main switch. When the rear power window sub-switch (LH) is operated, the rear power window (LH) should open or close normally.

NO: Repair the wiring harness. When the rear power window sub-switch (LH) is operated, the rear power window (LH) should open or close normally.

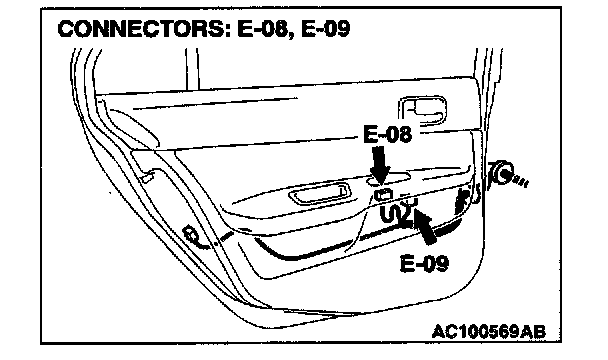

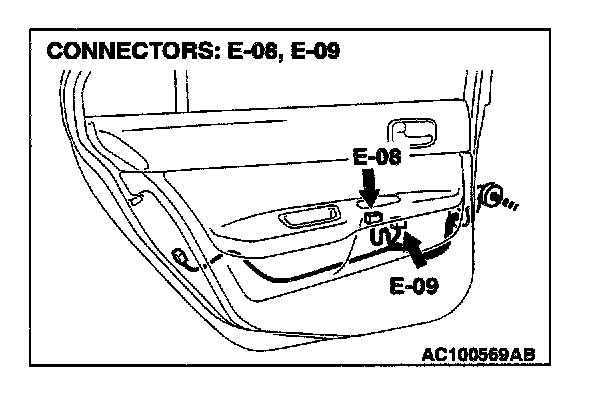

STEP 28. Check rear power window sub-switch (LH) connector E-08 and rear power window motor (LH) connector E-09 for damage.

Q: Are rear power window sub-switch (LH) connector E-08 and rear power window motor (LH) connector E-09 in good condition?

YES: Go to Step 29.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. When the rear power window sub-switch (LH) is operated, the rear power window (LH) should open or close normally.




STEP 29. Check the wiring harness between rear power window sub-switch (LH) connector E-08 and rear power window motor (LH) connector E-09.

Q: Is the wiring harness between rear power window main switch (LH) connector E-08 and rear power window motor (LH) connector E-09 in good condition?

YES: No action to be taken.

NO: Repair the wiring harness. When the rear power window sub-switch (LH) is operated, the rear power window (LH) should open or close normally.







STEP 30. Check the rear power window sub-switch (RH) for continuity.

1. Remove the rear power window sub-switch (RH). Refer to Door-Door Trim and Waterproof Film.
2. Check continuity when the rear power window sub-switch (RH) is operated to "UP" or "DOWN" position.

Q: Is the rear power window sub-switch (RH) normal?

YES: Go to Step 31.

NO: Replace the rear power window sub-switch (RH). When the rear power window sub-switch (RH) is operated, the rear power window (RH) should open or close normally.







STEP 31. Check the rear power window motor (RH).

1. Remove the rear power regulator assembly (RH). Refer to Door-Door Glass and Regulator.
2. Connect a battery to the motor terminal, and check that the motor runs freely.

Q: Is the rear power window motor (RH) normal?

YES: Go to Step 32.

NO: Replace the rear power regulator assembly (RH). When the rear power window sub-switch (RH) is operated, the rear power window (RH) should open or close normally.

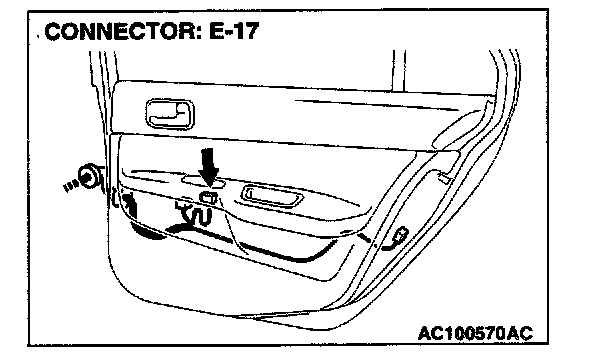

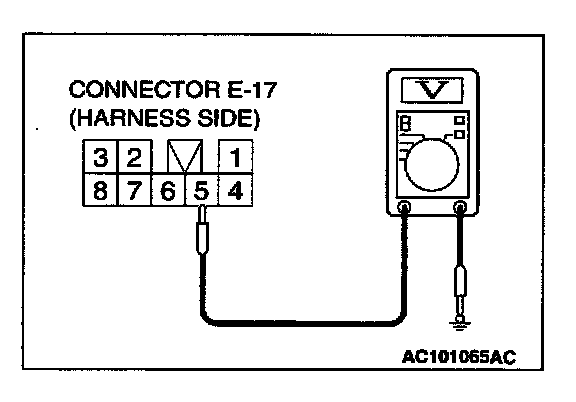

STEP 32. Check at rear power window sub-switch (RH) connector E-17 in order to check the power window relay circuit of the power supply to the rear power window sub-switch (RH).

1. Disconnect rear power window sub-switch (RH) connector E-17, and measure at the harness side.
2. Measure the voltage between terminal 5 and ground.
- The measured value should be approximately 12 volts (battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES: Go to Step 35.

NO: Go to Step 33.







STEP 33. Check power window relay connector C-224 and rear power window sub-switch (RH) connector E-17 for damage.

Q: Are power window relay connector C-224 and rear power window sub-switch (RH) connector E-17 in good condition?

YES: Go to Step 34.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. When the rear power window sub-switch (RH) is operated, the rear power window (RH) should open or close normally.

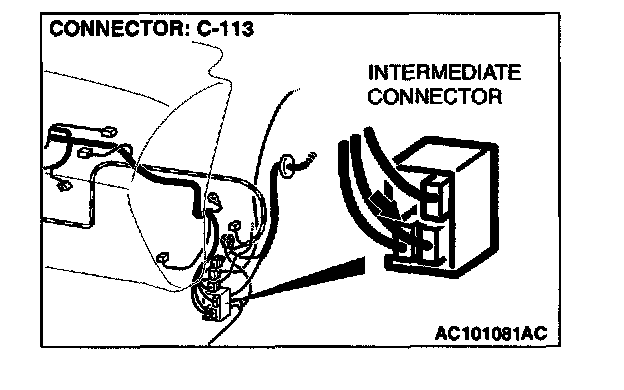

STEP 34. Check the wiring harness between power window relay connector C-224 and rear power window sub-switch (RH) connector E-17.

NOTE: Also check junction block connector C-211 and intermediate connectors C-113 and D-04. If junction block connector C-211, intermediate connector C-113 or D-04 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between power window relay connector C-224 and rear power window sub-switch (RH) connector E-17 in good condition?

YES: No action to be taken.

NO: Repair the wiring harness. When the rear power window sub-switch (RH) is operated, the rear power window (RH) should open or close normally.

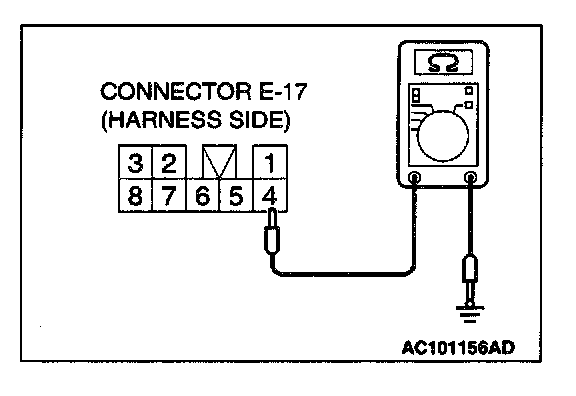

STEP 35. Check at rear power window sub-switch (RH) connector E-17 in order to check the ground circuit to the rear power window sub-switch (RH).

1. Disconnect rear power window sub-switch (RH) connector E-17, and measure at the harness side.
2. Measure the resistance value between terminal 4 and ground.
- The measured value should be 2 Ohm or less.

Q: Does the measured resistance value correspond with this range?

YES: Go to Step 38.

NO: Go to Step 36.

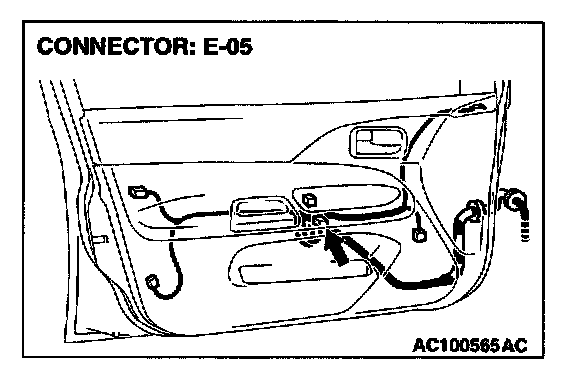

STEP 36. Check power window main switch connector E-05 and rear power window sub-switch (RH) connector E-17 for damage.

Q: Are power window main switch connector E-05 and rear power window sub-switch (RH) connector E-17 in good condition?

YES: Go to Step 37.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. When the rear power window sub-switch (RH) is operated, the rear power window (RH) should open or close normally.
















STEP 37. Check the wiring harness between power window main switch connector E-05 and rear power window sub-switch (RH) connector E-17.

NOTE: Also check intermediate connectors, D-17, C-113 and D-04. If intermediate connector C-17, C-113 or D-04 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between power window main switch connector E-05 and rear power sub-switch (RH) connector E-17 in good condition?

YES: Replace the power window main switch. When the rear power window sub-switch (RH) is operated, the rear power window (RH) should open or close normally.

NO: Repair the wiring harness. When the rear power window sub-switch (RH) is operated, the rear power window (RH) should open or close normally.




STEP 38. Check at rear power window sub-switch (RH) connector E-17 in order to check the ground circuit to the rear power window sub-switch (RH).

1. Disconnect rear power window sub-switch (RH) connector E-17, and measure at the harness side.

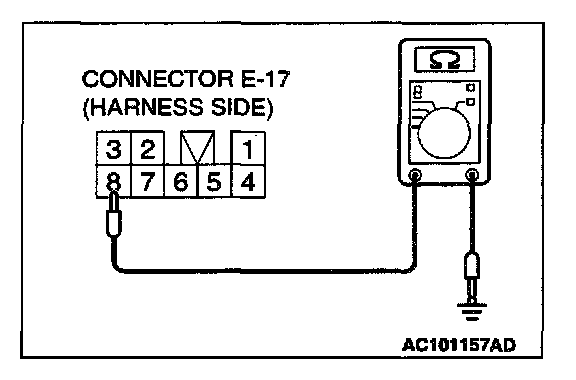

2. Measure the resistance value between terminal 8 and ground.
- The measured value should be 2 Ohm or less.

Q: Does the measured resistance value correspond with this range?

YES: Go to Step 41.

NO: Go to Step 39.







STEP 39. Check power window main switch connector E-05 and rear power window sub-switch (RH) connector E-17
for damage.

Q: Are power window main switch connector E-05 and rear power window sub-switch (RH) connector E-17 in good condition?

YES: Go to Step 40.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. When the rear power window sub-switch (RH) is operated, the rear power window (RH) should open or close normally.
















STEP 40. Check the wiring harness between power window main switch connector E-05 and rear power window sub-switch (RH) connector E-17.

NOTE: Also check intermediate connectors, D-17, C-113 and D-04. If intermediate connector C-17, C-113 or D-04 is damaged, repair or replace the connector as described in Harness Connector Inspection.

Q: Is the wiring harness between power window main switch connector E-05 and rear power sub-switch (RH) connector E-17 in good condition?

YES: Replace the power window main switch. When the rear power window sub-switch (RH) is operated, the rear power window (RH) should open or close normally.

NO: Repair the wiring harness. When the rear power window sub-switch (RH) is operated, the rear power window (RH) should open or close normally.




STEP 41. Check rear power window sub-switch (RH) connector E-17 and rear power window motor (RH) connector E-16 for damage.

Q: Are rear power window sub-switch (RH) connector E-17 and rear power window motor (RH) connector E-16 in good condition?

YES: Go to Step 42.

NO: Repair or replace the connector. Refer to Harness Connector Inspection. When the rear power window sub-switch (RH) is operated, the rear power window (RH) should open or close normally.




STEP 42. Check the wiring harness between rear power window sub-switch (RH) connector E-17 and rear power window motor (RH) connector E-16.

Q: Is the wiring harness between rear power window main switch (RH) connector E-17 and rear power window motor (RH) connector E-16 in good condition?

YES: No action to be taken.

NO: Repair the wiring harness. When the rear power window sub-switch (RH) is operated, the rear power window (RH) should open or close normally.
