Service Data Check

SERVICE DATA CHECK
1. Use the scan tool and the SWS monitor kit to check "Service Data." This "Service Data" check is applicable for signals, which are transmitted and received through the SWS communication line. For input signals, which are not compatible with the SWS monitor kit, refer to the Pulse Check procedure (by using the scan tool or voltmeter).
2. The following input signals can be checked by using the scan tool and the SWS monitor kit.

NOTE: If a problem is found in the "Service Data" check, refer to the Problems during Input Signal. Check .

Part 1:

Part 2:

- COLUMN ECU (column switch)

Part 1:

Part 2:

- ETACS ECU

- FRONT ECU

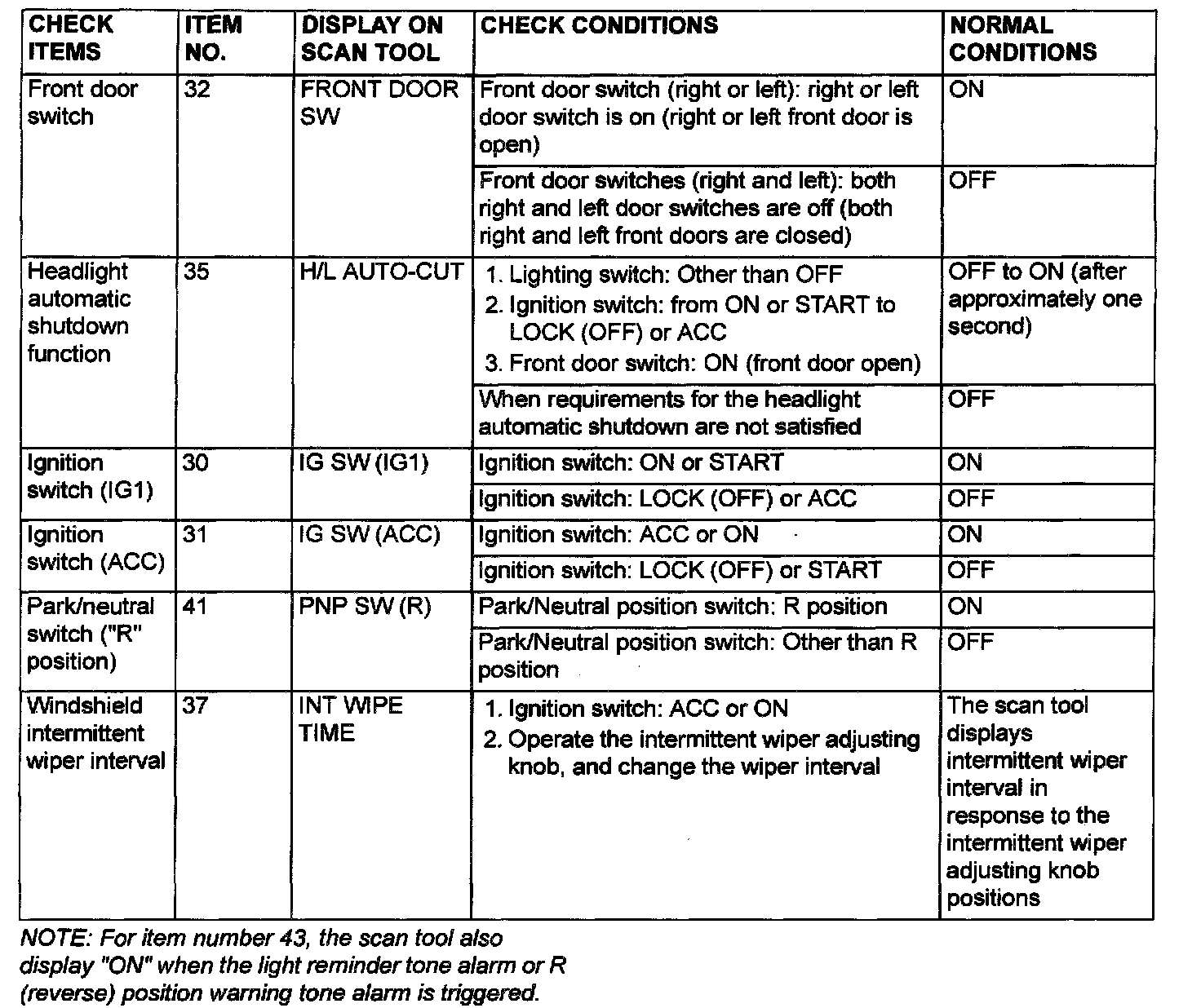

The table shows the service data and their normal condition, which are displayed during the "FUNCTION DIAGNOSIS." The row "Normal conditions" shows values, which are shown when each operation is made.

Part 1:

Part 2:

- WIPER

Part 1:

Part 2:

- REAR WIPER

Part 1:

Part 2:

- LIGHTING

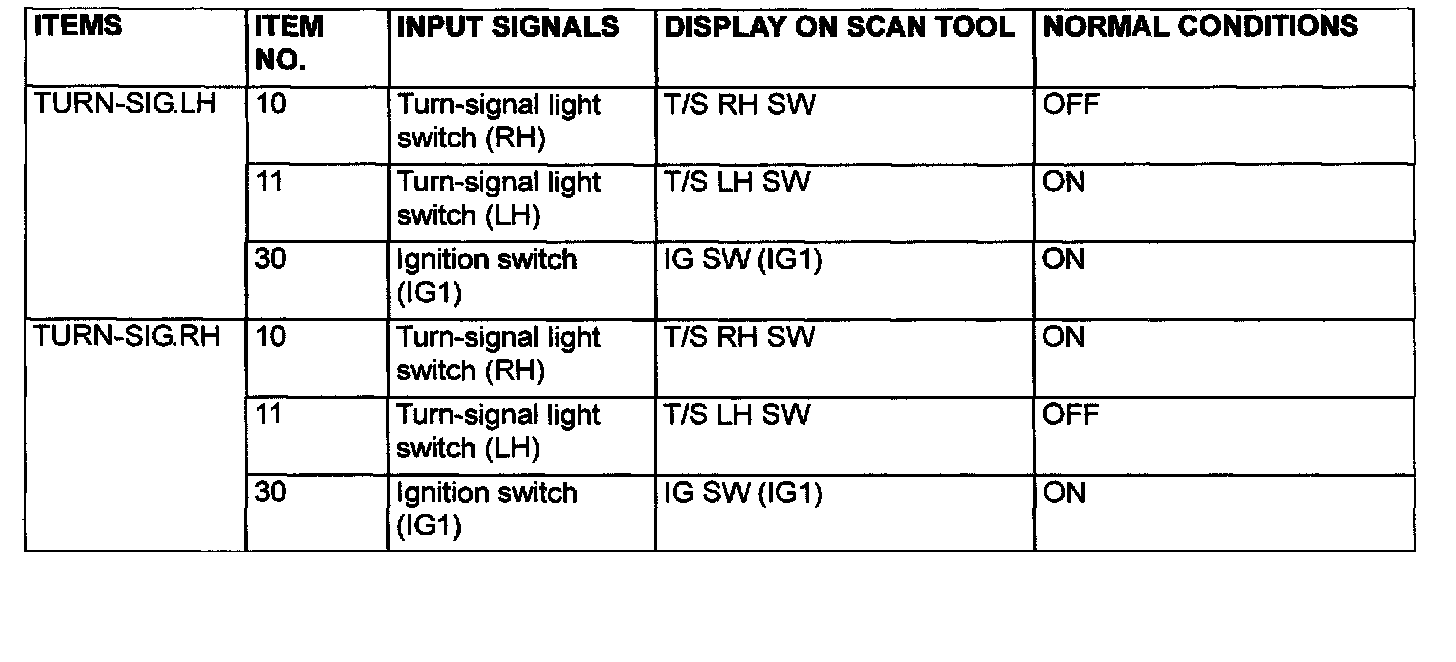

- TURN SIGNAL

- BUZZER
