Front

REPLACEMENT

Required Special Tools:
^ MB990767: End Yoke Holder
^ MB991618: Hub Bolt Remover

1. Remove the caliper assembly and suspend it with wire so that it does not fall.
2. Remove the brake disc.

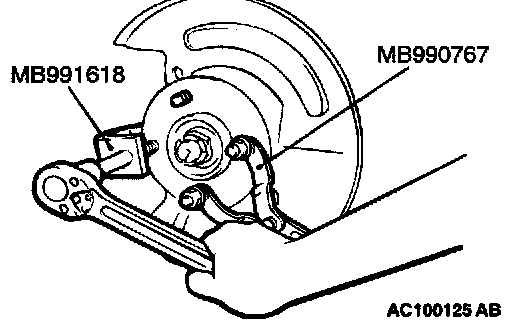

3. Use special tools MB990767 and MB991618 to remove the hub bolts.





4. Install the plain washer to the new hub bolt, and install the bolt with a nut.
