Hose/Line HVAC: Service and Repair

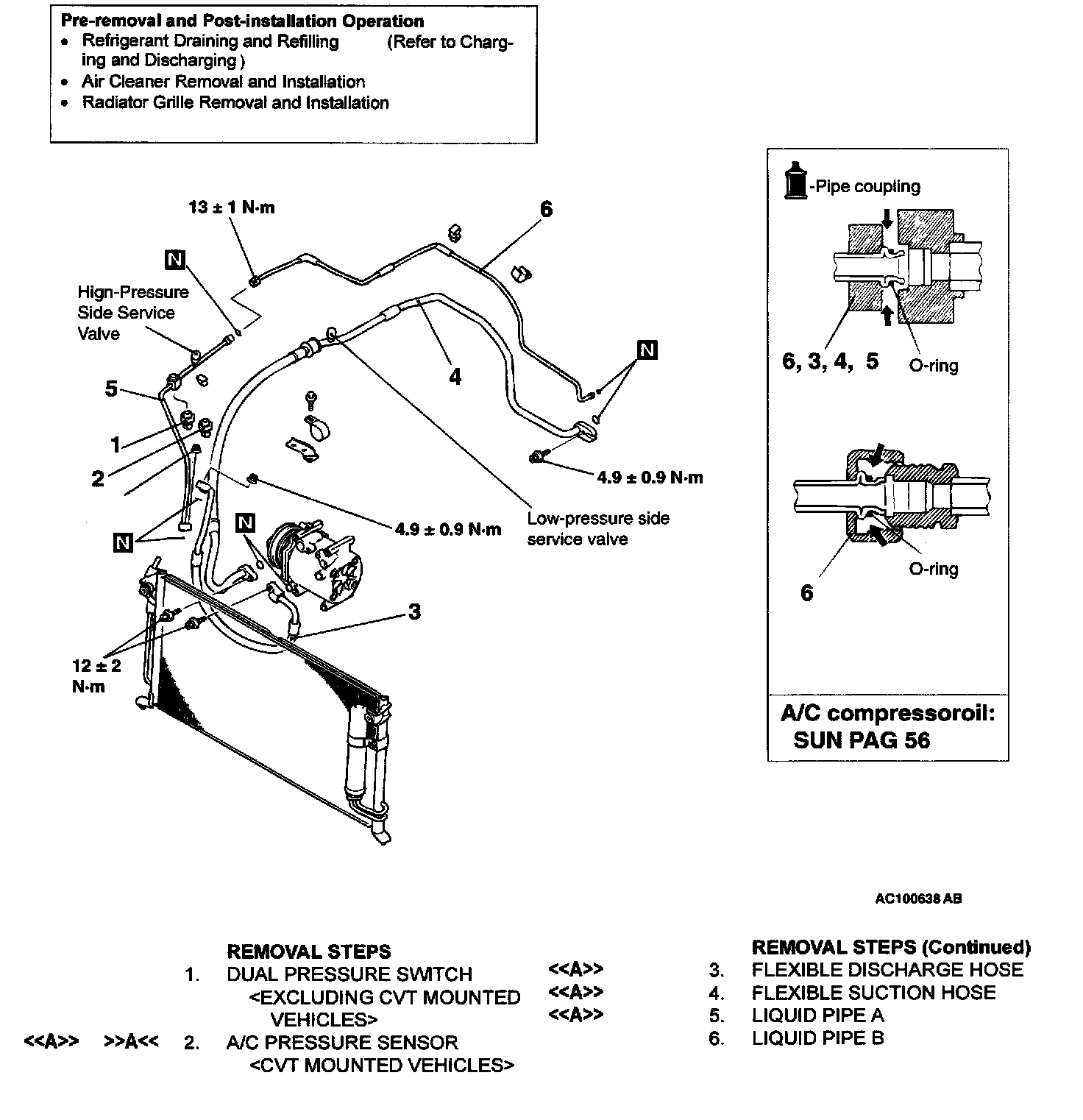

REFRIGERANT LINE
REMOVAL SERVICE POINT
<> HOSE/PIPE DISCONNECTION
CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.
To prevent the entry of other foreign bodies, plug the condenser, compressor, and expansion valve nipples.
INSTALLATION SERVICE POINT
>>A<< SUCTION HOSE INSTALLATION
When replacing the suction hose, refill them with a specified amount of compressor oil, and then install them.
Compressor oil: SUN PAG 56
Quantity:
- Suction hose: 10 cu.cm (0.3 floz)
