Front Turn-Signal Light

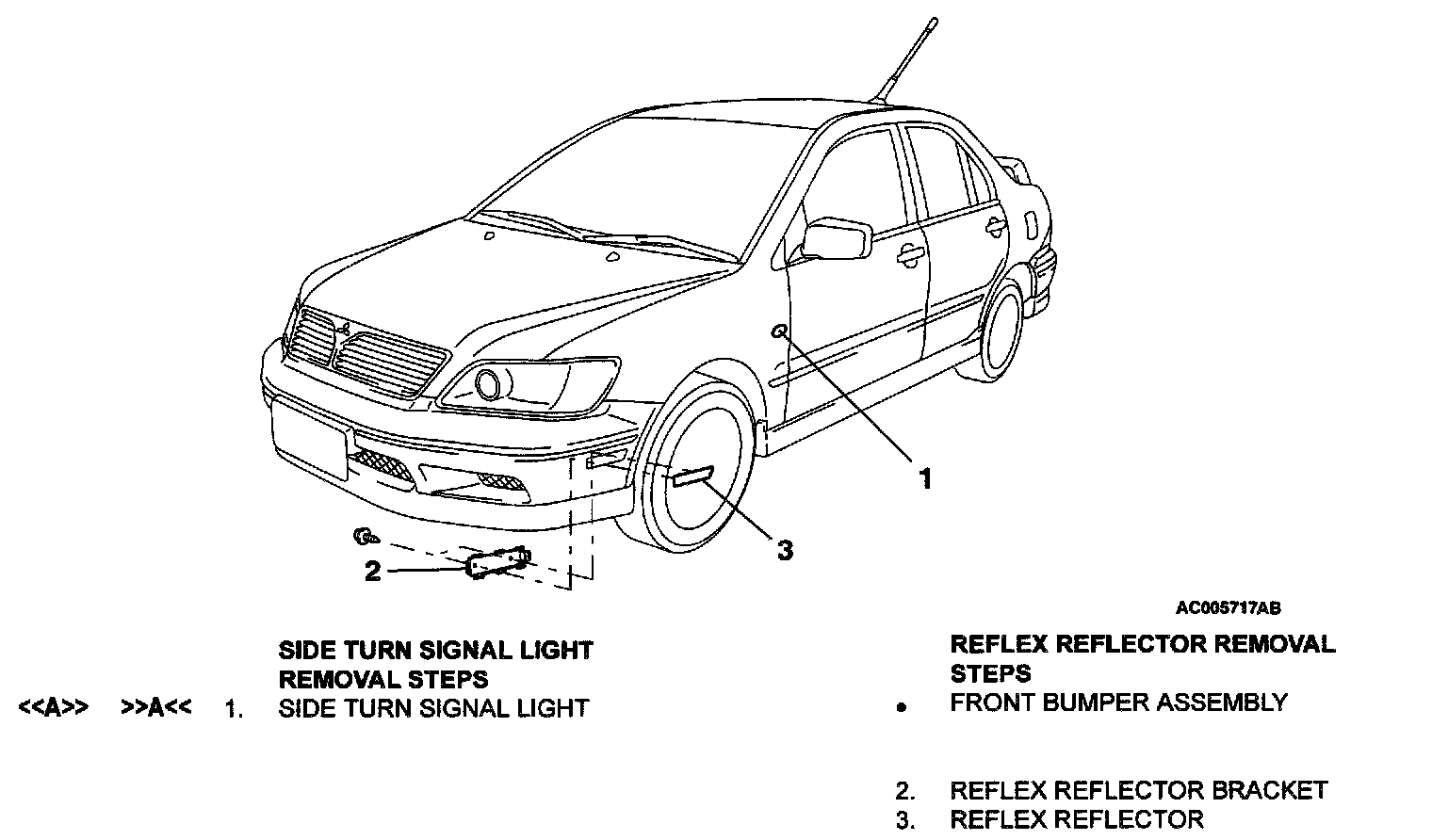

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




<> SIDE TURN SIGNAL LIGHT REMOVAL
Use special tool MB990784, etc. to press and deflect the hook to vehicle front from the fender, and unhook the pawls to remove the side turn-signal light.

INSTALLATION SERVICE POINT




>>A<< SIDE TURN SIGNAL LIGHT INSTALLATION
Insert the pawls into the fender panel and install the side turn-signal light.
