Center Mounted Brake Lamp: Service and Repair

HIGH-MOUNTED STOPLIGHT

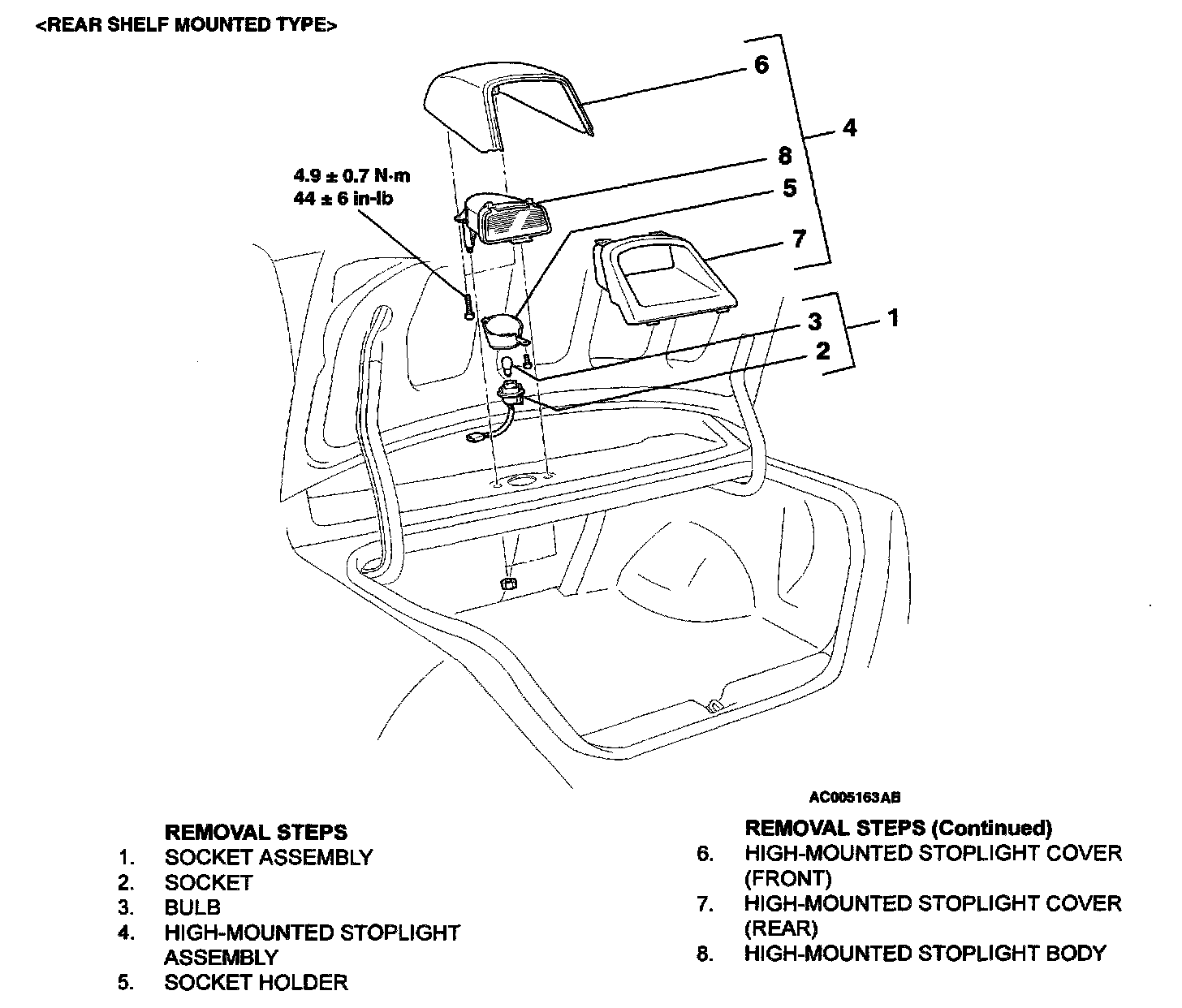

Rear Shelf Mounted Type:

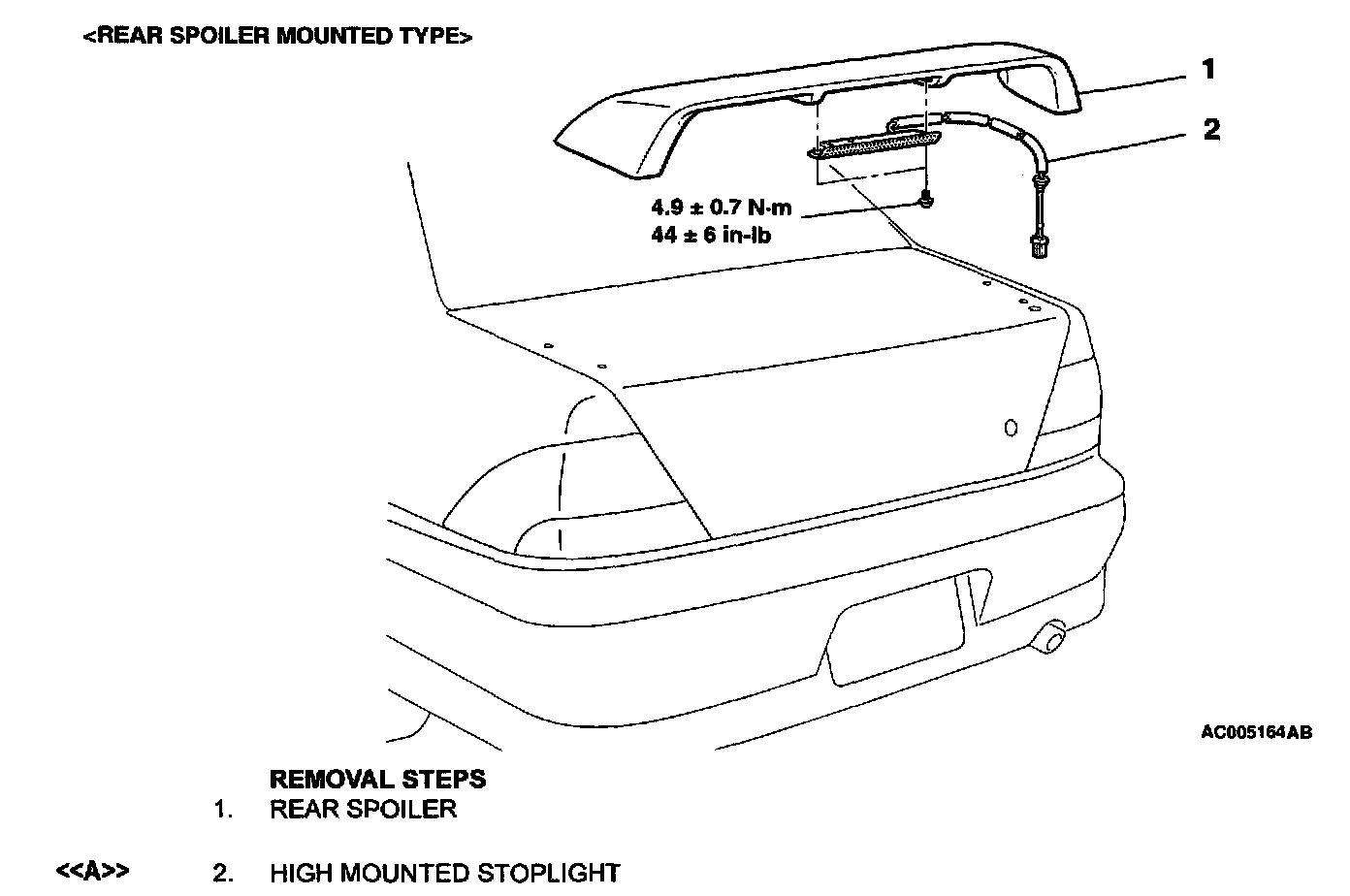

Rear Spoiler Mounted Type:

REMOVAL SERVICE POINT

<> HIGH-MOUNTED STOP LIGHT REMOVAL

Use the following steps to easily route high-mounted stop light harness in the event of installation:

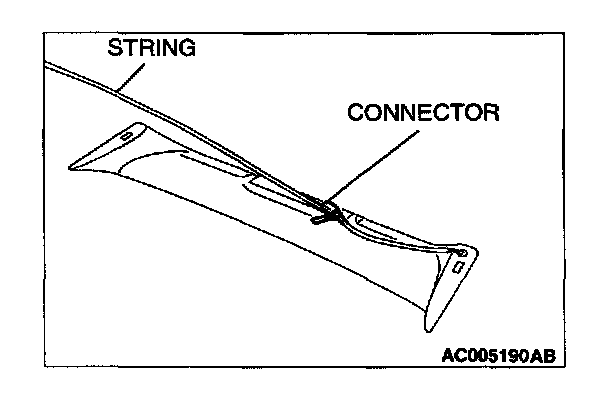

1. Tie a string on the high-mounted stop light harness (at the connector side).

CAUTION: Ensure that the string is tightly tied.

2. Carefully pull out the high-mounted stop light.
