Combination Meter Removal and Installation/Disassembly and Assembly

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in Air Bag Module and Clock Spring.

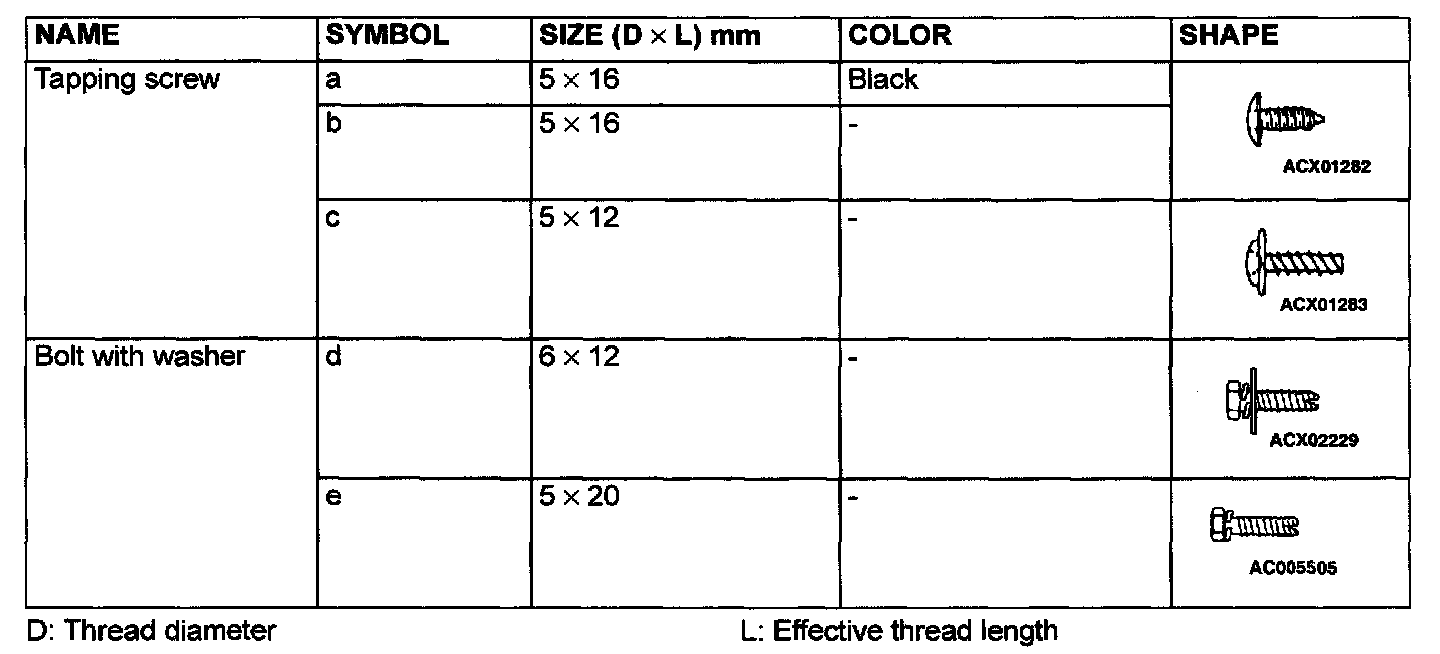

Fasteners:

Instrument Panel:

The bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."

Clip And Claw Position:

REMOVAL SERVICE POINT




<> SRS FRONT PASSENGER'S AIR BAG MODULE REMOVAL
Insert the flat tipped screwdriver into the position shown in the illustration and pull up the screwdriver to disengage the claws for removal of the front passenger's air bag module.

CAUTION:
1. Do not damage the claws of the hinge when removing the front passenger's air bag module.
2. Store the removed front passenger's air bag module facing the deployed side upward in a clean and dry place.

DISASSEMBLY AND ASSEMBLY
