Home >> Mitsubishi >> 2002 >> Lancer O-Z Rally Edition L4-2.0L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Service and Repair >> Disassembly and Assembly

Disassembly and Assembly

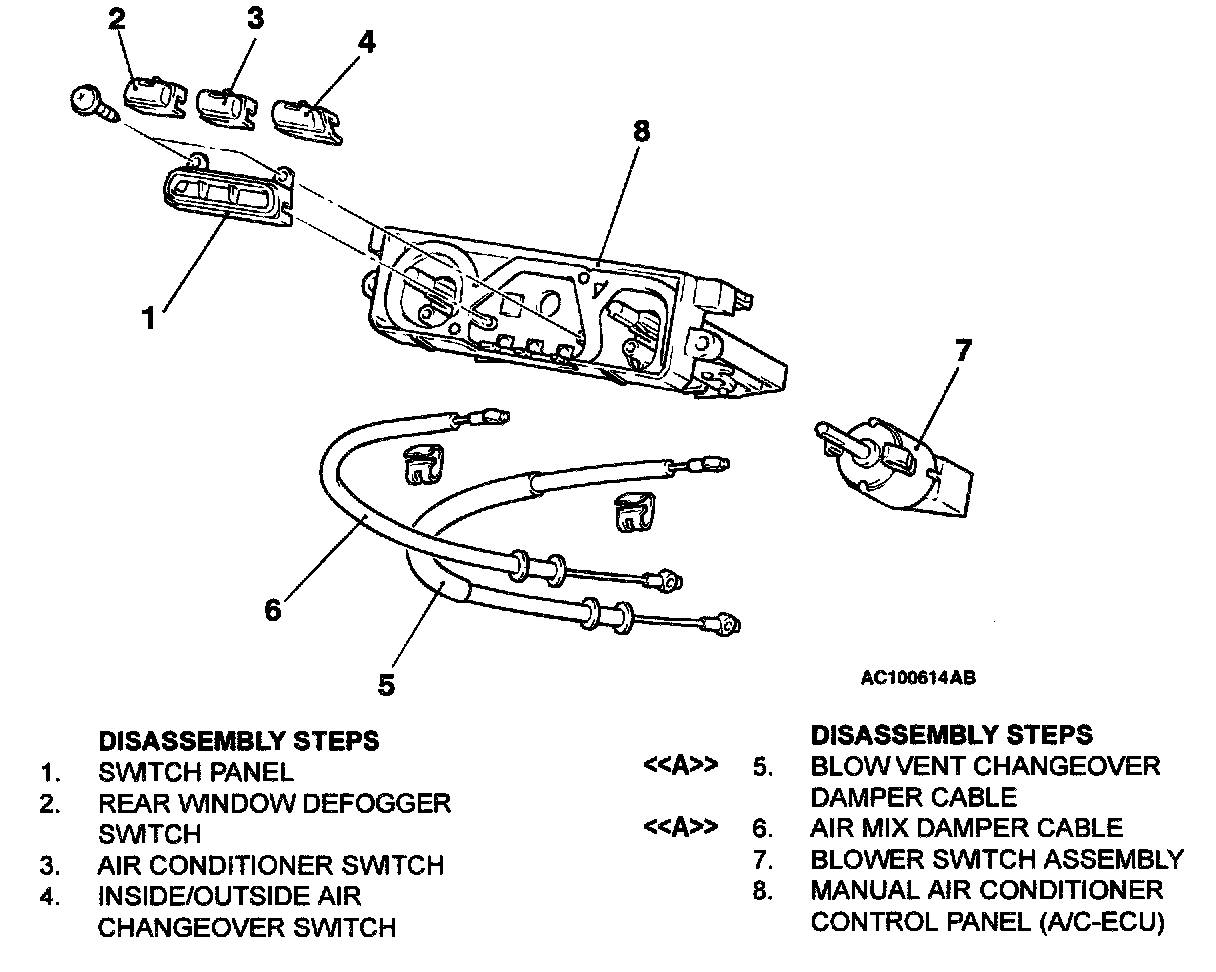

HEATER CONTROL ASSEMBLY DISASSEMBLY AND ASSEMBLY






DISASSEMBLY SERVICE POINTS




<> BLOW VENT CHANGEOVER DAMPER CABLE AND AIR MIX DAMPER CABLE REMOVAL

Insert a flat-tipped screw driver into the clip through the inside of the control base and prize out the clip claw to disconnect the cables
