Condenser Fan Motor: Service and Repair

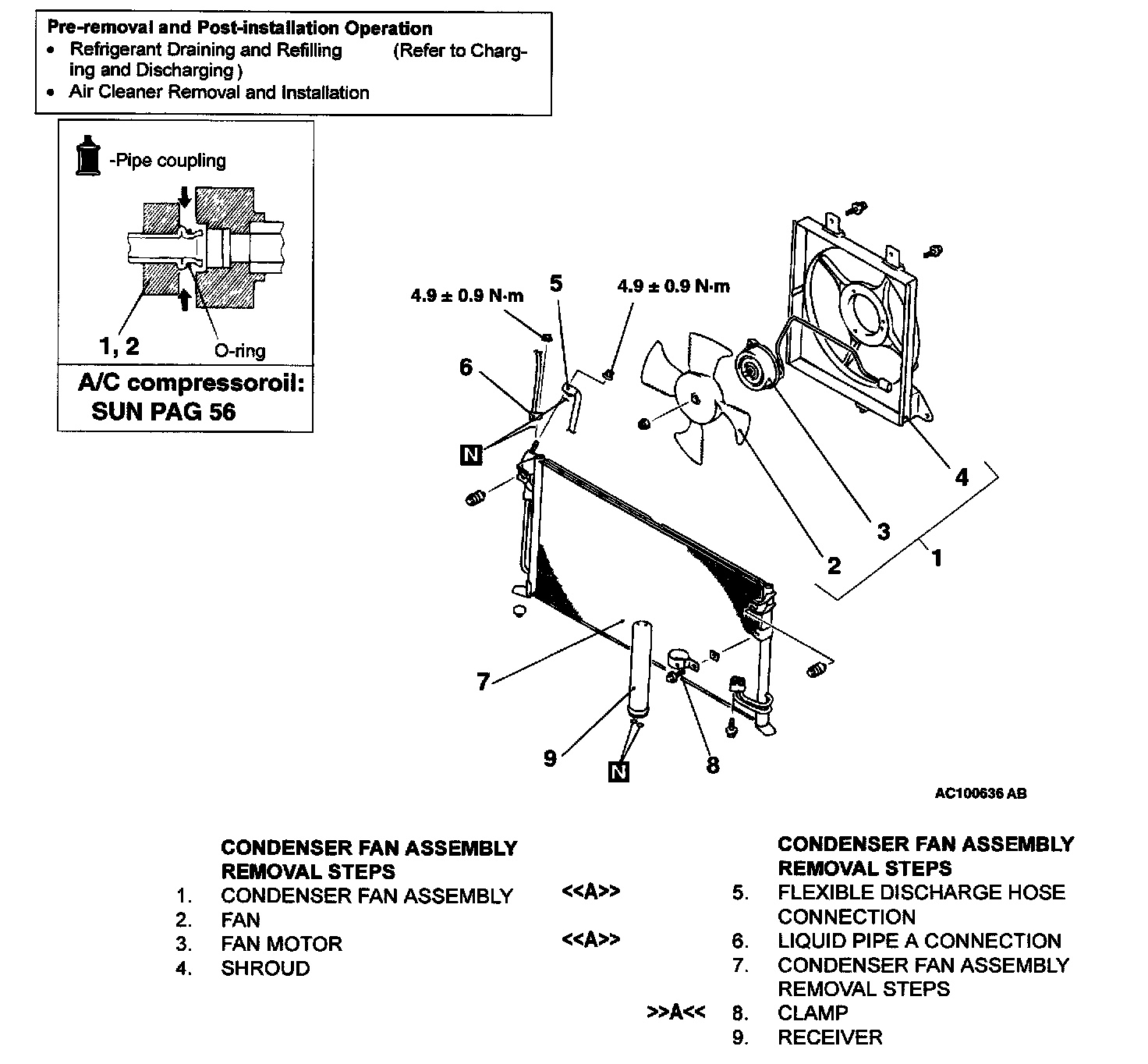

CONDENSER AND CONDENSER FAN MOTOR
REMOVAL SERVICE POINT
<> FLEXIBLE SUCTION HOSE AND LIQUID PIPE A DISCONNECTION
CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.
To prevent the entry of dust or other foreign bodies, plug the dismantled hose and condenser assembly nipples.
INSTALLATION SERVICE POINT
>>A<< CONDENSER INSTALLATION
When replacing the condenser, refill it with a specified amount of compressor oil and install it. (to the vehicle).
- Compressor oil: SUN PAG 56
- Quantity: 15 cu.cm (0.5 floz)
