Air Door Actuator / Motor: Testing and Inspection

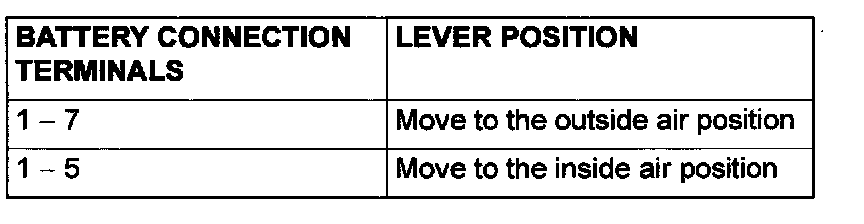

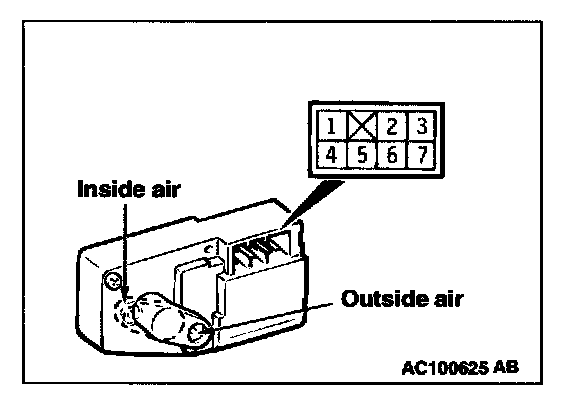

INSIDE/OUTSIDE AIR CHANGEOVER DAMPER MOTOR CHECK









CAUTION: Cut off the battery voltage when the damper is in the inside/outside air position.
