Exhaust Pipe: Description and Operation

GENERAL DESCRIPTION
The exhaust pipe is divided into three parts

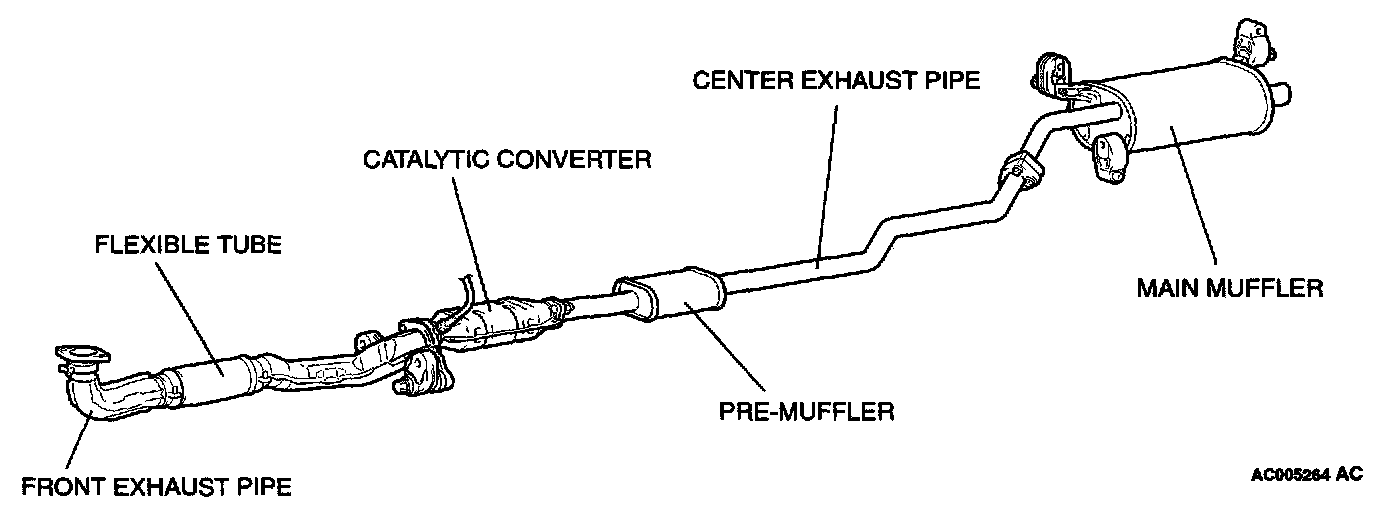

Construction Diagram:

EXHAUST PIPE
The exhaust system consists of 3 separate sections: front exhaust pipe, center exhaust pipe, and main muffler. It has the following features:
- Use of large pre-muffler to reduce exhaust noise.
- Straight layout of exhaust piping to reduce vibration and exhaust pressure in exhaust system.
- Installation of flexible tube on the front pipe to reduce vibration at idle.
- The adoption of fewer more environmentally friendly rubber hanger to reduce vibration from exhaust system.
- All stainless exhaust piping to reduce corrosion and heat.
- Installation of thermal insulating cover and materials on front pipe has improved emission control performance.
