Generator and Ignition System

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT
[[A]]CRANKSHAFT BOLT REMOVAL





Lock the flywheel or drive plate in position using the special tool MD998781 shown in the illustration, then loosen the crankshaft bolt.

INSTALLATION SERVICE POINTS
]]A[[ CAM POSITION SENSOR SUPPORT INSTALLATION





1. Clean the sealant application surfaces of cam position sensor support and cylinder head.
2. Apply a 3 mm (0.12 inch) diameter bead of sealant Mitsubishi Genuine Parts number MD970389, or equivalent to the cam position sensor support.
3. After installation, wait at least one hour. Never start the engine or let engine oil touch the adhesion surface during that time.

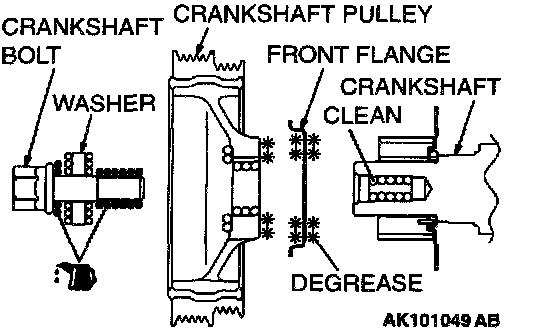

]]B[[ CRANKSHAFT BOLT INSTALLATION





1. Lock the flywheel or drive plate in position using the special tool MD998781 shown in the illustration.





2. Clean the bolt hole in crankshaft bolt and crankshaft pulley's seating surface.
3. Degrease the cleaned seating surface of the crankshaft pulley.
4. Install the crankshaft pulley.
5. Apply oil to the threads of crankshaft bolt and the outer surface of washer.
6. Tighten the crankshaft bolt to the specified torque.
Tightening torque: 182 ± 4 Nm (134 ± 3 ft. lbs.)
