Rear Crankshaft Main Bearing Seal: Service and Repair

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT
[[A]] FLYWHEEL BOLT [M/T] DRIVE PLATE BOLT [A/T] REMOVAL

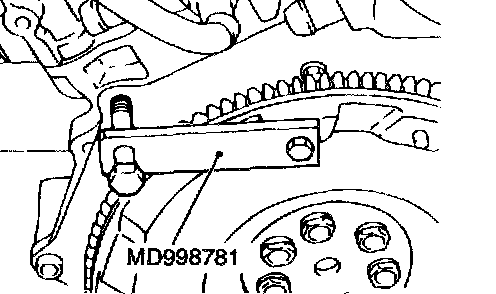

Use the special tool MD998781 to secure the flywheel or drive plate, and remove the bolts.

INSTALLATION SERVICE POINTS
]]A[[ CRANKSHAFT REAR OIL SEAL INSTALLATION
1. Apply a small amount of engine oil to the entire circumference of the oil seal lip.

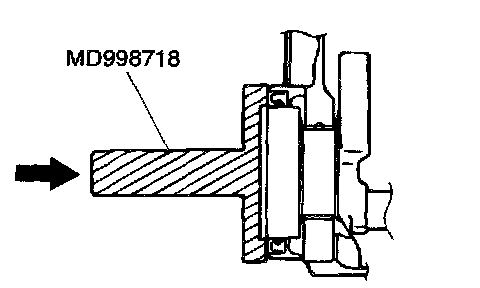

2. Use special tool MD998718 to tap in the oil seal as shown in the illustration.

]]B[[ DRIVE PLATE BOLT [A/T] FLYWHEEL BOLT [M/T] INSTALLATION





Use the special tool MD998781 to hold the flywheel or drive plate in the same manner as removal. Then install the bolts.
