Harmonic Balancer - Crankshaft Pulley: Service and Repair

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT
[[A]] CRANKSHAFT PULLEY REMOVAL

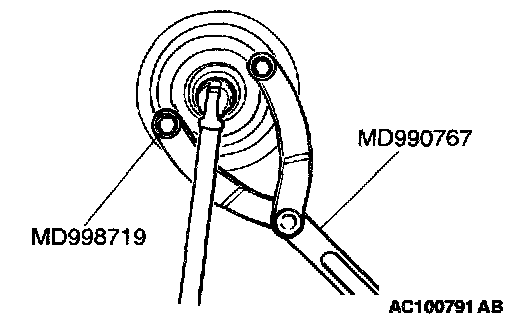

Use special tools MD998719 and MB990767 to remove the crankshaft pulley.

INSTALLATION SERVICE POINT
]]A[[ CRANKSHAFT PULLEY INSTALLATION
1. Clean the tapped holes on crankshaft to eliminate oil fouled, etc.
2. Apply engine oil at the contact surfaces and threads on crankshaft bolts.
3. Use the same special tool as in the removal procedure to retain crankshaft pulley, and tighten crankshaft bolts to the specified torque.
