Heater Core: Service and Repair

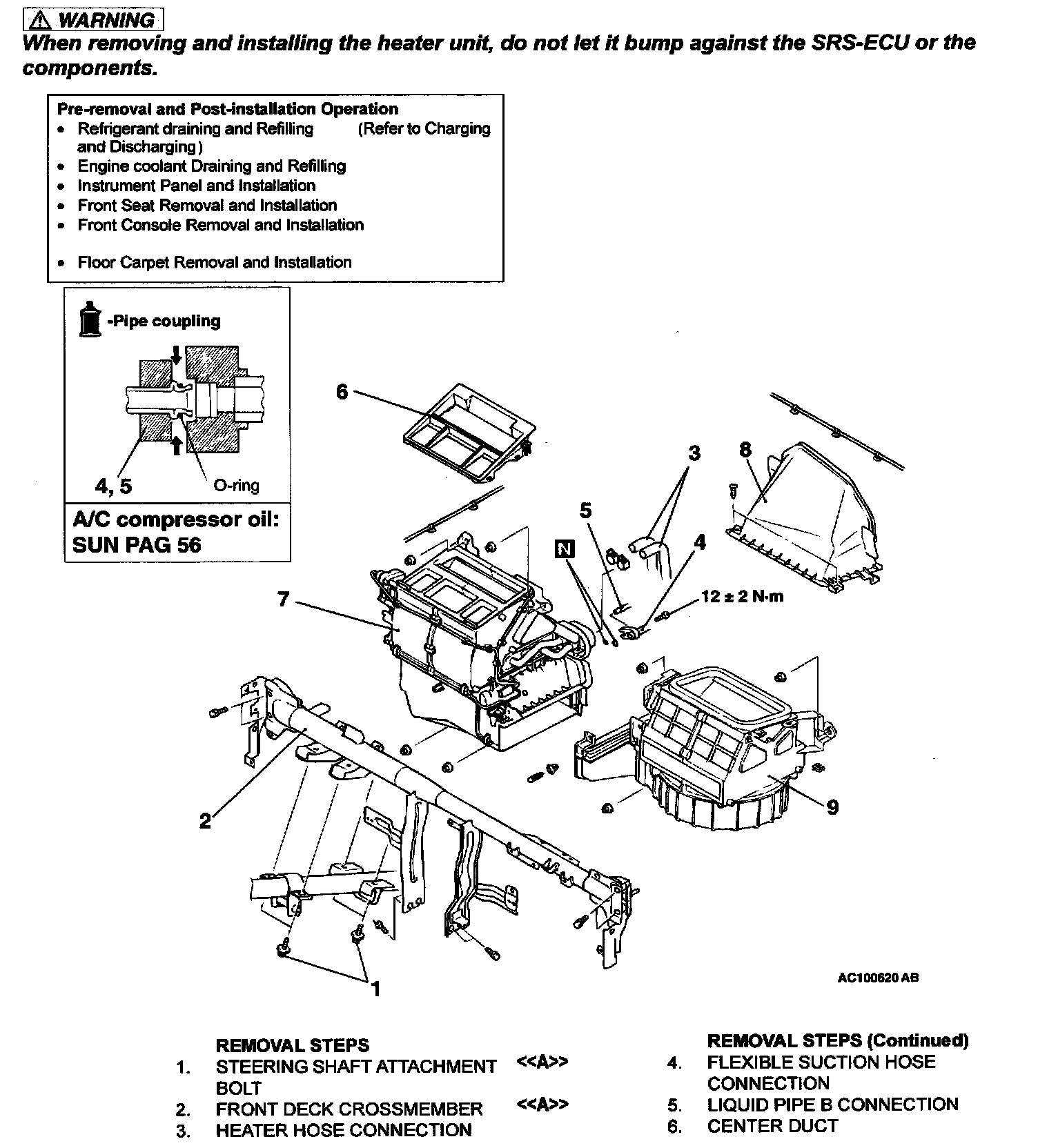

REMOVAL SERVICE POINT
<> FLEXIBLE SUCTION HOSE AND LIQUID PIPE B DISCONNECTION
CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to hose and nipples.
To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.
