Dash Panel Harness - C Connectors

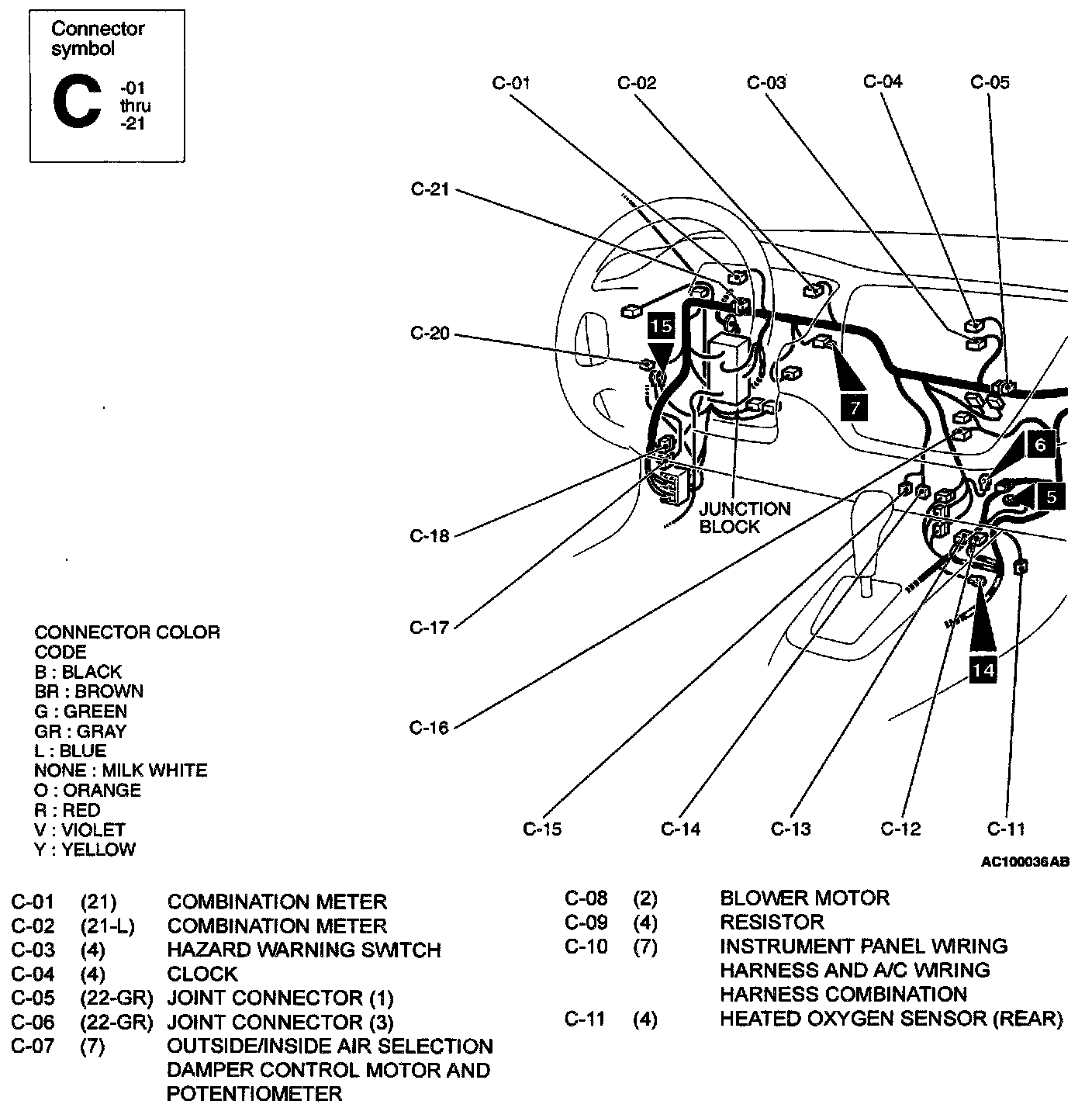

Dash Panel - C Connector [01 (21) Thru 11 (4)]:

Dash Panel - C Connector [12 (20-Y) Thru 21 (22-B)]:

Dash Panel - C Connector [101 (22-B) Thru 118 (26-GR)]:

Dash Panel - C Connector [119 (16-Y) Thru 132 (11-GR)]:

Dash Panel - C Connector [201 (2) Thru 213 (5)]:

Dash Panel - C Connector [214 (28) Thru 228 (24-GR)]:
